固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TSL0808RA-101KR80-PFFIXED IND 100UH 800MA 250MOHM TH TDK Corporation |
0 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 100 µH | ±10% | 800 mA | 800mA | Unshielded | 250mOhm Max | 20 @ 796kHz | 4.4MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.346" (8.80mm) |
|
|
TSL0808RA-100K2R6-PFFIXED IND 10UH 2.6A 31 MOHM TH TDK Corporation |
0 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 10 µH | ±10% | 2.6 A | 2.6A | Unshielded | 31mOhm Max | 20 @ 2.52MHz | 17MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.346" (8.80mm) |
|
TSL0709RA-6R8M2R3-PFFIXED IND 6.8UH 2.3A 28 MOHM TH TDK Corporation |
0 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 6.8 µH | ±20% | 2.3 A | 2.5A | Unshielded | 28mOhm Max | 10 @ 7.96MHz | 24MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.303" Dia (7.70mm) | 0.378" (9.60mm) |
|
|
TSL0709RA-681KR25-PFFIXED IND 680UH 250MA 2.3 OHM TH TDK Corporation |
0 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 680 µH | ±10% | 250 mA | 250mA | Unshielded | 2.3Ohm Max | 20 @ 796kHz | 1.7MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.303" Dia (7.70mm) | 0.378" (9.60mm) |
|
|
TSL0709RA-680KR73-PFFIXED IND 68UH 730MA 280 MOHM TH TDK Corporation |
0 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 68 µH | ±10% | 730 mA | 790mA | Unshielded | 280mOhm Max | 20 @ 2.52MHz | 6.2MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.303" Dia (7.70mm) | 0.378" (9.60mm) |
|
|
TSL0709RA-4R7M2R6-PFFIXED IND 4.7UH 2.6A 22 MOHM TH TDK Corporation |
0 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Tape & Box (TB) | Obsolete | - | - | 4.7 µH | ±20% | 2.6 A | 3.1A | Unshielded | 22mOhm Max | 10 @ 7.96MHz | 29MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.303" Dia (7.70mm) | 0.378" (9.60mm) |
|
|
TSL0709RA-471KR30-PFFIXED IND 470UH 300MA 1.7 OHM TH TDK Corporation |
0 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 470 µH | ±10% | 300 mA | 300mA | Unshielded | 1.7Ohm Max | 20 @ 796kHz | 2MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.303" Dia (7.70mm) | 0.378" (9.60mm) |
|
|
TSL0709RA-470KR94-PFFIXED IND 47UH 940MA 170 MOHM TH TDK Corporation |
0 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 47 µH | ±10% | 940 mA | 960mA | Unshielded | 170mOhm Max | 20 @ 2.52MHz | 7.6MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.303" Dia (7.70mm) | 0.378" (9.60mm) |
|
|

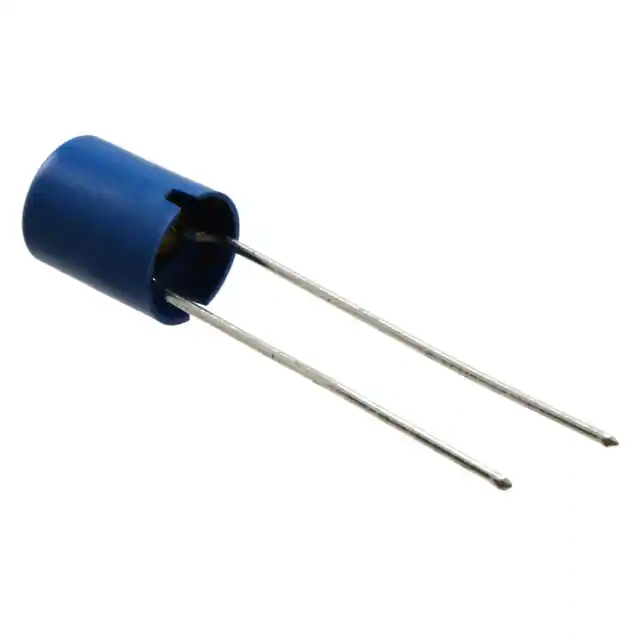

TSL0709RA-3R3M2R9-PFFIXED IND 3.3UH 2.9A 18 MOHM TH TDK Corporation |
0 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 3.3 µH | ±20% | 2.9 A | 3.6A | Unshielded | 18mOhm Max | 10 @ 7.96MHz | 36MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.303" Dia (7.70mm) | 0.378" (9.60mm) |
|
|
TSL0709RA-331KR36-PFFIXED IND 330UH 360MA 1.1 OHM TH TDK Corporation |
0 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 330 µH | ±10% | 360 mA | 360mA | Unshielded | 1.1Ohm Max | 20 @ 796kHz | 2.5MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.303" Dia (7.70mm) | 0.378" (9.60mm) |
