固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

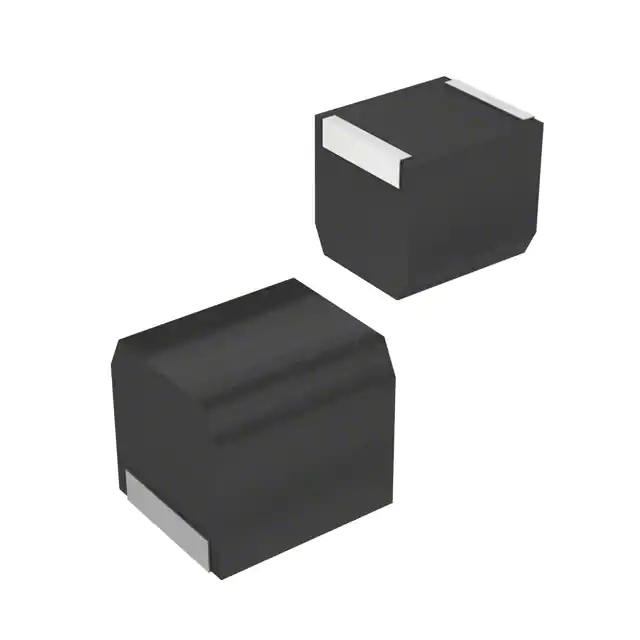

NLC565050T-331K-PFFIXED IND 330UH 140MA 4.9OHM SMD TDK Corporation |
0 |
|
规格书 |
NLC | 2220 (5650 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 330 µH | ±10% | 140 mA | - | Unshielded | 4.9Ohm Max | 20 @ 796kHz | 3.2MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
NLC565050T-2R7K-PFFIXED IND 2.7UH 1.2A 70 MOHM SMD TDK Corporation |
0 |
|
规格书 |
NLC | 2220 (5650 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.7 µH | ±10% | 1.2 A | - | Unshielded | 70mOhm Max | 10 @ 7.96MHz | 37MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
NLC565050T-2R2K-PFFIXED IND 2.2UH 1.3A 60 MOHM SMD TDK Corporation |
0 |
|
规格书 |
NLC | 2220 (5650 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±10% | 1.3 A | - | Unshielded | 60mOhm Max | 10 @ 7.96MHz | 42MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
NLC565050T-271K-PFFIXED IND 270UH 155MA 4.2OHM SMD TDK Corporation |
0 |
|
规格书 |
NLC | 2220 (5650 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 270 µH | ±10% | 155 mA | - | Unshielded | 4.2Ohm Max | 20 @ 796kHz | 3.6MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
NLC565050T-270K-PFFIXED IND 27UH 440MA 520MOHM SMD TDK Corporation |
0 |
|
规格书 |
NLC | 2220 (5650 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 27 µH | ±10% | 440 mA | - | Unshielded | 520mOhm Max | 10 @ 2.52MHz | 11.5MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
NLC565050T-221K-PFFIXED IND 220UH 170MA 3.4OHM SMD TDK Corporation |
0 |
|
规格书 |
NLC | 2220 (5650 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 220 µH | ±10% | 170 mA | - | Unshielded | 3.4Ohm Max | 20 @ 796kHz | 3.9MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
NLC565050T-220K-PFFIXED IND 22UH 480MA 430MOHM SMD TDK Corporation |
0 |
|
规格书 |
NLC | 2220 (5650 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±10% | 480 mA | - | Unshielded | 430mOhm Max | 10 @ 2.52MHz | 13MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
NLC565050T-1R5K-PFFIXED IND 1.5UH 1.6A 40 MOHM SMD TDK Corporation |
0 |
|
规格书 |
NLC | 2220 (5650 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±10% | 1.6 A | - | Unshielded | 40mOhm Max | 10 @ 7.96MHz | 55MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
NLC565050T-1R0K-PFFIXED IND 1UH 1.8A 30 MOHM SMD TDK Corporation |
0 |
|
规格书 |
NLC | 2220 (5650 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±10% | 1.8 A | - | Unshielded | 30mOhm Max | 10 @ 7.96MHz | 95MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
NLC565050T-181K-PFFIXED IND 180UH 190MA 2.8OHM SMD TDK Corporation |
0 |
|
规格书 |
NLC | 2220 (5650 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 180 µH | ±10% | 190 mA | - | Unshielded | 2.8Ohm Max | 20 @ 796kHz | 4.4MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
