固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TSL1112RA-471KR72-PFFIXED IND 470UH 720MA 660MOHM TH TDK Corporation |
0 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 470 µH | ±10% | 720 mA | 750mA | Unshielded | 660mOhm Max | 10 @ 796kHz | 1.6MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.441" Dia (11.20mm) | 0.492" (12.50mm) |
|
|
TSL1112RA-470K2R1-PFFIXED IND 47UH 2.1A 75 MOHM TH TDK Corporation |
0 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 47 µH | ±10% | 2.1 A | 2.3A | Unshielded | 75mOhm Max | 30 @ 2.52MHz | 5.8MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.441" Dia (11.20mm) | 0.492" (12.50mm) |
|
|
TSL1112RA-3R3M5R9-PFFIXED IND 3.3UH 5.9A 10 MOHM TH TDK Corporation |
0 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 3.3 µH | ±20% | 5.9 A | 8.8A | Unshielded | 10mOhm Max | 10 @ 7.96MHz | 36MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.441" Dia (11.20mm) | 0.492" (12.50mm) |
|
|
TSL1112RA-332JR26-PFFIXED IND 3.3MH 260MA 4.9 OHM TH TDK Corporation |
0 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 3.3 mH | ±5% | 260 mA | 280mA | Unshielded | 4.9Ohm Max | 30 @ 252kHz | 640kHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.441" Dia (11.20mm) | 0.492" (12.50mm) |
|
|
TSL1112RA-331KR82-PFFIXED IND 330UH 820MA 520MOHM TH TDK Corporation |
0 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 330 µH | ±10% | 820 mA | 880mA | Unshielded | 520mOhm Max | 20 @ 796kHz | 2MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.441" Dia (11.20mm) | 0.492" (12.50mm) |
|
|

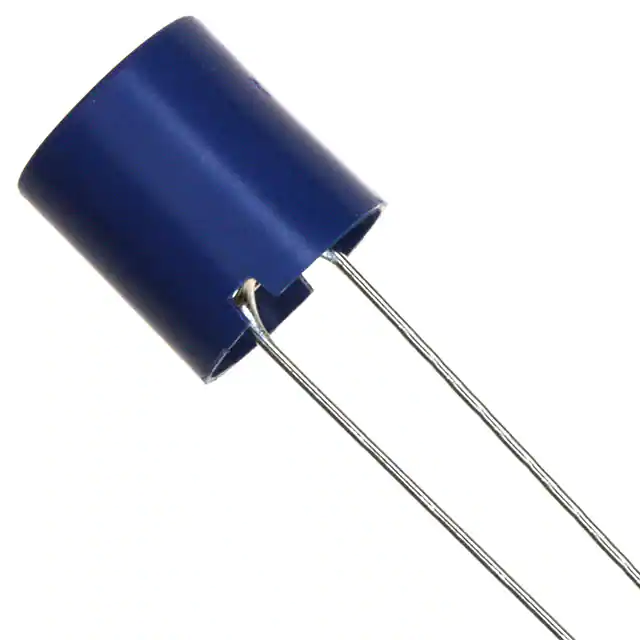

TSL1112RA-330K2R3-PFFIXED IND 33UH 2.3A 62 MOHM TH TDK Corporation |
0 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 33 µH | ±10% | 2.3 A | 2.8A | Unshielded | 62mOhm Max | 30 @ 2.52MHz | 7MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.441" Dia (11.20mm) | 0.492" (12.50mm) |
|
|
TSL1112RA-221K1R0-PFFIXED IND 220UH 1A 330 MOHM TH TDK Corporation |
0 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 220 µH | ±10% | 1 A | 1.1A | Unshielded | 330mOhm Max | 20 @ 796kHz | 2.5MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.441" Dia (11.20mm) | 0.492" (12.50mm) |
|
|
TSL1112RA-220K2R9-PFFIXED IND 22UH 2.9A 40 MOHM TH TDK Corporation |
0 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 22 µH | ±10% | 2.9 A | 3.4A | Unshielded | 40mOhm Max | 20 @ 2.52MHz | 9.5MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.441" Dia (11.20mm) | 0.492" (12.50mm) |
|
|
TSL1112RA-153JR12-PFFIXED IND 15MH 120MA 24 OHM TH TDK Corporation |
0 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 15 mH | ±5% | 120 mA | 130mA | Unshielded | 24Ohm Max | 50 @ 79.6kHz | 290kHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.441" Dia (11.20mm) | 0.492" (12.50mm) |
|
|
TSL1112RA-152JR38-PFFIXED IND 1.5MH 380MA 2.4 OHM TH TDK Corporation |
0 |
|
规格书 |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 1.5 mH | ±5% | 380 mA | 430mA | Unshielded | 2.4Ohm Max | 30 @ 252kHz | 820kHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.441" Dia (11.20mm) | 0.492" (12.50mm) |
