固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

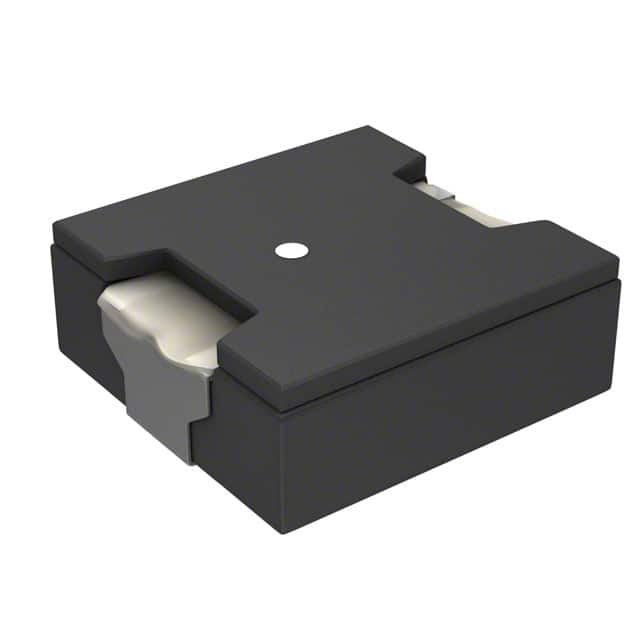

RLF12545T-5R6N6R1-PFFIXED IND 5.6UH 6.1A 10.2MOHM SM TDK Corporation |
0 |
|
规格书 |
RLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 6.1 A | 8A | Shielded | 10.2mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.492" W (12.80mm x 12.50mm) | 0.185" (4.70mm) |
|

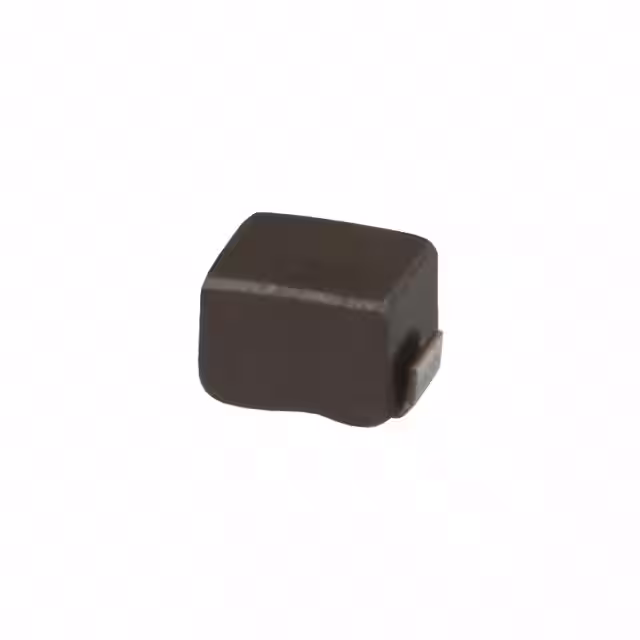

NLFC201614T-100K-PFFIXED IND 10UH 120MA 700MOHM SMD TDK Corporation |
0 |
|
规格书 |
NLFC | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | - | - | 10 µH | ±10% | 120 mA | - | Shielded | 700mOhm | 10 @ 2.52MHz | 32MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.083" L x 0.063" W (2.10mm x 1.60mm) | 0.063" (1.60mm) |
|
|
NLFC201614T-1R0M-PFFIXED IND 1UH 300MA 160 MOHM SMD TDK Corporation |
0 |
|
规格书 |
NLFC | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | - | - | 1 µH | ±20% | 300 mA | - | Shielded | 160mOhm | 5 @ 7.96MHz | 100MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.083" L x 0.063" W (2.10mm x 1.60mm) | 0.063" (1.60mm) |
|
|
NLFC201614T-4R7M-PFFIXED IND 4.7UH 150MA 400MOHM SM TDK Corporation |
0 |
|
规格书 |
NLFC | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | - | - | 4.7 µH | ±20% | 150 mA | - | Shielded | 400mOhm | 5 @ 7.96MHz | 45MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.083" L x 0.063" W (2.10mm x 1.60mm) | 0.063" (1.60mm) |
|
NLC453232T-3R9K-PFFIXED IND 3.9UH 700MA 240MOHM SM TDK Corporation |
0 |
|
规格书 |
NLC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.9 µH | ±10% | 700 mA | - | Unshielded | 240mOhm Max | 10 @ 7.96MHz | 40MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NLC453232T-820K-PFFIXED IND 82UH 200MA 3.5 OHM SMD TDK Corporation |
0 |
|
规格书 |
NLC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 200 mA | - | Unshielded | 3.5Ohm Max | 10 @ 2.52MHz | 9MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

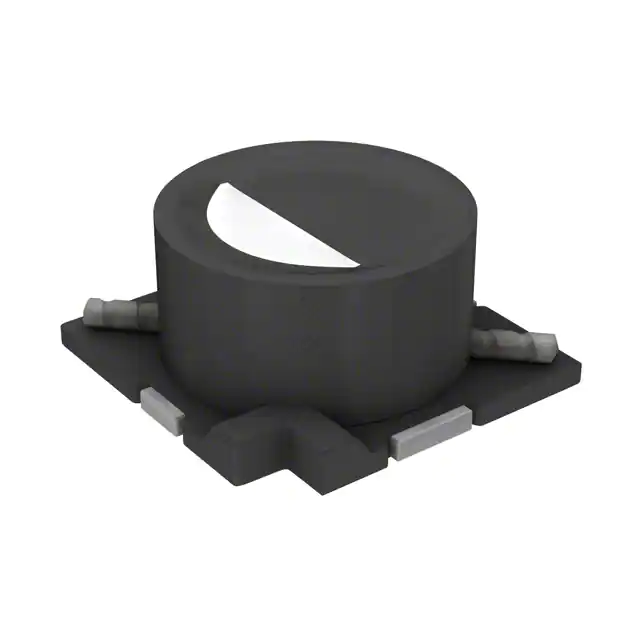

SLF7028T-6R8M1R3-PFFIXED IND 6.8UH 1.3A 59 MOHM SMD TDK Corporation |
0 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.3 A | - | Shielded | 59mOhm | - | - | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) |
|
SLF7028T-100M1R1-PFFIXED IND 10UH 1.1A 83 MOHM SMD TDK Corporation |
0 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.1 A | - | Shielded | 83mOhm | - | - | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) |
|

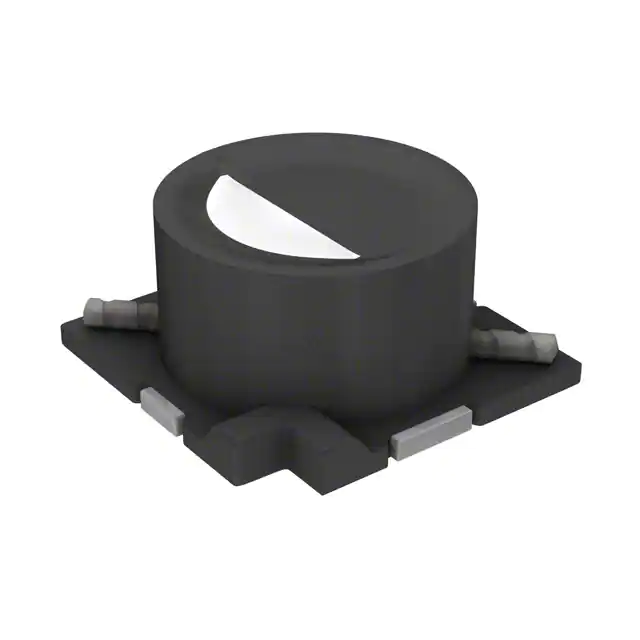

SLF7030T-6R8M1R5-PFFIXED IND 6.8UH 1.5A 41 MOHM SMD TDK Corporation |
0 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.5 A | - | Shielded | 41mOhm | - | - | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.127" (3.22mm) |
|
|
SLF7030T-100M1R3-PFFIXED IND 10UH 1.3A 53 MOHM SMD TDK Corporation |
0 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.3 A | - | Shielded | 53mOhm | - | - | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.127" (3.22mm) |
