| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH70D45BT150NP-2R2NCFIXED IND 2.2UH 7.6A 10MOHM SMD Sumida America Components Inc. |
750 |
|
规格书 |
CDRH70D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 7.6 A | 6.2A | Shielded | 10mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.287" W (7.70mm x 7.30mm) | 0.189" (4.80mm) |
|
177CDMCCDS-1R0MCFIXED IND 1UH 44.6A 1.38MOHM SMD Sumida America Components Inc. |
342 |
|
规格书 |
177CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 44.6 A | 60.8A | Shielded | 1.38mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
177CDMCCDS-2R2MCFIXED IND 2.2UH 31.2A 2.65 MOHM Sumida America Components Inc. |
325 |
|
规格书 |
177CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 31.2 A | 40.8A | Shielded | 2.65mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
CR54NP-5R0MCFIXED IND 5UH 2.6A 44.2 MOHM SMD Sumida America Components Inc. |
1,500 |
|
规格书 |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±20% | 2.6 A | - | Unshielded | 44.2mOhm Max | - | 23.1MHz | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | 0.191" (4.85mm) |
|
CDRH3D28/LDNP-220NCFIXED IND 22UH 1.28A 145MOHM SMD Sumida America Components Inc. |
10,000 |
|
规格书 |
CDRH3D28/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±30% | 1.28 A | 330mA | Shielded | 145mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.118" (3.00mm) |
|
CDRH5D16NP-470MCFIXED IND 47UH 600MA 580MOHM SMD Sumida America Components Inc. |
2,000 |
|
规格书 |
CDRH5D16 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 600 mA | 680mA | Shielded | 580mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.220" L x 0.220" W (5.60mm x 5.60mm) | 0.071" (1.80mm) |
|

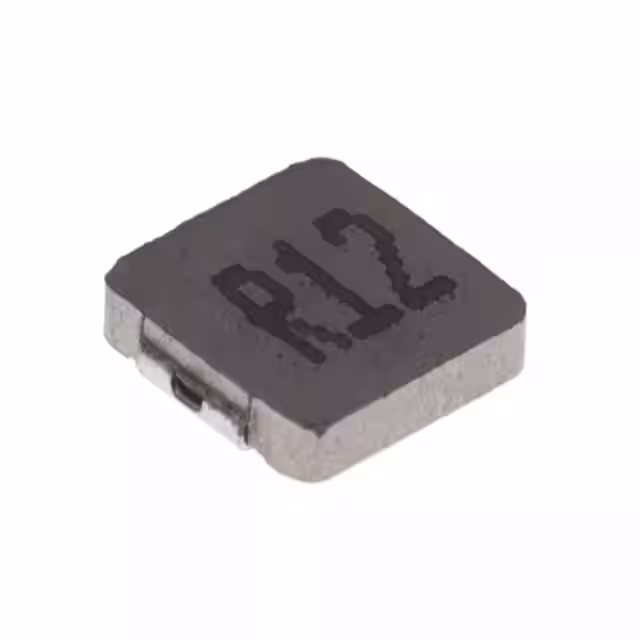

0412CDMCCDS-R12MCFIXED IND 120NH 11A 7.8MOHM SMD Sumida America Components Inc. |
2,945 |
|
规格书 |
0412CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 120 nH | ±20% | 11 A | 16A | Shielded | 7.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.047" (1.20mm) |
|
0420CDMCCDS-1R2MCFIXED IND 1.2UH 6.5A 27MOHM SMD Sumida America Components Inc. |
1,540 |
|
规格书 |
0420CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.2 µH | ±20% | 6.5 A | 8A | Shielded | 27mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
0420CDMCCDS-R56MCFIXED IND 560NH 8.1A 16MOHM SMD Sumida America Components Inc. |
12,000 |
|
规格书 |
0420CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 560 nH | ±20% | 8.1 A | 12A | Shielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|

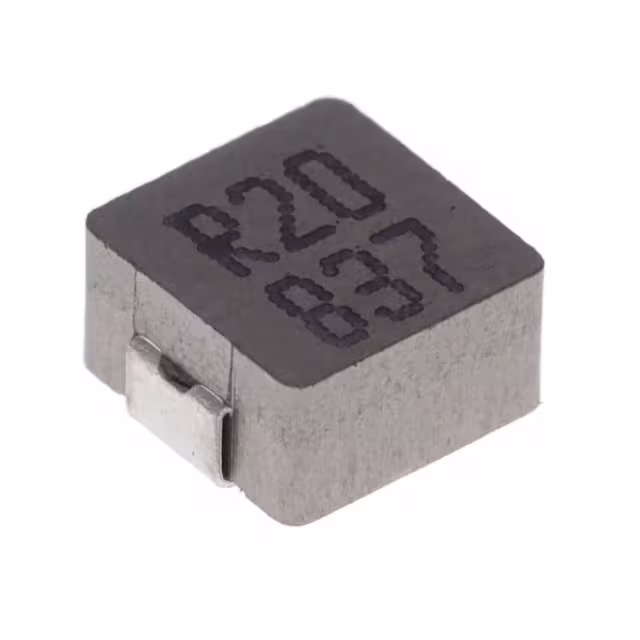

0530CDMCCDS-R20MCFIXED IND 200NH 14A 3.9MOHM SMD Sumida America Components Inc. |
1,449 |
|
规格书 |
0530CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 200 nH | ±20% | 14 A | 22A | Shielded | 3.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
