固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH4D22HPNP-100MCFIXED IND 10UH 1.3A 143.8MOHM SM |
12,032 |
|
规格书 |
CDRH4D22/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 1.3 A | 1.5A | Shielded | 143.8mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.094" (2.40mm) |
|
0640CDMCCDS-2R2MCFIXED IND 2.2UH 12A 10.8MOHM SMD |
8,020 |
|
规格书 |
0640CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 12 A | 9.4A | Shielded | 10.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.157" (4.00mm) |
|

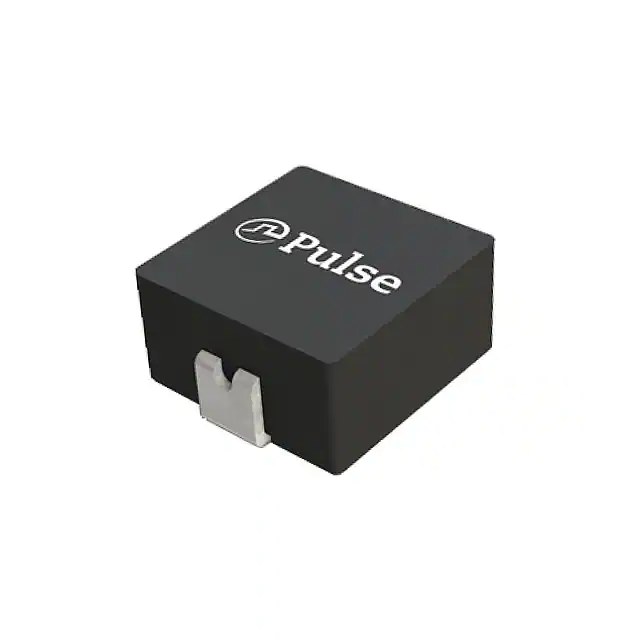

PA4340.222NLTFIXED IND 2.2UH 5.5A 35 MOHM SMD |
5,856 |
|
规格书 |
PA4340.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 5.5 A | 9A | Shielded | 35mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.118" (3.00mm) |
|
|
PA4340.333NLTFIXED IND 33UH 1.6A 440 MOHM SMD |
5,645 |
|
规格书 |
PA4340.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 1.6 A | 1.6A | Shielded | 440mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.118" (3.00mm) |
|
|
0640CDMCCDS-220MCFIXED IND 220NH 3.3A 133MOHM SMD |
4,474 |
|
规格书 |
0640CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 22 µH | ±20% | 3.3 A | 3.2A | Shielded | 133mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.157" (4.00mm) |
|

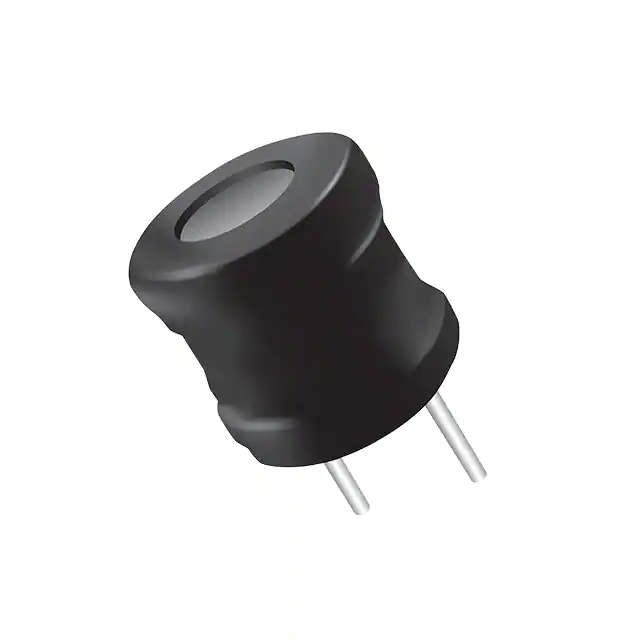

RLB1112V4-102JFIXED IND 1MH 510MA 1.4 OHM TH |
3,423 |
|
规格书 |
RLB | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 510 mA | 500mA | Unshielded | 1.4Ohm Max | 20 @ 252kHz | 1.1MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.453" Dia (11.50mm) | 0.531" (13.50mm) |
|
|
PA4340.103NLTFIXED IND 10UH 2.75A 128MOHM SMD |
3,126 |
|
规格书 |
PA4340.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 2.75 A | 3.5A | Shielded | 128mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.118" (3.00mm) |
|
|
PA4340.102NLTFIXED IND 1UH 7A 14 MOHM SMD |
2,974 |
|
规格书 |
PA4340.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 7 A | 11A | Shielded | 14mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.118" (3.00mm) |
|

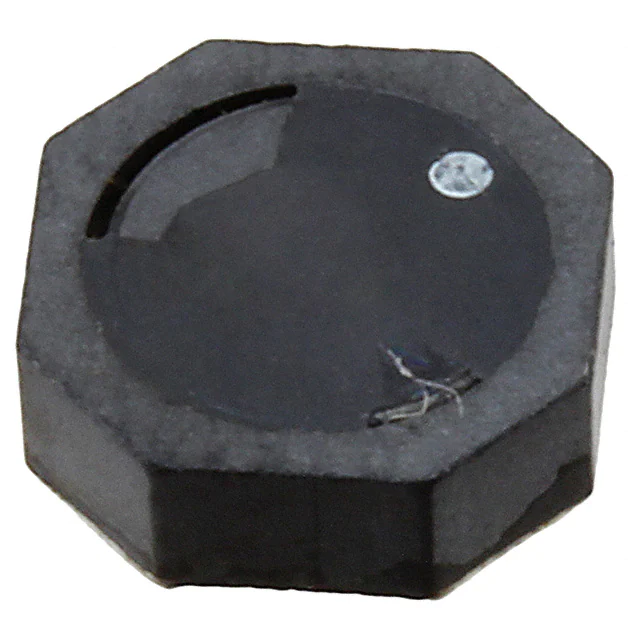

SRU6025-221YFIXED IND 220UH 420MA 1.25OHM SM |
2,330 |
|
规格书 |
SRU6025 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±30% | 420 mA | 240mA | Shielded | 1.25Ohm Max | 20 @ 2.52MHz | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.110" (2.80mm) |
|
TFM322512ALMA6R8MTAAFIXED IND 6.8UH 1.4A 260MOHM SMD |
1,882 |
|
规格书 |
TFM-ALMA | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 6.8 µH | ±20% | 1.4 A | 1.8A | Shielded | 260mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
0640CDMCCDS-150MCFIXED IND 15UH 3.8A 89 MOHM SMD |
26,008 |
|
规格书 |
0640CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 15 µH | ±20% | 3.8 A | 3.9A | Shielded | 89mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.157" (4.00mm) |
|
TFM322512ALMAR10MTAAINDUCTORS FOR POWER CIRCUITS, AU |
9,860 |
|
规格书 |
TFM-ALMA | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 100 nH | ±20% | 8 A | 14A | Unshielded | 8mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
.jpg)
|
DFE322520FD-1R5M=P2FIXED IND 1.5UH 3.4A 31 MOHM SMD |
5,385 |
|
规格书 |
DFE322520FD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 3.4 A | 6A | Shielded | 31mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
|
ASPI-104S-150M-TFIXED IND 15UH 3.1A 50 MOHM SMD |
5,370 |
|
规格书 |
ASPI-104S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.1 A | 3.6A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.157" (4.00mm) |
|
|
DFE322520FD-3R3M=P2FIXED IND 3.3UH 2.3A 65 MOHM SMD |
5,180 |
|
规格书 |
DFE322520FD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 2.3 A | 4.2A | Shielded | 65mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
|
RLS-397-RFIXED IND 3.9UH 1.32A 140MOHM SM |
4,691 |
|
规格书 |
- | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 3.9 µH | ±20% | 1.32 A | 2.1A | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.122" (3.10mm) |
|
1273AS-H-4R7N=P3FIXED IND 4.7UH 4.9A 22.8MOHM SM |
4,166 |
|
规格书 |
DEM8030C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4.9 A | 4.4A | Shielded | 22.8mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
TFM322512ALMAR15MTAAINDUCTORS FOR POWER CIRCUITS, AU |
4,126 |
|
规格书 |
TFM-ALMA | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 150 nH | ±20% | 8 A | 12A | Shielded | 9mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Soft Termination | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
RLS-567-RFIXED IND 5.6UH 1.18A 180MOHM SM |
1,141 |
|
规格书 |
- | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±20% | 1.18 A | 1.9A | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 | 0.177" L x 0.122" W (4.50mm x 3.10mm) | 0.122" (3.10mm) |
|
CLF7045NIT-220M-DFIXED IND 22UH 1.7A 82.8MOHM SMD |
10,515 |
|
规格书 |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.7 A | 1.7A | Shielded | 82.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
