固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMS322512ALM-4R7MTAAFIXED IND 4.7UH 1.9A 0.151OHM SM |
2,408 |
|
规格书 |
TMS-ALM | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 4.7 µH | ±20% | 1.9 A | 2.2A | Shielded | 151mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Soft Termination | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
B82432T1333K000FIXED IND 33UH 400MA 1.2 OHM SMD |
2,009 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 400 mA | - | Unshielded | 1.2Ohm Max | 10 @ 2.52MHz | 13MHz | AEC-Q200 | -55°C ~ 150°C | 2.52 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
TMS322512ALM-1R0MTAAFIXED IND 1UH 4A 0.037OHM SMD |
1,574 |
|
规格书 |
TMS-ALM | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1 µH | ±20% | 4 A | 4.6A | Shielded | 37mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Soft Termination | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
TMS322512ALM-R22MTAAFIXED IND 220NH 7A 0.011OHM SMD |
1,095 |
|
规格书 |
TMS-ALM | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 220 nH | ±20% | 7 A | 10A | Shielded | 11mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Soft Termination | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
CR54NP-150MCFIXED IND 15UH 1.3A 140 MOHM SMD |
1,017 |
|
规格书 |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.3 A | - | Unshielded | 140mOhm Max | - | 25.9MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | 0.191" (4.85mm) |
|
CDRH5D18NP-100NCFIXED IND 10UH 1.2A 124 MOHM SMD |
42,529 |
|
规格书 |
CDRH5D18 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±30% | 1.2 A | - | Shielded | 124mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.079" (2.00mm) |
|
ASPI-7318-R33M-TFIXED IND 330NH 20A 3.9 MOHM SMD |
14,226 |
|
规格书 |
ASPI-7318 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±20% | 20 A | 28A | Shielded | 3.9mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.118" (3.00mm) |
|
SLF7055T-100M2R5-3PFFIXED IND 10UH 2.5A 46.9MOHM SMD |
7,551 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.5 A | 2.6A | Shielded | 46.9mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.228" (5.80mm) |
|
|
CR54NP-220MCFIXED IND 22UH 1.11A 180MOHM SMD |
6,036 |
|
规格书 |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.11 A | - | Unshielded | 180mOhm Max | - | 19.5MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | 0.191" (4.85mm) |
|

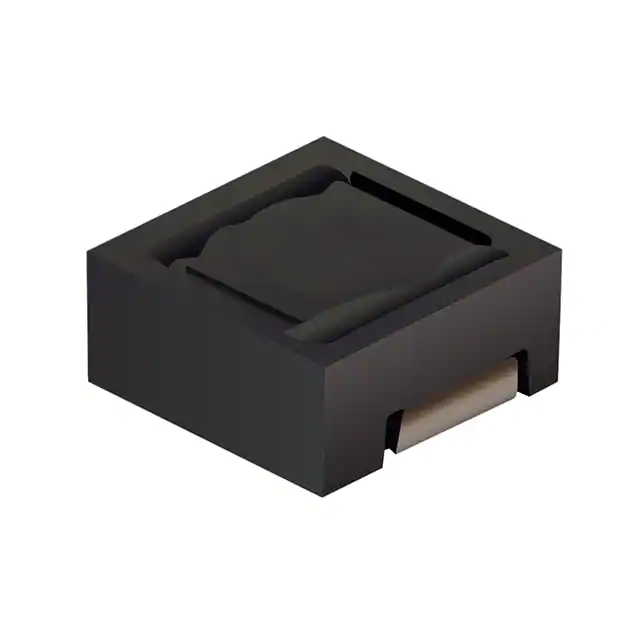

SRR3818A-100MFIXED IND 10UH 1.3A 235 MOHM SMD |
4,227 |
|
规格书 |
SRR3818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.3 A | 650mA | Shielded | 235mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|
CLF7045NIT-100M-DFIXED IND 10UH 3A 39.6 MOHM SMD |
3,631 |
|
规格书 |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3 A | 3A | Shielded | 39.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
|
SRR3818A-3R9YFIXED IND 3.9UH 2A 105 MOHM SMD |
3,498 |
|
规格书 |
SRR3818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±30% | 2 A | 1.05A | Shielded | 105mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|
|
CR54NP-101KCFIXED IND 100UH 520MA 700MOHM SM |
3,156 |
|
规格书 |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 520 mA | - | Unshielded | 700mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | 0.191" (4.85mm) |
|
SRR4828A-4R7YFIXED IND 4.7UH 3A 54 MOHM SMD |
2,449 |
|
规格书 |
SRR4828A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 3 A | 1.6A | Shielded | 54mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|

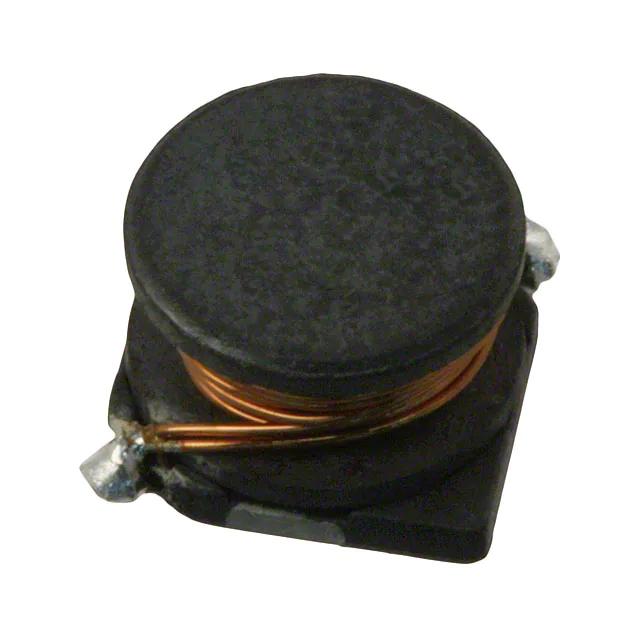

SDR7045-331KFIXED IND 330UH 420MA 1.24OHM SM |
2,037 |
|
规格书 |
SDR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 420 mA | 400mA | Unshielded | 1.24Ohm Max | 20 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|

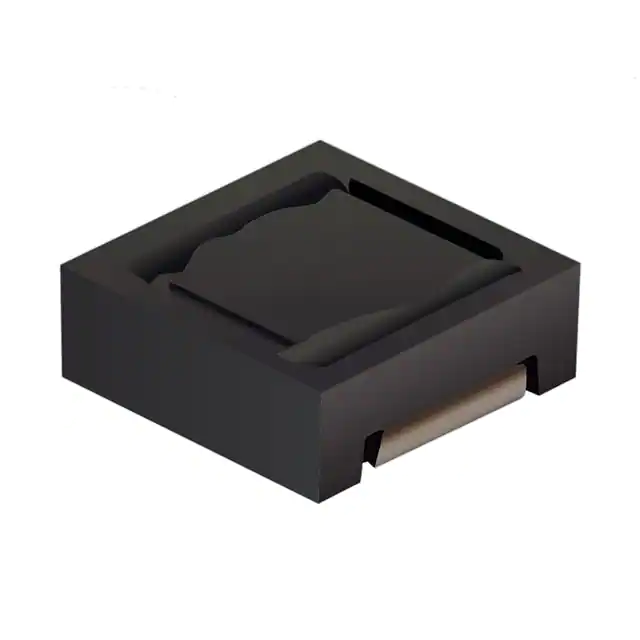

SRR4818A-220MFIXED IND 22UH 1.25A 360MOHM SMD |
1,974 |
|
规格书 |
SRR4818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.25 A | 720mA | Shielded | 360mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
EXL1V0503-4R7-RFIXED IND 4.7UH 5.9A 36.3MOHM SM |
1,767 |
|
规格书 |
EXL1V0503 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 4.7 µH | ±20% | 5.9 A | 7A | Shielded | 36.3mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.122" (3.10mm) |
|
744910016FIXED IND 1.65NH 1.6A 4 MOHM SMD |
1,241 |
|
规格书 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 1.65 nH | ±10% | 1.6 A | - | Unshielded | 4mOhm Max | 100 @ 800MHz | 10GHz | AEC-Q200 | -40°C ~ 125°C | 800 MHz | - | Surface Mount | 1322 | 0.087" L x 0.056" W (2.21mm x 1.42mm) | 0.060" (1.52mm) |
|
RL622-1R0K-RCFIXED IND 1UH 10A 13 MOHM TH |
19,351 |
|
规格书 |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 10 A | - | Unshielded | 13mOhm Max | 20 @ 7.96MHz | 150MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
|
CLF6045NIT-220M-DFIXED IND 22UH 1.4A 90 MOHM SMD |
11,227 |
|
规格书 |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.4 A | 1.4A | Shielded | 90mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
