固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

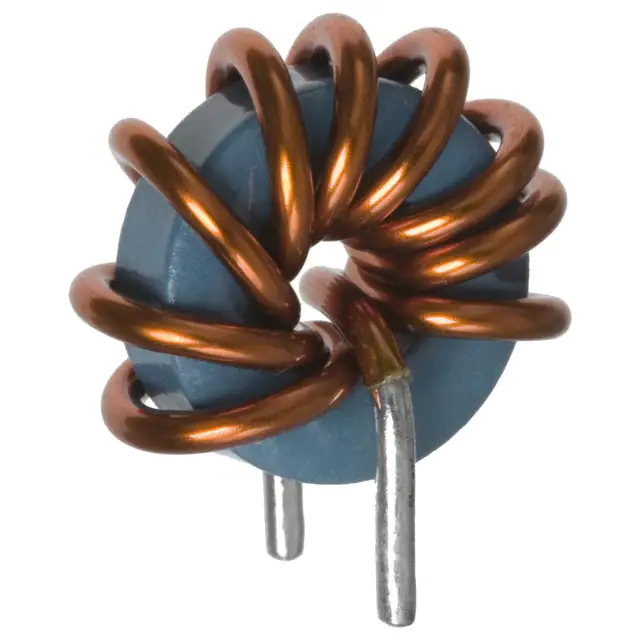

P1715LNLFIXED IND 3.5UH 14.3A 5 MOHM TH |
1,381 |
|
规格书 |
Bare Coil | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 3.5 µH | - | 14.3 A | - | Unshielded | 5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.610" Dia x 0.327" W (15.50mm x 8.30mm) | - |
|
MPEV1D0630L100FIXED IND 10UH 4.2A 78 MOHM SMD |
1,000 |
|
规格书 |
METCOM MPEV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 4.2 A | 4.5A | Shielded | 78mOhm Max | - | 15MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
SRR0604-100MLFIXED IND 10UH 1.3A 120 MOHM SMD |
55,066 |
|
规格书 |
SRR0604 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.3 A | 1.8A | Shielded | 120mOhm Max | 18 @ 2.52MHz | 30MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.189" (4.80mm) |
|
|
SRR0604-102KLFIXED IND 1MH 120MA 6.1 OHM SMD |
29,679 |
|
规格书 |
SRR0604 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 120 mA | 150mA | Shielded | 6.1Ohm Max | 15 @ 252kHz | 5.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.189" (4.80mm) |
|
ASPI-0630LR-4R7M-T15FIXED IND 4.7UH 5.5A 35 MOHM SMD |
13,603 |
|
规格书 |
ASPI-0630LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 4.7 µH | ±20% | 5.5 A | 6.5A | Shielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
|
|
SRR0604-101KLFIXED IND 100UH 400MA 650MOHM SM |
9,882 |
|
规格书 |
SRR0604 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 400 mA | 570mA | Shielded | 650mOhm Max | 23 @ 796kHz | 13MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.189" (4.80mm) |
|
SLF10145T-331MR54-PFFIXED IND 330UH 580MA 816MOHM SM |
6,217 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 580 mA | 540mA | Shielded | 816mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
SLF7045T-221MR33-PFFIXED IND 220UH 450MA 624MOHM SM |
4,905 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 450 mA | 330mA | Shielded | 624mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
SLF7045T-470MR75-PFFIXED IND 47UH 920MA 150MOHM SMD |
4,480 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 920 mA | 750mA | Shielded | 150mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
SLF6028T-150M1R0-PFFIXED IND 15UH 1.4A 89.4MOHM SMD |
4,190 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.4 A | 1A | Shielded | 89.4mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SRR0604-330KLFIXED IND 33UH 700MA 250MOHM SMD |
4,030 |
|
规格书 |
SRR0604 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 700 mA | 950mA | Shielded | 250mOhm Max | 16 @ 2.52MHz | 21MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.189" (4.80mm) |
|
|
SLF6025T-4R7M1R5-PFFIXED IND 4.7UH 1.8A 36.72 MOHM |
3,763 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.8 A | 1.5A | Shielded | 36.72mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.106" (2.70mm) |
|
|
ASPI-0630LR-6R8M-T15FIXED IND 6.8UH 4.5A 60 MOHM SMD |
3,010 |
|
规格书 |
ASPI-0630LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 6.8 µH | ±20% | 4.5 A | 6A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
|
NS10165T100MNAFIXED IND 10UH 4.66A 20.4MOHM SM |
2,690 |
|
规格书 |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.66 A | 5.2A | Shielded | 20.4mOhm Max | - | 16.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
|
SRR0604-470KLFIXED IND 47UH 600MA 360MOHM SMD |
2,044 |
|
规格书 |
SRR0604 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 600 mA | 800mA | Shielded | 360mOhm Max | 15 @ 2.52MHz | 18MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.189" (4.80mm) |
|
|
ASPI-0630LR-2R2M-T15FIXED IND 2.2UH 8A 18.5 MOHM SMD |
1,617 |
|
规格书 |
ASPI-0630LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 2.2 µH | ±20% | 8 A | 10A | Shielded | 18.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
|
|
ASPI-0630LR-5R6M-T15FIXED IND 5.6UH 6A 35.5 MOHM SMD |
1,523 |
|
规格书 |
ASPI-0630LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 5.6 µH | ±20% | 6 A | 5A | Shielded | 35.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
|
PA4340.223NLTFIXED IND 22UH 1.9A 250 MOHM SMD |
81,907 |
|
规格书 |
PA4340.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 1.9 A | 1.7A | Shielded | 250mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.118" (3.00mm) |
|
CDRH2D11NP-4R7NCFIXED IND 4.7UH 880MA 170MOHM SM |
38,850 |
|
规格书 |
CDRH2D11 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 880 mA | 500mA | Shielded | 170mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.043" (1.10mm) |
|
|
PA4340.472NLTFIXED IND 4.7UH 4.6A 53 MOHM SMD |
19,439 |
|
规格书 |
PA4340.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 4.6 A | 6A | Shielded | 53mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.118" (3.00mm) |
