固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

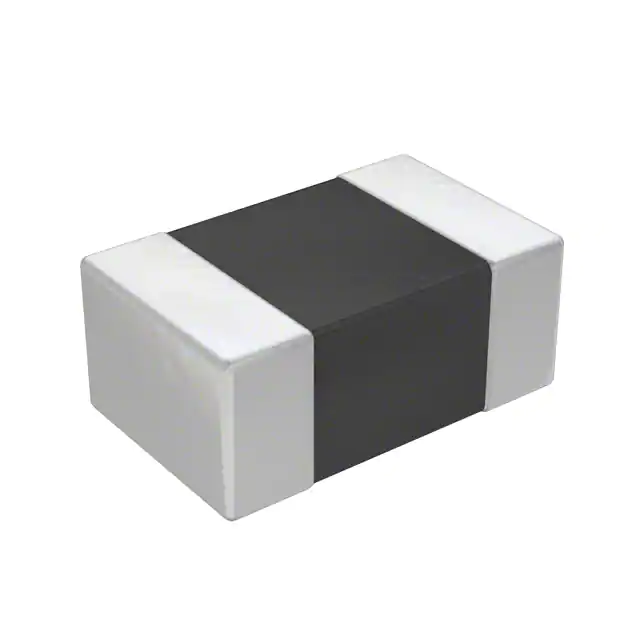

ASMCI-0805-100N-TFIXED IND 10UH 60MA 500 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASMCI-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 10 µH | ±30% | 60 mA | - | Shielded | 500mOhm | - | 15MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ASMCI-0805-1R0N-TFIXED IND 1UH 300MA 200 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASMCI-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±30% | 300 mA | - | Shielded | 200mOhm | - | 75MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
ASMCI-0805-2R2N-TFIXED IND 2.2UH 220MA 280MOHM SM Abracon LLC |
0 |
|
规格书 |
ASMCI-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±30% | 220 mA | - | Shielded | 280mOhm | - | 50MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
ASMCI-0805-R10N-TFIXED IND 100NH 1A 70 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASMCI-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 100 nH | ±30% | 1 A | - | Shielded | 70mOhm | - | 235MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
ASMCI-0805-R22N-TFIXED IND 220NH 800MA 130MOHM SM Abracon LLC |
0 |
|
规格书 |
ASMCI-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 220 nH | ±30% | 800 mA | - | Shielded | 130mOhm | - | 170MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|

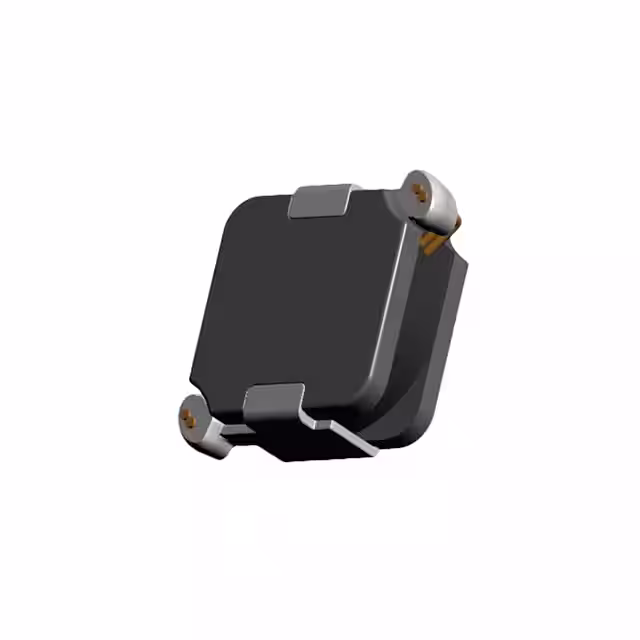

ASPIAIG-H8540-1R0M-TFIXED IND 1UH 8.4A 6.5 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPIAIG-H8540 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 8.4 A | 20A | Shielded | 6.5mOhm | - | 49MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.335" W (8.80mm x 8.50mm) | 0.157" (4.00mm) |
|
ASPIAIG-Q4020-1R0M-TFIXED IND 1UH 9.6A 14.6 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPIAIG-Q4020 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 9.6 A | 8.8A | Shielded | 14.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
ASPIAIG-Q4020-2R2M-TFIXED IND 2.2UH 5.6A 38.7MOHM SM Abracon LLC |
0 |
|
规格书 |
ASPIAIG-Q4020 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 5.6 A | 6A | Shielded | 38.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
ASPIAIG-Q4020-R10M-TFIXED IND 100NH 18A 2.42MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPIAIG-Q4020 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±20% | 18 A | 33A | Shielded | 2.42mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
ASPIAIG-Q4020-R22M-TFIXED IND 220NH 16.8A 4.6MOHM SM Abracon LLC |
0 |
|
规格书 |
ASPIAIG-Q4020 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 16.8 A | 18.8A | Shielded | 4.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
