上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

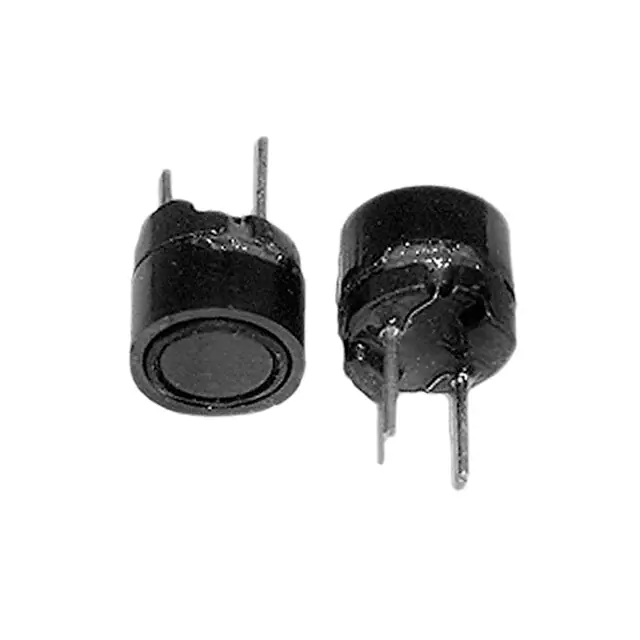

AISR-01-683JFIXED IND 68MH 11MA 67 OHM TH Abracon LLC |
0 |
|
规格书 |
AISR-01 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 mH | ±5% | 11 mA | - | Shielded | 67Ohm Max | 100 @ 50kHz | 90kHz | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.425" Dia (10.80mm) | 0.551" (14.00mm) |
|

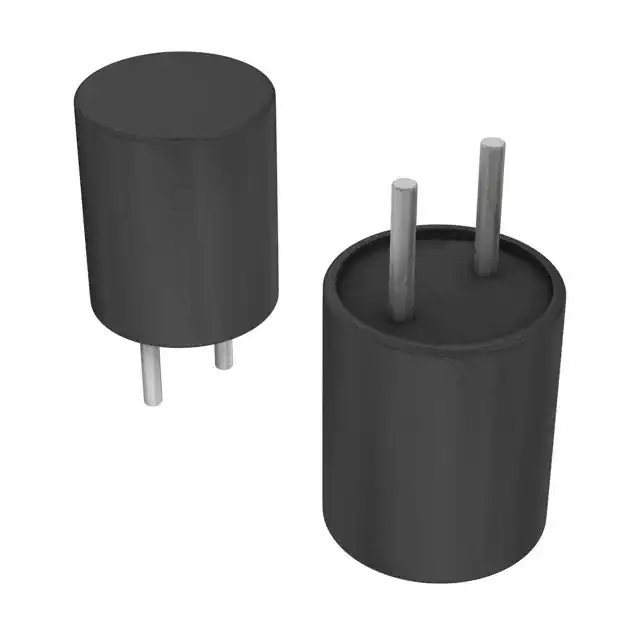

AISR-875-680MFIXED IND 68UH 1.1A 200 MOHM TH Abracon LLC |
0 |
|
规格书 |
AISR-875 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 68 µH | ±20% | 1.1 A | - | Shielded | 200mOhm Max | - | - | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
AISR-875-471LFIXED IND 470UH 410MA 1.34OHM TH Abracon LLC |
0 |
|
规格书 |
AISR-875 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 470 µH | ±15% | 410 mA | - | Shielded | 1.34Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|

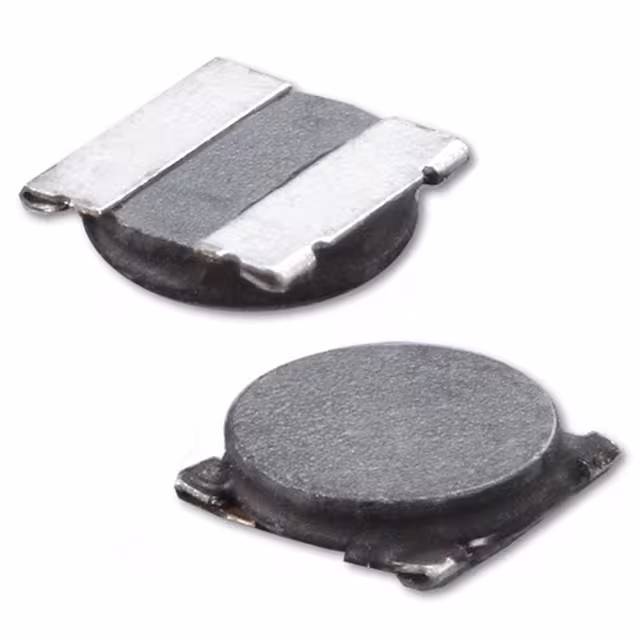

ASPI-0410FS-3R3M-T35FIXED IND 3.3UH 1.1A 180MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0410FS | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.1 A | 1.1A | Shielded | 180mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
ASPI-0410FS-4R7M-T35FIXED IND 4.7UH 900MA 210MOHM SM Abracon LLC |
0 |
|
规格书 |
ASPI-0410FS | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 900 mA | 950mA | Shielded | 210mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
ASPI-0410FS-6R8M-T35FIXED IND 6.8UH 740MA 300MOHM SM Abracon LLC |
0 |
|
规格书 |
ASPI-0410FS | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 740 mA | 760mA | Shielded | 300mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
ASPI-0410FS-330M-T35FIXED IND 33UH 280MA 1.54OHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0410FS | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 280 mA | 370mA | Shielded | 1.54Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
ASPI-0410FS-470M-T35FIXED IND 47UH 240MA 1.81OHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0410FS | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 240 mA | 270mA | Shielded | 1.81Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
AIAP-03-4R7KFIXED IND 4.7UH 13.9A 8 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIAP-03 | Axial | Bulk | Active | Wirewound | - | 4.7 µH | ±10% | 13.9 A | - | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
|
AIAP-03-5R6KFIXED IND 5.6UH 12.6A 11 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIAP-03 | Axial | Bulk | Active | Wirewound | - | 5.6 µH | ±10% | 12.6 A | - | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
