固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

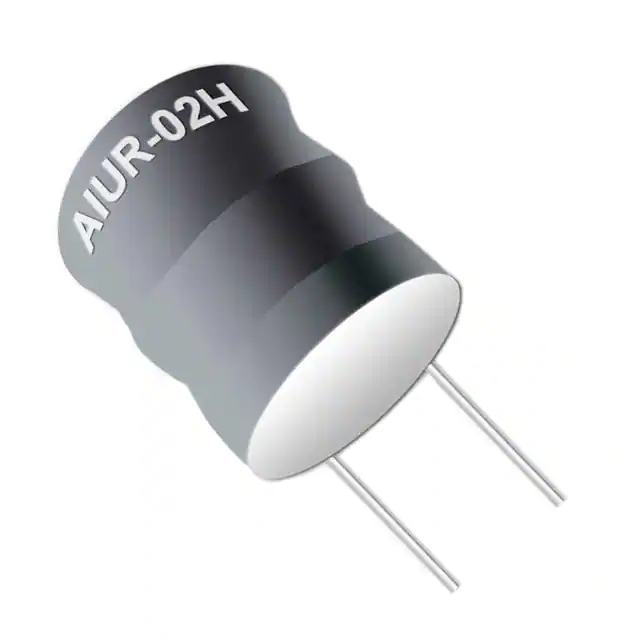

AIUR-02H-471KFIXED IND 470UH 320MA 770MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 320 mA | 680mA | Unshielded | 770mOhm Max | 20 @ 790kHz | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.472" (12.00mm) |
|
AIUR-11-3R9MFIXED IND 3.9UH 1.6A 22 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-11 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 1.6 A | 6.8A | Unshielded | 22mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.375" Dia (9.53mm) | 0.450" (11.43mm) |
|
|
AIUR-11-330KFIXED IND 33UH 1.6A 66 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-11 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.6 A | 2.3A | Unshielded | 66mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.375" Dia (9.53mm) | 0.450" (11.43mm) |
|
|
AIUR-11-680KFIXED IND 68UH 1A 168 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-11 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1 A | 1.45A | Unshielded | 168mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.375" Dia (9.53mm) | 0.450" (11.43mm) |
|
|
AIUR-11-153KFIXED IND 15MH 76MA 27.6 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-11 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 mH | ±10% | 76 mA | 100mA | Unshielded | 27.6Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.375" Dia (9.53mm) | 0.450" (11.43mm) |
|
|
AIUR-11-333KFIXED IND 33MH 46MA 64.8 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-11 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 mH | ±10% | 46 mA | 74mA | Unshielded | 64.8Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.375" Dia (9.53mm) | 0.450" (11.43mm) |
|
|
AIUR-11-683KFIXED IND 68MH 36MA 115 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-11 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 mH | ±10% | 36 mA | 40mA | Unshielded | 115Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.375" Dia (9.53mm) | 0.450" (11.43mm) |
|
AISR-01-382JFIXED IND 3.8MH TH Abracon LLC |
0 |
|
规格书 |
AISR-01 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.8 mH | ±5% | - | - | Shielded | - | 100 @ 50kHz | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.425" Dia (10.80mm) | 0.551" (14.00mm) |
|
|
AISR-01-772JFIXED IND 7.7MH 30MA 10 OHM TH Abracon LLC |
0 |
|
规格书 |
AISR-01 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 7.7 mH | ±5% | 30 mA | - | Shielded | 10Ohm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.425" Dia (10.80mm) | 0.551" (14.00mm) |
|
|
AISR-01-123JFIXED IND 12MH 25MA 13 OHM TH Abracon LLC |
0 |
|
规格书 |
AISR-01 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 12 mH | ±5% | 25 mA | - | Shielded | 13Ohm Max | 100 @ 50kHz | 220kHz | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.425" Dia (10.80mm) | 0.551" (14.00mm) |
