固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-F4030-R47M-TFIXED IND 0.47UH 14.2A 3.9 MOHM Abracon LLC |
0 |
|
规格书 |
ASPI-F4030 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 21.2 A | 14.2A | Shielded | 3.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4030 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.122" (3.10mm) |
|
ASPI-0315FS-6R8M-T2FIXED IND 6.8UH 1.3A 150MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0315FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 850 mA | 850mA | Shielded | 260mOhm Max | - | 39MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

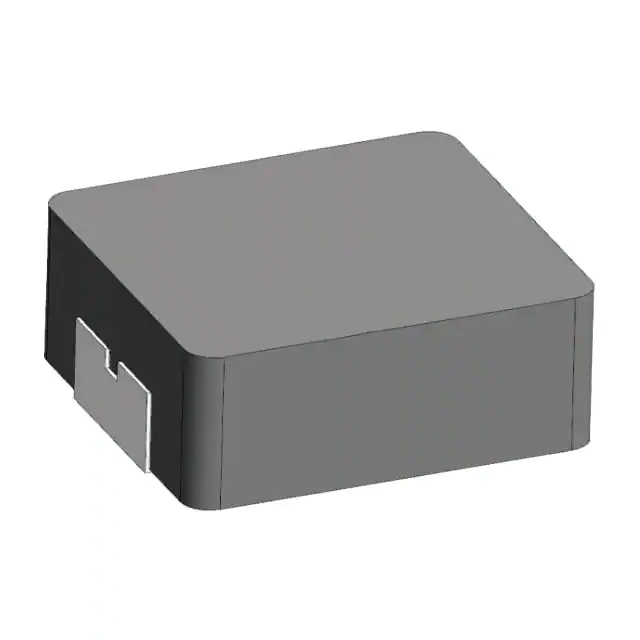

AMPLA7030S-R22NTFIXED IND 220NH 23A 2.8 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMPLA7030S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 220 nH | ±20% | 23 A | 40A | Shielded | 2.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|

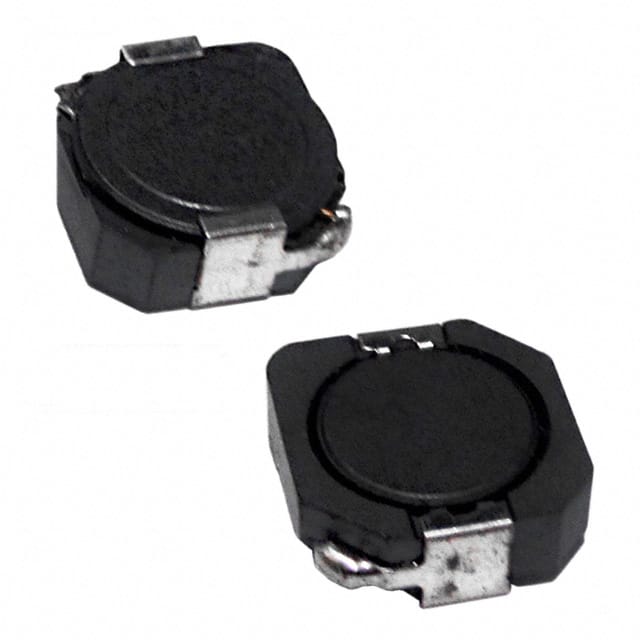

ASPI-0602S-3R9M-TFIXED IND 3.9UH 2.6A 27 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0602S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 2.6 A | - | Shielded | 27mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|
|
ASPI-0602S-6R0M-TFIXED IND 6UH 2.25A 35 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0602S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6 µH | ±20% | 2.25 A | - | Shielded | 35mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|
|
ASPI-0602S-7R3M-TFIXED IND 7.3UH 2.1A 54 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0602S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7.3 µH | ±20% | 2.1 A | - | Shielded | 54mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|
|
ASPI-0602S-8R6M-TFIXED IND 8.6UH 1.85A 58MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0602S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.6 µH | ±20% | 1.85 A | - | Shielded | 58mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|
|
ASPI-0602S-120M-TFIXED IND 12UH 1.55A 70 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0602S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 1.55 A | - | Shielded | 70mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|
|
ASPI-0602S-180M-TFIXED IND 18UH 1.32A 95 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0602S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 1.32 A | - | Shielded | 95mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|
|
ASPI-0602S-270M-TFIXED IND 27UH 1.05A 142MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0602S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1.05 A | - | Shielded | 142mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
