固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

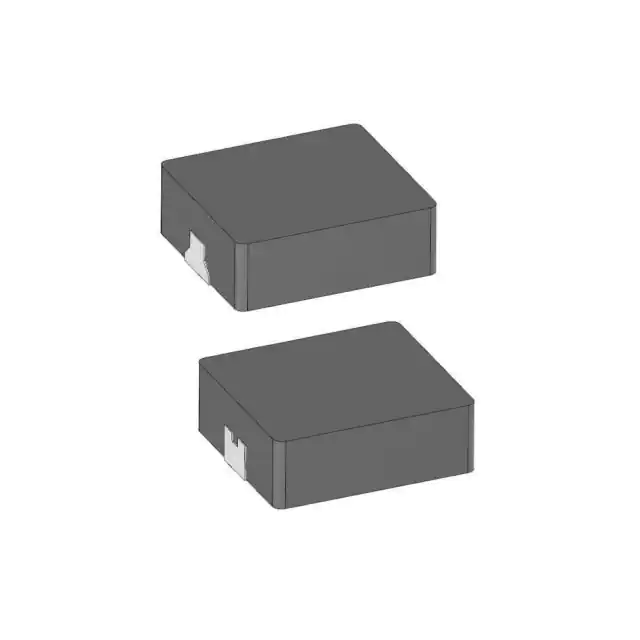

AMDLA1004Q-1R0MTFIXED IND 1UH 20A 3.25 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMDLA1004Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 20 A | 29A | Shielded | 3.25mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
AMDLA1004Q-3R3MTFIXED IND 3.3UH 11A 11.8MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMDLA1004Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 11 A | 17.5A | Shielded | 11.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
ASPIAIG-F6060-5R6M-TFIXED IND 5.6UH 9A 15.8 MOHM Abracon LLC |
0 |
|
规格书 |
ASPIAIG-F6060 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 10 A | 9A | Shielded | 15.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 6060 | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.236" (6.00mm) |
|

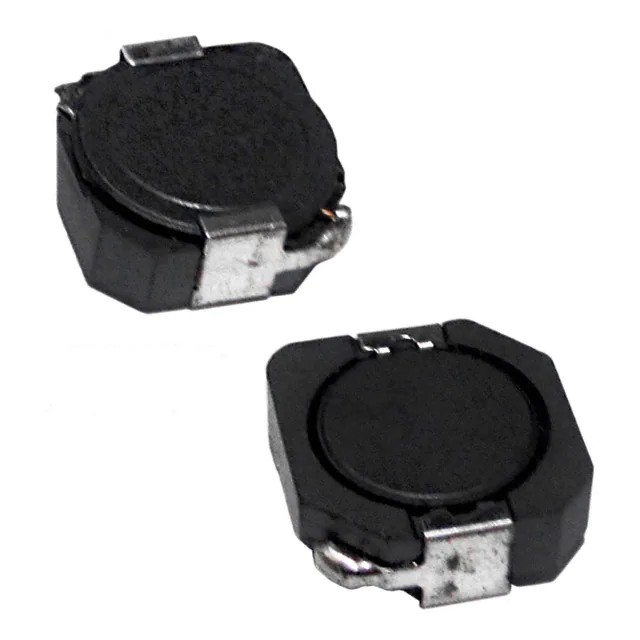

ASPI-0428S-150M-TFIXED IND 15UH 760MA 149MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 760 mA | - | Shielded | 149mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
|
ASPI-0428S-180M-TFIXED IND 18UH 720MA 166MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 720 mA | - | Shielded | 166mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
|
ASPI-0428S-220M-TFIXED IND 22UH 700MA 235MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 700 mA | - | Shielded | 235mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
|
ASPI-0428S-270M-TFIXED IND 27UH 580MA 261MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 580 mA | - | Shielded | 261mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
|
ASPI-0428S-390M-TFIXED IND 39UH 500MA 383.7 MOHM Abracon LLC |
0 |
|
规格书 |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 500 mA | - | Shielded | 383.7mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
|
ASPI-0428S-470M-TFIXED IND 47UH 480MA 587MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 480 mA | - | Shielded | 587mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
|
ASPI-0428S-680M-TFIXED IND 68UH 350MA 699MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 350 mA | - | Shielded | 699mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
