固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMPLA4020Q-6R8MTFIXED IND 6.8UH 2.1A 172MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMPLA4020Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 6.8 µH | ±20% | 2.1 A | 2.8A | Shielded | 172mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
AMPLA4020Q-R18NTFIXED IND 180NH 13.5A 5.4MOHM SM Abracon LLC |
0 |
|
规格书 |
AMPLA4020Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 180 nH | ±30% | 13.5 A | 28A | Shielded | 5.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
AMPLA4020Q-220MTFIXED IND 22UH 1.2A 500 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMPLA4020Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 22 µH | ±20% | 1.2 A | 1.4A | Shielded | 500mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
AMPLA4020Q-150MTFIXED IND 15UH 1.5A 374 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMPLA4020Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 15 µH | ±20% | 1.5 A | 1.9A | Shielded | 374mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
AMDLA3020Q-6R8MTFIXED IND 6.8UH 1.6A 184MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMDLA3020Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 6.8 µH | ±20% | 1.6 A | 2.1A | Shielded | 220mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.134" L x 0.118" W (3.40mm x 3.00mm) | 0.079" (2.00mm) |
|
|
AMPLA4020Q-3R3MTFIXED IND 3.3UH 3.5A 76 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMPLA4020Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 3.3 µH | ±20% | 3.5 A | 4A | Shielded | 76mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
AMDLA3020Q-R68MTFIXED IND 680NH 10A SMD Abracon LLC |
0 |
|
规格书 |
AMDLA3020Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 6 A | 6A | Shielded | 26mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.134" L x 0.118" W (3.40mm x 3.00mm) | 0.079" (2.00mm) |
|
|
AMPLA4020Q-5R6MTFIXED IND 5.6UH 2.2A 125MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMPLA4020Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 5.6 µH | ±20% | 2.2 A | 3A | Shielded | 125mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
AIUR-16-390KFIXED IND 39UH 800MA 102 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 800 mA | 840mA | Unshielded | 102mOhm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|

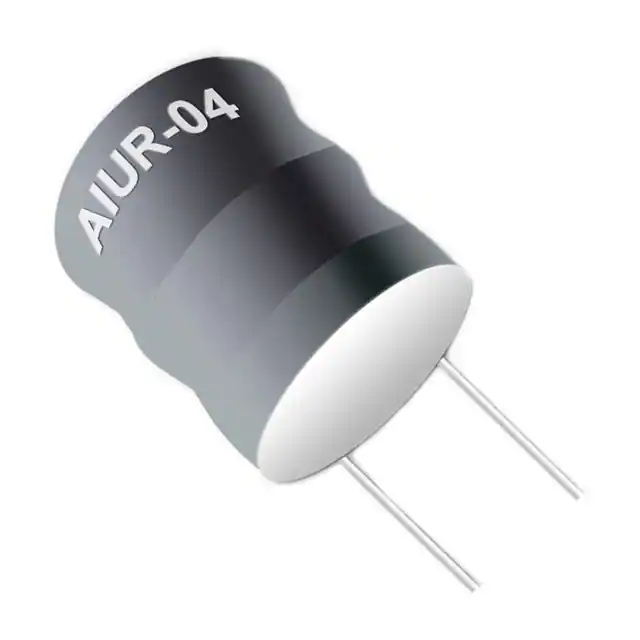

AIUR-04-561JFIXED IND 560UH 200MA 4 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-04 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±5% | 200 mA | 200mA | Unshielded | 4Ohm Max | 30 @ 796kHz | 1.7MHz | - | -25°C ~ 85°C | 796 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.441" (11.20mm) |
