固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

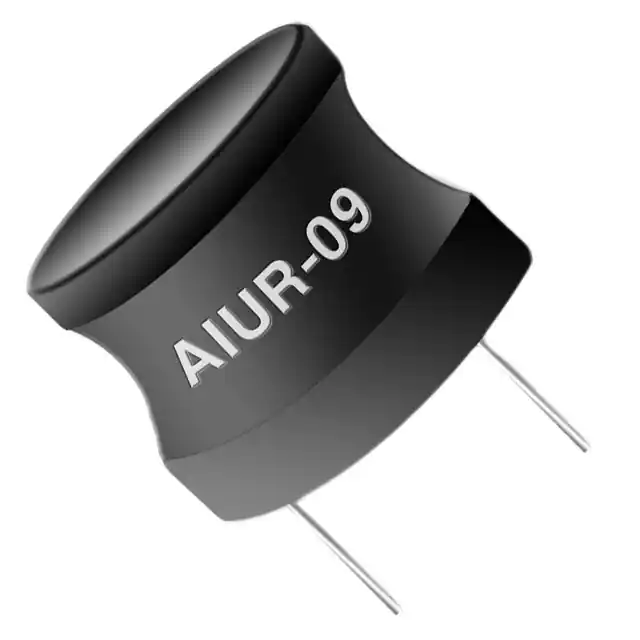

AIUR-09-681KFIXED IND 680UH 450MA 2.4 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-09 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 450 mA | - | Unshielded | 2.4Ohm Max | - | - | - | -55°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
AIUR-09-821KFIXED IND 820UH 430MA 2.8 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-09 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 430 mA | - | Unshielded | 2.8Ohm Max | - | - | - | -55°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
AIUR-09-102KFIXED IND 1MH 360MA 3.3 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-09 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 360 mA | - | Unshielded | 3.3Ohm Max | - | - | - | -55°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
ASPI-0315FS-150M-T2FIXED IND 15UH 1A 300 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0315FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 650 mA | 660mA | Shielded | 455mOhm Max | - | 30MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
AMSLA-7050-105NM-TIND 0.105UH 46A 0.35M Abracon LLC |
0 |
|
规格书 |
AMSLA-7050 | Nonstandard | Tape & Reel (TR) | Active | Molded | Manganese Zinc Ferrite (MnZn) | 105 nH | ±20% | 45 A | 46A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.197" (5.00mm) |
|
|

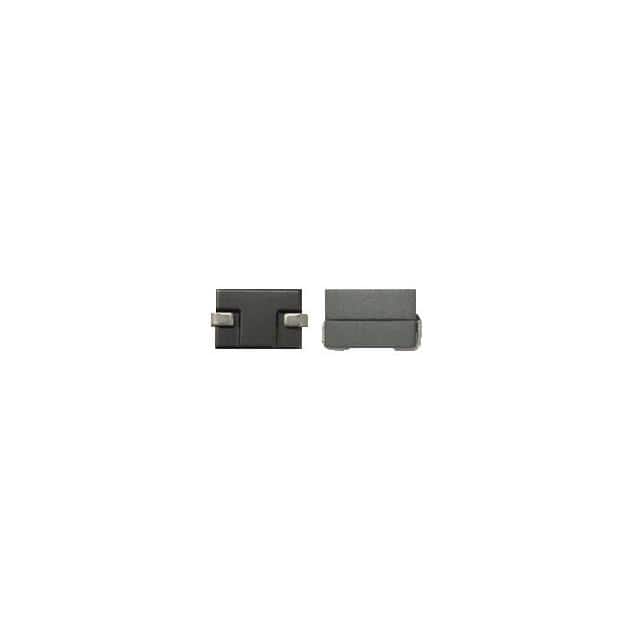

AMSLA-7050-72NM-TIND 0.072UH 58A 0.35M Abracon LLC |
0 |
|
规格书 |
AMSLA-7050 | Nonstandard | Tape & Reel (TR) | Active | Molded | Manganese Zinc Ferrite (MnZn) | 72 nH | ±20% | 45 A | 58A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.197" (5.00mm) |
|
AMSLA-1050-120NM-TIND 0.12UH 50A 0.42M Abracon LLC |
0 |
|
规格书 |
AMSLA-1050 | Nonstandard | Tape & Reel (TR) | Active | Molded | Manganese Zinc Ferrite (MnZn) | 120 nH | ±20% | 50 A | 52A | Shielded | 0.42mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.197" (5.00mm) |
|
|
AMSLA-1050-155NM-TIND 0.155UH 40A 0.42M Abracon LLC |
0 |
|
规格书 |
AMSLA-1050 | Nonstandard | Tape & Reel (TR) | Active | Molded | Manganese Zinc Ferrite (MnZn) | 155 nH | ±20% | 50 A | 40A | Shielded | 0.42mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.197" (5.00mm) |
|
|
AMSLA-1050-85NM-TIND 0.085UH 50A 0.42M Abracon LLC |
0 |
|
规格书 |
AMSLA-1050 | Nonstandard | Tape & Reel (TR) | Active | Molded | Manganese Zinc Ferrite (MnZn) | 85 nH | ±20% | 50 A | 70A | Shielded | 0.42mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.197" (5.00mm) |
|
AIUR-02H-100KFIXED IND 10UH 2A 44 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2 A | 3.4A | Unshielded | 44mOhm Max | 20 @ 2.52MHz | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.472" (12.00mm) |
