固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AISC-0805F-220J-TFIXED IND 22UH 68MA 8 OHM SMD Abracon LLC |
0 |
|
规格书 |
AISC-0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±5% | 68 mA | - | Unshielded | 8Ohm Max | 10 @ 2.5MHz | 20MHz | - | -40°C ~ 125°C | 2.5 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|

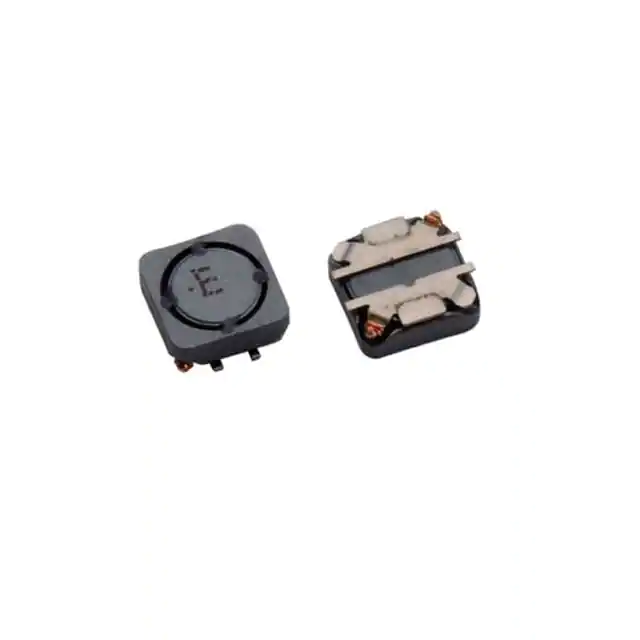

ASPI-0316S-1R5N-T3FIXED IND 1.5UH 1.6A 88 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0316S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.6 A | 1.5A | Shielded | 88mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.059" (1.50mm) |
|
|
ASPI-0316S-1R8N-T3FIXED IND 1.8UH 1.5A 97 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0316S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.8 µH | ±30% | 1.5 A | 1.3A | Shielded | 97mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.059" (1.50mm) |
|
|
ASPI-0316S-2R7N-T3FIXED IND 2.7UH 1.26A 123MOHM SM Abracon LLC |
0 |
|
规格书 |
ASPI-0316S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 1.26 A | 1.2A | Shielded | 123mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.059" (1.50mm) |
|
|
ASPI-0316S-3R9N-T3FIXED IND 3.9UH 1.09A 145MOHM SM Abracon LLC |
0 |
|
规格书 |
ASPI-0316S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.9 µH | ±30% | 1.09 A | 1A | Shielded | 145mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.059" (1.50mm) |
|
|
ASPI-0316S-8R2N-T3FIXED IND 8.2UH 740MA 304MOHM SM Abracon LLC |
0 |
|
规格书 |
ASPI-0316S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 740 mA | 750mA | Shielded | 304mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.059" (1.50mm) |
|
|
ASPI-0316S-120M-T3FIXED IND 12UH 550MA 448MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0316S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 550 mA | 550mA | Shielded | 448mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.059" (1.50mm) |
|

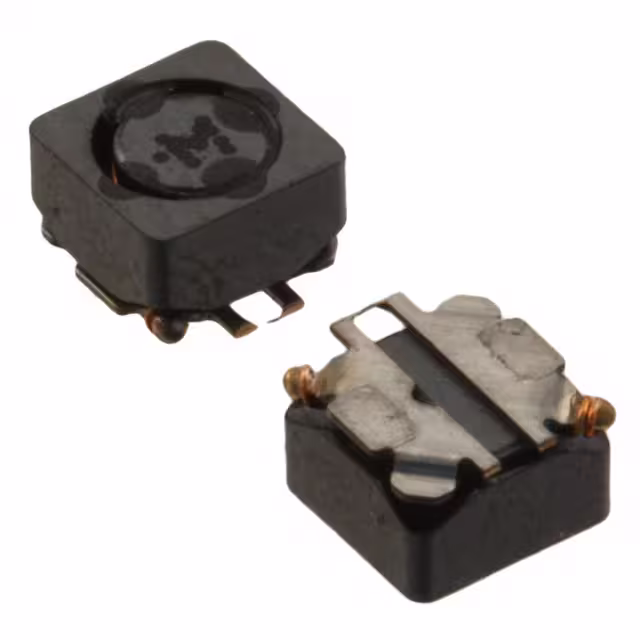

ASPI-0320S-3R3N-T3FIXED IND 3.3UH 1.24A 125MOHM SM Abracon LLC |
0 |
|
规格书 |
ASPI-0320S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 1.24 A | 1.1A | Shielded | 125mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.079" (2.00mm) |
|
|
ASPI-0320S-4R7N-T3FIXED IND 4.7UH 1.1A 157MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0320S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1.1 A | 950mA | Shielded | 157mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.079" (2.00mm) |
|
|
ASPI-0320S-5R6N-T3FIXED IND 5.6UH 1A 180 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0320S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 1 A | 880mA | Shielded | 180mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.079" (2.00mm) |
