固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

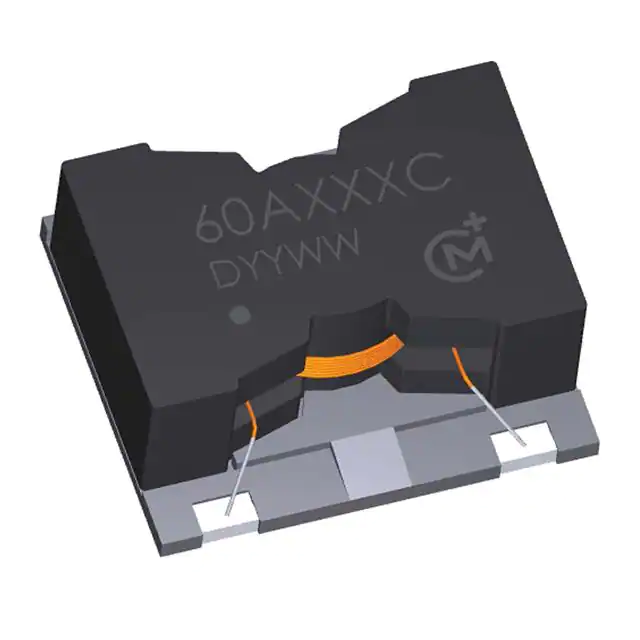

60A363CFIXED IND 36UH 6.4A 20 MOHM SMD Murata Power Solutions Inc. |
276 |
|
规格书 |
6000A | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 36 µH | ±10% | 6.4 A | 8.8A | Unshielded | 20mOhm Max | - | 11MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.748" W (22.00mm x 19.00mm) | 0.472" (12.00mm) |
|
32331CFIXED IND 330UH 780MA 215MOHM TH Murata Power Solutions Inc. |
299 |
|
规格书 |
3200 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 330 µH | ±15% | 780 mA | - | Unshielded | 215mOhm Max | 3.2 @ 800kHz | 2.3MHz | - | -40°C ~ 125°C | 800 kHz | - | Through Hole | - | 0.846" L x 0.394" W (21.50mm x 10.00mm) | 0.945" (24.00mm) |
|

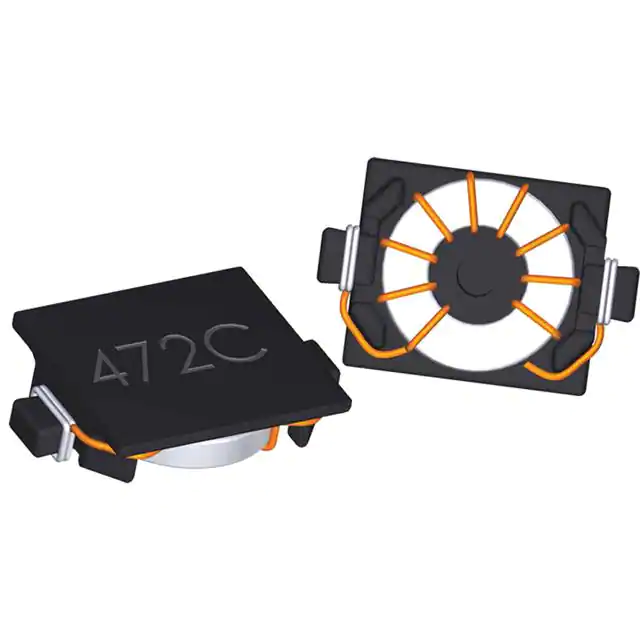

83472CFIXED IND 4.7UH 1.1A 130MOHM SMD Murata Power Solutions Inc. |
4,690 |
|
规格书 |
8300 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 4.7 µH | ±20% | 1.1 A | 1.66A | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | 0.307" L x 0.205" W (7.80mm x 5.20mm) | 0.071" (1.80mm) |
|
60B154CFIXED IND 150UH 6A 38 MOHM SMD Murata Power Solutions Inc. |
285 |
|
规格书 |
6000B | Nonstandard | Tray | Active | Wirewound | - | 150 µH | ±15% | 6 A | - | Unshielded | 38mOhm Max | - | 3.9MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 1.063" L x 0.768" W (27.00mm x 19.50mm) | 0.787" (20.00mm) |
|
|
60B473CFIXED IND 47UH 10.5A 13 MOHM SMD Murata Power Solutions Inc. |
267 |
|
规格书 |
6000B | Nonstandard | Tray | Active | Wirewound | - | 47 µH | ±15% | 10.5 A | - | Unshielded | 13mOhm Max | - | 7.45MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 1.063" L x 0.768" W (27.00mm x 19.50mm) | 0.787" (20.00mm) |
|
1447385CFIXED IND 47UH 8.5A 21 MOHM TH Murata Power Solutions Inc. |
1,953 |
|
规格书 |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 47 µH | ±15% | 8.5 A | - | Unshielded | 21mOhm Max | 33 @ 100kHz | 6.7MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.055" Dia (26.80mm) | 0.610" (15.50mm) |
|
|
1447423CFIXED IND 470UH 2.3A 250 MOHM TH Murata Power Solutions Inc. |
651 |
|
规格书 |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 470 µH | ±10% | 2.3 A | - | Unshielded | 250mOhm Max | 34 @ 50kHz | 2MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.012" Dia (25.70mm) | 0.610" (15.50mm) |
|
|
1422435CFIXED IND 220UH 3.5A 96 MOHM TH Murata Power Solutions Inc. |
354 |
|
规格书 |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 220 µH | ±10% | 3.5 A | - | Unshielded | 96mOhm Max | 22 @ 50kHz | 2.8MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.028" Dia (26.10mm) | 0.610" (15.50mm) |
|
|
1415440CFIXED IND 150UH 4A 69 MOHM TH Murata Power Solutions Inc. |
270 |
|
规格书 |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 150 µH | ±10% | 4 A | - | Unshielded | 69mOhm Max | 24 @ 50kHz | 3.4MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.031" Dia (26.20mm) | 0.610" (15.50mm) |
|
|
1468420CFIXED IND 680UH 2A 300 MOHM TH Murata Power Solutions Inc. |
231 |
|
规格书 |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 680 µH | ±10% | 2 A | - | Unshielded | 300mOhm Max | 23 @ 50kHz | 1.6MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.012" Dia (25.70mm) | 0.610" (15.50mm) |
