固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

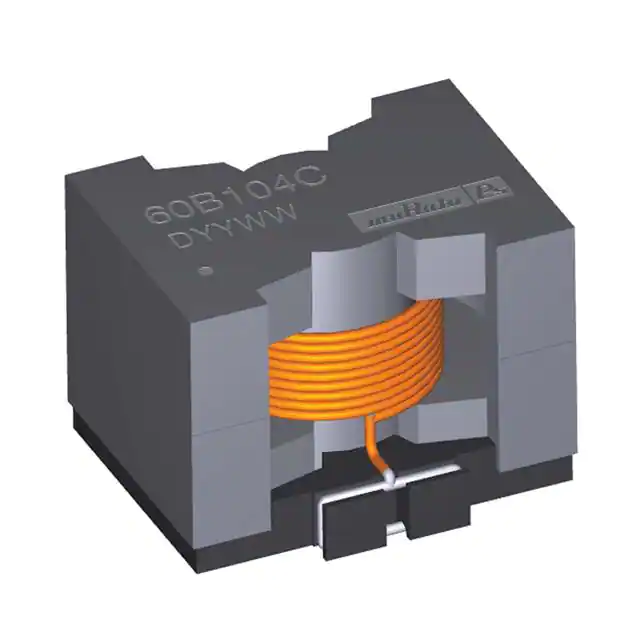

60B224CFIXED IND 220UH 5A 50 MOHM SMD Murata Power Solutions Inc. |
4,020 |
|
规格书 |
6000B | Nonstandard | Tray | Active | Wirewound | - | 220 µH | ±15% | 5 A | - | Unshielded | 50mOhm Max | - | 3.21MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 1.063" L x 0.768" W (27.00mm x 19.50mm) | 0.787" (20.00mm) |
|
|
60B334CFIXED IND 330UH 4A 80 MOHM SMD Murata Power Solutions Inc. |
1,156 |
|
规格书 |
6000B | Nonstandard | Tray | Active | Wirewound | - | 330 µH | ±15% | 4 A | - | Unshielded | 80mOhm Max | - | 2.66MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 1.063" L x 0.768" W (27.00mm x 19.50mm) | 0.787" (20.00mm) |
|
|
60B104CFIXED IND 100UH 7.5A 25 MOHM SMD Murata Power Solutions Inc. |
519 |
|
规格书 |
6000B | Nonstandard | Tray | Active | Wirewound | - | 100 µH | ±15% | 7.5 A | - | Unshielded | 25mOhm Max | - | 4.98MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 1.063" L x 0.768" W (27.00mm x 19.50mm) | 0.787" (20.00mm) |
|
|
60B684CFIXED IND 680UH 3A 135 MOHM SMD Murata Power Solutions Inc. |
379 |
|
规格书 |
6000B | Nonstandard | Tray | Active | Wirewound | - | 680 µH | ±15% | 3 A | - | Unshielded | 135mOhm Max | - | 1.59MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 1.063" L x 0.768" W (27.00mm x 19.50mm) | 0.787" (20.00mm) |
|

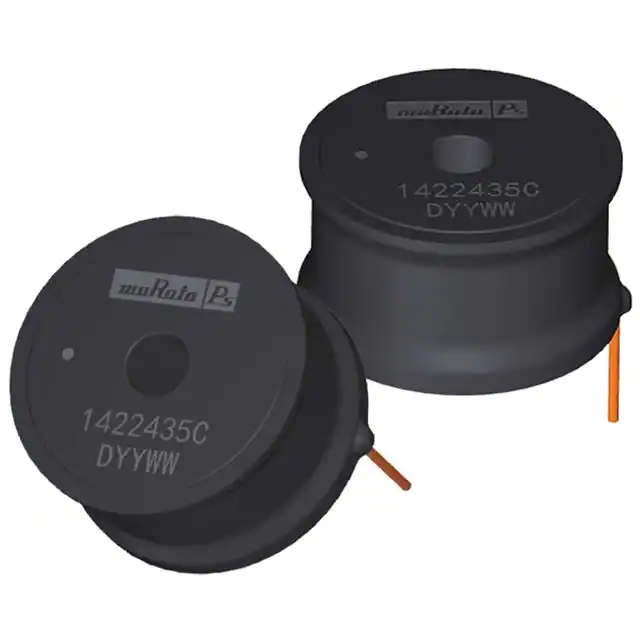

1422311CFIXED IND 22UH 11A 14 MOHM TH Murata Power Solutions Inc. |
1,391 |
|
规格书 |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 22 µH | ±15% | 11 A | - | Unshielded | 14mOhm Max | 64 @ 100kHz | 9.3MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.063" Dia (27.00mm) | 0.610" (15.50mm) |
|
|
1410454CFIXED IND 100UH 5.4A 46 MOHM TH Murata Power Solutions Inc. |
766 |
|
规格书 |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 100 µH | ±10% | 5.4 A | - | Unshielded | 46mOhm Max | 24 @ 100kHz | 4.6MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.039" Dia (26.40mm) | 0.610" (15.50mm) |
|
|
1410516CFIXED IND 1MH 1.6A 460 MOHM TH Murata Power Solutions Inc. |
189 |
|
规格书 |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 1 mH | ±10% | 1.6 A | - | Unshielded | 460mOhm Max | 30 @ 50kHz | 1.4MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.008" Dia (25.60mm) | 0.610" (15.50mm) |
|
11R104CFIXED IND 100UH 350MA 1.1 OHM TH Murata Power Solutions Inc. |
1,967 |
|
规格书 |
1100R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 100 µH | ±10% | 350 mA | - | Unshielded | 1.1Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
|
11R223CFIXED IND 22UH 650MA 270 MOHM TH Murata Power Solutions Inc. |
1,557 |
|
规格书 |
1100R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 22 µH | ±10% | 650 mA | - | Unshielded | 270mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
|
11R224CFIXED IND 220UH 240MA 2.4 OHM TH Murata Power Solutions Inc. |
1,430 |
|
规格书 |
1100R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 220 µH | ±10% | 240 mA | - | Unshielded | 2.4Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
