固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-Height-1.00mm.jpg)
|
DFE252010P-1R2M=P2FIXED IND 1.2UH 2.4A 0.068OHM SM Murata Electronics |
0 |
|
规格书 |
DFE252010P | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 1.2 µH | ±20% | 2.4 A | 3.2A | Shielded | 68mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
1255AY-2R2N=P3FIXED IND 2.2UH 4.7A 16MOHM SMD Murata Electronics |
0 |
|
规格书 |
DG6045C | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 4.7 A | 6.3A | Shielded | 16mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.177" (4.50mm) |
|
FDSD0412-H-R33M=P3FIXED IND 330NH 6.4A 19 MOHM SMD Murata Electronics |
0 |
|
规格书 |
FDSD0412 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 330 nH | ±20% | 6.4 A | 7.5A | Shielded | 19mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.047" (1.20mm) |
|
|
FDSD0412-H-R47M=P3FIXED IND 470NH 6A 23 MOHM SMD Murata Electronics |
0 |
|
规格书 |
FDSD0412 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 470 nH | ±20% | 6 A | 6.5A | Shielded | 23mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.047" (1.20mm) |
|
|
FDSD0420-H-R47M=P3FIXED IND 470NH 6.8A 18 MOHM SMD Murata Electronics |
0 |
|
规格书 |
FDSD0420 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 470 nH | ±20% | 6.8 A | 9.4A | Shielded | 18mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.079" (2.00mm) |
|

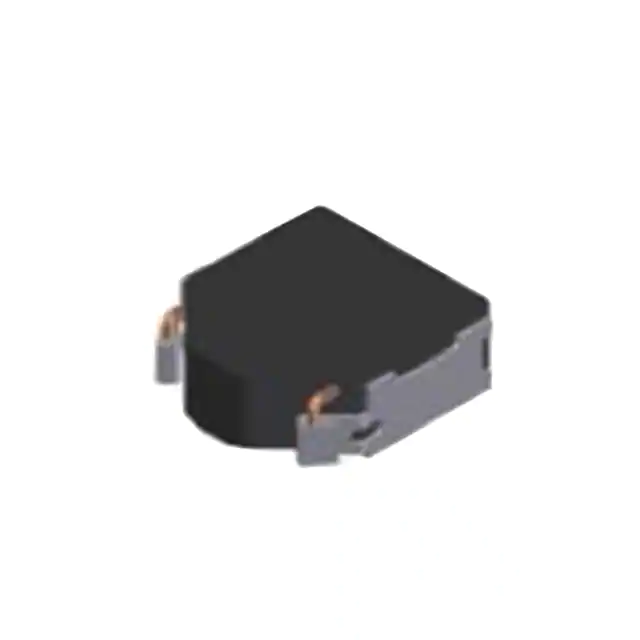

FDSD0512-H-1R0M=P3FIXED IND 1UH 4A 44 MOHM SMD Murata Electronics |
0 |
|
规格书 |
FDSD0512 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 4 A | 6.1A | Shielded | 44mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.193" W (5.20mm x 4.90mm) | 0.047" (1.20mm) |
|
|
FDSD0512-H-4R7M=P3FIXED IND 4.7UH 2A 180 MOHM SMD Murata Electronics |
0 |
|
规格书 |
FDSD0512 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 2 A | 3A | Shielded | 180mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.193" W (5.20mm x 4.90mm) | 0.047" (1.20mm) |
|
|
FDSD0512-H-K2R2M=P3FIXED IND 2.2UH 3.2A 68 MOHM SMD Murata Electronics |
0 |
|
规格书 |
FDSD0512 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 3.2 A | 4.2A | Shielded | 68mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.193" W (5.20mm x 4.90mm) | 0.047" (1.20mm) |
|
|
FDSD0518-H-3R3M=P3FIXED IND 3.3UH 3.4A 58 MOHM SMD Murata Electronics |
0 |
|
规格书 |
FDSD0518 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 3.4 A | 4.6A | Shielded | 58mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.193" W (5.20mm x 4.90mm) | 0.071" (1.80mm) |
|
|
FDSD0518-H-4R7M=P3FIXED IND 4.7UH 3A 73 MOHM SMD Murata Electronics |
0 |
|
规格书 |
FDSD0518 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 3 A | 3.9A | Shielded | 73mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.193" W (5.20mm x 4.90mm) | 0.071" (1.80mm) |
