固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

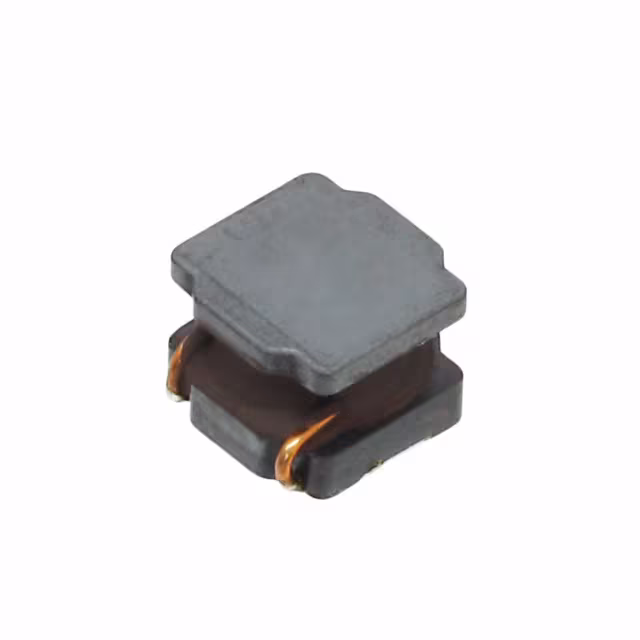

LQH6PPN1R5N43LFIXED IND 1.5UH 4.15A 10MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±30% | 4.15 A | 6.5A | Shielded | 10mOhm | - | 60MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

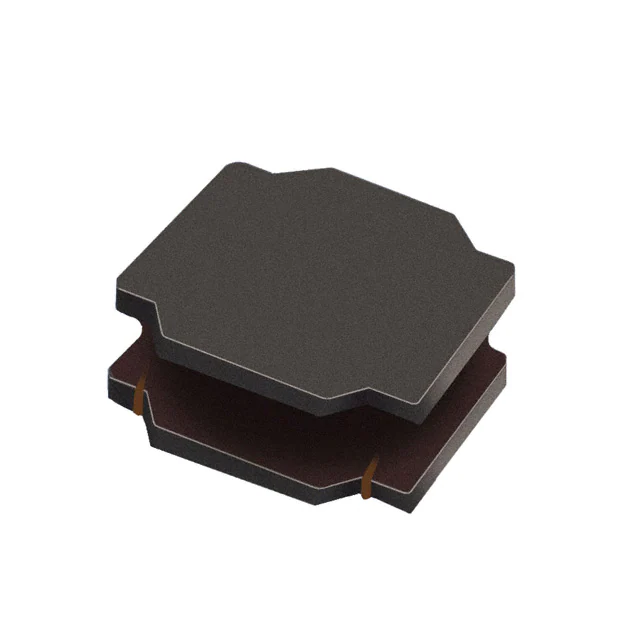

LQH88PN1R5N38LFIXED IND 1.5UH 7.1A 8 MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQH88 | 3131 (8080 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±30% | 7.1 A | 8.5A | Shielded | 8mOhm | - | 60MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 3131 (8080 Metric) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
|

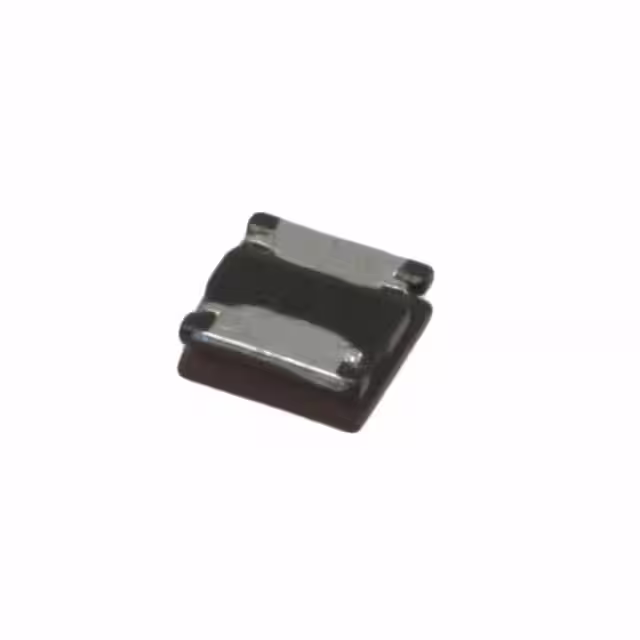

LQH3NPN221MG0LFIXED IND 220UH 130MA 16.8OHM SM Murata Electronics |
0 |
|
- |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 130 mA | 100mA | Shielded | 16.8Ohm Max | - | 8.5MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|

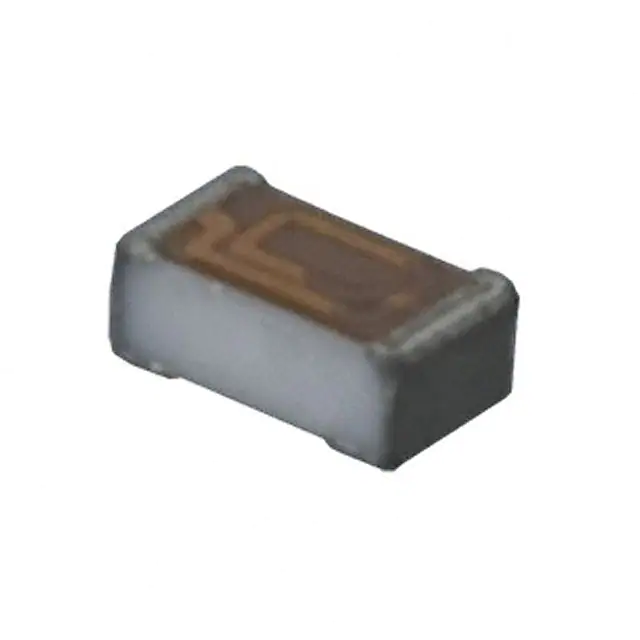

LQP15MN3N2W02DFIXED IND 3.2NH 190MA 400MOHM SM Murata Electronics |
0 |
|
规格书 |
LQP15 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thick Film | - | 3.2 nH | ±0.05nH | 190 mA | - | - | 400mOhm Max | 13 @ 500MHz | 6GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.018" (0.45mm) |
|
LQH3NPN1R0MMREFIXED IND 1UH 2.15A 50.4MOHM SMD Murata Electronics |
0 |
|
- |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.15 A | 1.6A | Shielded | 50.4mOhm Max | - | 135MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
LQM2HPN1R0MJCLFIXED IND 1UH 1.5A 108 MOHM SMD Murata Electronics |
0 |
|
- |
LQM2 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 µH | ±20% | 1.5 A | - | Shielded | 108mOhm Max | - | 50MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQM2HPN2R2NJCLFIXED IND 2.2UH 1A 219 MOHM SMD Murata Electronics |
0 |
|
- |
LQM2 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 2.2 µH | ±30% | 1 A | - | Shielded | 219mOhm Max | - | 30MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

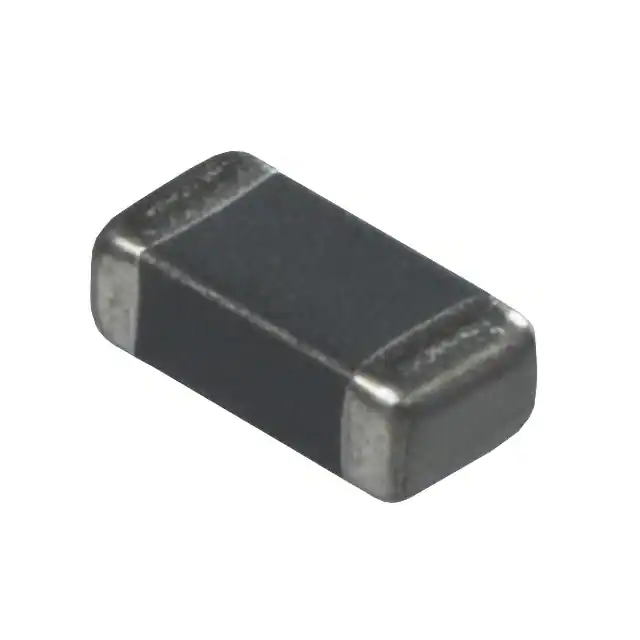

LQM31PN1R0MC0LFIXED IND 1UH 1.1A 175 MOHM SMD Murata Electronics |
0 |
|
- |
LQM31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1 µH | ±20% | 1.1 A | - | Shielded | 175mOhm Max | - | 70MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.037" (0.95mm) |
|
|
LQM31PN1R5MC0LFIXED IND 1.5UH 1A 213 MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQM31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1.5 µH | ±20% | 1 A | - | Shielded | 213mOhm Max | - | 60MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.037" (0.95mm) |
|
|
LQM31PN2R2MC0LFIXED IND 2.2UH 900MA 313MOHM SM Murata Electronics |
0 |
|
规格书 |
LQM31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 2.2 µH | ±20% | 900 mA | - | Shielded | 313mOhm Max | - | 50MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.037" (0.95mm) |
