固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQM31PNR47MC0LFIXED IND 470NH 1.3A 107MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQM31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 470 nH | ±20% | 1.3 A | - | Shielded | 107mOhm Max | - | 90MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.037" (0.95mm) |
|

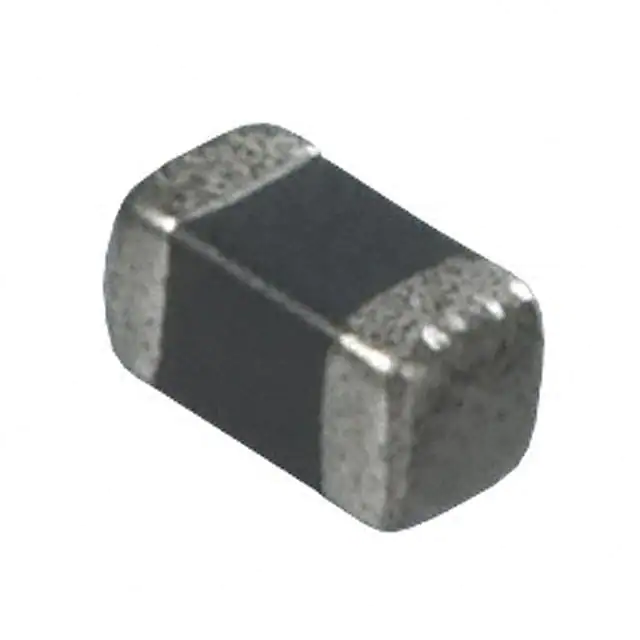

LQB18NNR27N10DFIXED IND 270NH 450MA 450MOHM SM Murata Electronics |
0 |
|
规格书 |
LQB18 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 270 nH | ±30% | 450 mA | - | Shielded | 450mOhm Max | 25 @ 25MHz | 80MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQB18NNR33K10DFIXED IND 330NH 450MA 450MOHM SM Murata Electronics |
0 |
|
规格书 |
LQB18 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 330 nH | ±10% | 450 mA | - | Shielded | 450mOhm Max | 25 @ 25MHz | 80MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
LQH44PN100MGRLFIXED IND 10UH 660MA 324MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 660 mA | 800mA | Shielded | 324mOhm Max | - | 13MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
LQH44PN150MGRLFIXED IND 15UH 540MA 504MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 540 mA | 640mA | Shielded | 504mOhm Max | - | 10MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
LQH44PN1R0NGRLFIXED IND 1UH 1.3A 74.4 MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.3 A | 1.7A | Shielded | 74.4mOhm Max | - | 50MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
LQH44PN220MGRLFIXED IND 22UH 450MA 684MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 450 mA | 500mA | Shielded | 684mOhm Max | - | 8MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
LQH44PN470MGRLFIXED IND 47UH 240MA 2.04OHM SMD Murata Electronics |
0 |
|
规格书 |
LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 240 mA | 360mA | Shielded | 2.04Ohm Max | - | 6MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
LQH44PN4R7MGRLFIXED IND 4.7UH 960MA 156MOHM SM Murata Electronics |
0 |
|
规格书 |
LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 960 mA | 1.2A | Shielded | 156mOhm Max | - | 17MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
-Height-1.20mm.jpg)
|
1239AS-H-6R0M=P2FIXED IND 6UH 1.1A 275 MOHM SMD Murata Electronics |
0 |
|
规格书 |
DFE252012C | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 6 µH | ±20% | 1.1 A | 1.4A | Shielded | 275mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
