| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

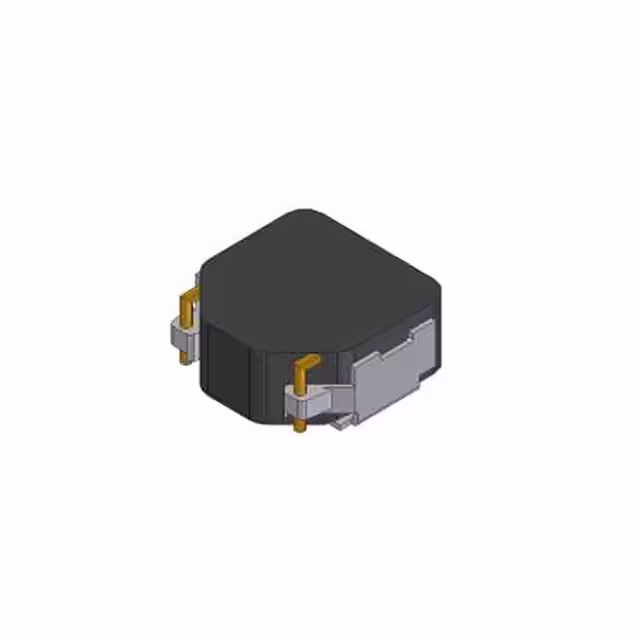

DFEG10040D-1R0M=P3FIXED IND 1UH 17A 3.5 MOHM SMD Murata Electronics |
0 |
|
- |
DFEG10040D | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron Powder | 1 µH | ±20% | 17 A | 24A | Shielded | 3.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.157" (4.00mm) |
|
|
DFEG10040D-220M=P3FIXED IND 22UH 3.8A 70 MOHM SMD Murata Electronics |
0 |
|
- |
DFEG10040D | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron Powder | 22 µH | ±20% | 3.8 A | 5.3A | Shielded | 70mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.157" (4.00mm) |
|
|
DFEG10040D-4R7M=P3FIXED IND 4.7UH 8.8A 16MOHM SMD Murata Electronics |
0 |
|
- |
DFEG10040D | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron Powder | 4.7 µH | ±20% | 8.8 A | 9.3A | Shielded | 16mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.157" (4.00mm) |
|
DFEH10040D-100M=P3FIXED IND 10UH 5.7A 33 MOHM SMD Murata Electronics |
0 |
|
规格书 |
DFEH10040D | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron Powder | 10 µH | ±20% | 5.7 A | 7.3A | Shielded | 33mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 MHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.157" (4.00mm) |
|
|
DFEH10040D-150M=P3FIXED IND 15UH 5.2A 47 MOHM SMD Murata Electronics |
0 |
|
规格书 |
DFEH10040D | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron Powder | 15 µH | ±20% | 5.2 A | 5.9A | Shielded | 47mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 MHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.157" (4.00mm) |
|
|
DFEH10040D-1R0M=P3FIXED IND 1UH 17A 3.5 MOHM SMD Murata Electronics |
0 |
|
规格书 |
DFEH10040D | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron Powder | 1 µH | ±20% | 17 A | 24A | Shielded | 3.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 MHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.157" (4.00mm) |
|
|
DFEH10040D-1R5M=P3FIXED IND 1.5UH 14A 5 MOHM SMD Murata Electronics |
0 |
|
规格书 |
DFEH10040D | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron Powder | 1.5 µH | ±20% | 14 A | 19A | Shielded | 5mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 MHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.157" (4.00mm) |
|
|
DFEH10040D-220M=P3FIXED IND 22UH 3.8A 70 MOHM SMD Murata Electronics |
0 |
|
规格书 |
DFEH10040D | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron Powder | 22 µH | ±20% | 3.8 A | 5.3A | Shielded | 70mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 MHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.157" (4.00mm) |
|
|
DFEH10040D-2R2M=P3FIXED IND 2.2UH 12A 7.5 MOHM Murata Electronics |
0 |
|
规格书 |
DFEH10040D | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron Powder | 2.2 µH | ±20% | 12 A | 14A | Shielded | 7.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 MHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.157" (4.00mm) |
|
|
DFEH10040D-3R3M=P3FIXED IND 3.3UH 10A 12 MOHM SMD Murata Electronics |
0 |
|
规格书 |
DFEH10040D | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron Powder | 3.3 µH | ±20% | 10 A | 13A | Shielded | 12mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 MHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.157" (4.00mm) |
