固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

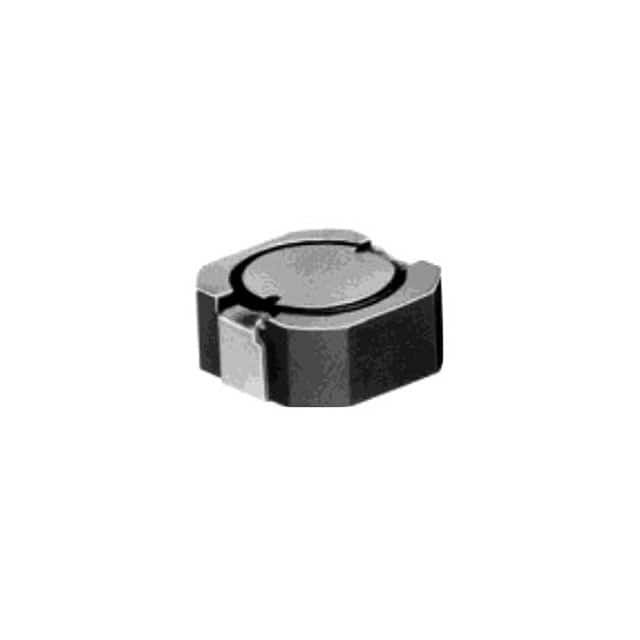

#B953AS-121M=P3FIXED IND 120UH 1.3A 185MOHM SMD Murata Electronics |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 1.3 A | 1.3A | Shielded | 185mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.268" (6.80mm) |
|
1225AS-H-3R3M=P2FIXED IND 3.3UH 1.5A 96 MOHM SMD Murata Electronics |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.5 A | 1A | Shielded | 96mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.047" (1.20mm) |
|
|
1225AS-H-6R8M=P2FIXED IND 6.8UH 1.1A 204MOHM SMD Murata Electronics |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.1 A | 720mA | Shielded | 204mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.047" (1.20mm) |
|

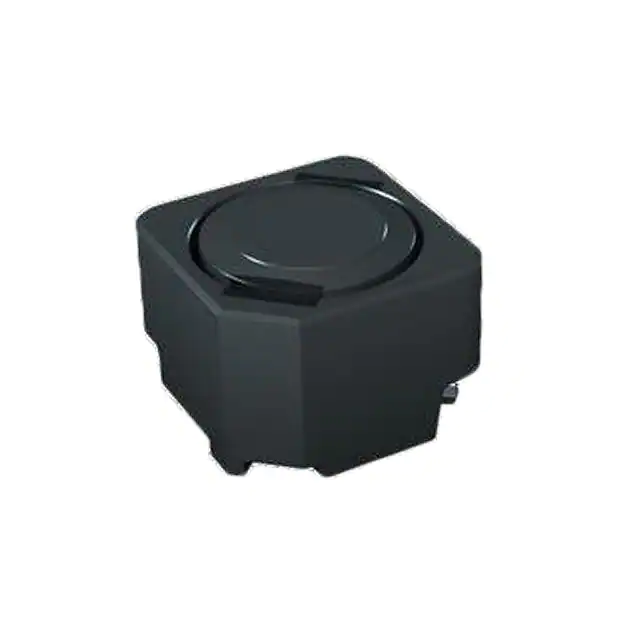

MBH7045C-100MA=P3FIXED IND 10UH 2.5A 43.2MOHM SMD Murata Electronics |
0 |
|
规格书 |
MBH7045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.5 A | 2A | Shielded | 43.2mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.189" (4.80mm) |
|
|
MBH7045C-101MA=P3FIXED IND 100UH 1A 300 MOHM SMD Murata Electronics |
0 |
|
规格书 |
MBH7045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1 A | 630mA | Shielded | 300mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.189" (4.80mm) |
|
|
MBH7045C-220MB=P3FIXED IND 22UH 1.8A 84 MOHM SMD Murata Electronics |
0 |
|
规格书 |
MBH7045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.8 A | 1.8A | Shielded | 84mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.189" (4.80mm) |
|
|
MBH7045C-221MA=P3FIXED IND 220UH 650MA 624MOHM SM Murata Electronics |
0 |
|
规格书 |
MBH7045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 650 mA | 450mA | Shielded | 624mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.189" (4.80mm) |
|
|
MBH7045C-221MB=P3FIXED IND 220UH 550MA 828MOHM SM Murata Electronics |
0 |
|
规格书 |
MBH7045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 550 mA | 560mA | Shielded | 828mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.189" (4.80mm) |
|
|
MBH7045C-3R3NA=P3FIXED IND 3.3UH 3.5A 22.8MOHM SM Murata Electronics |
0 |
|
规格书 |
MBH7045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.5 A | 3.4A | Shielded | 22.8mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.189" (4.80mm) |
|
|
MBH7045C-470MB=P3FIXED IND 47UH 1.1A 180MOHM SMD Murata Electronics |
0 |
|
规格书 |
MBH7045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.1 A | 1.2A | Shielded | 180mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.189" (4.80mm) |
