固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBH7045C-4R7NA=P3FIXED IND 4.7UH 3.2A 27.6MOHM SM Murata Electronics |
0 |
|
规格书 |
MBH7045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 3.2 A | 2.7A | Shielded | 27.6mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.189" (4.80mm) |
|
|
MBH7045C-680MA=P3FIXED IND 68UH 1.1A 210MOHM SMD Murata Electronics |
0 |
|
规格书 |
MBH7045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.1 A | 780mA | Shielded | 210mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.189" (4.80mm) |
|
|
MBH7045C-6R8NA=P3FIXED IND 6.8UH 2.7A 33.6MOHM SM Murata Electronics |
0 |
|
规格书 |
MBH7045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 2.7 A | 2.5A | Shielded | 33.6mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.189" (4.80mm) |
|

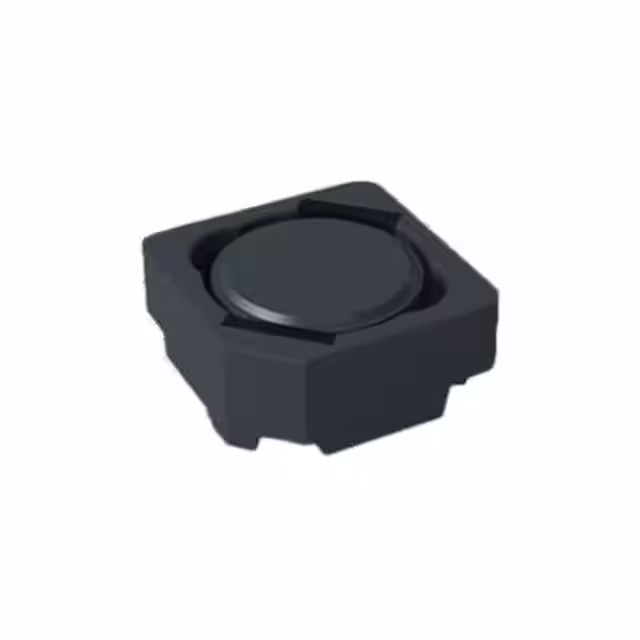

MBH10145C-100MA=P3FIXED IND 10UH 3.3A 37 MOHM SMD Murata Electronics |
0 |
|
规格书 |
MBH10145C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.3 A | 3.1A | Shielded | 37mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
MBH10145C-150MA=P3FIXED IND 15UH 2.5A 48 MOHM SMD Murata Electronics |
0 |
|
规格书 |
MBH10145C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.5 A | 2.6A | Shielded | 48mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
MBH10145C-220MA=P3FIXED IND 22UH 2.3A 60 MOHM SMD Murata Electronics |
0 |
|
规格书 |
MBH10145C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.3 A | 2.2A | Shielded | 60mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
MBH10145C-470MA=P3FIXED IND 47UH 1.7A 100MOHM SMD Murata Electronics |
0 |
|
规格书 |
MBH10145C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.7 A | 1.6A | Shielded | 100mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
MBH10145C-5R6NA=P3FIXED IND 5.6UH 3.7A 22MOHM SMD Murata Electronics |
0 |
|
规格书 |
MBH10145C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 3.7 A | 4.1A | Shielded | 22mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
DFEG10040D-100M=P3FIXED IND 10UH 5.7A 33 MOHM SMD Murata Electronics |
0 |
|
- |
DFEG10040D | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron Powder | 10 µH | ±20% | 5.7 A | 7.3A | Shielded | 33mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.157" (4.00mm) |
|
|
DFEG10040D-150M=P3FIXED IND 15UH 5.2A 47 MOHM SMD Murata Electronics |
0 |
|
- |
DFEG10040D | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron Powder | 15 µH | ±20% | 5.2 A | 5.9A | Shielded | 47mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.157" (4.00mm) |
