固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBH6045C-150MA=P3FIXED IND Murata Electronics |
0 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DD1217AS-H-180M=P3FIXED IND 18UH 2.9A 76.8MOHM SMD Murata Electronics |
0 |
|
规格书 |
DEM8045C | Nonstandard | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 2.9 A | 4.3A | Shielded | 76.8mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|

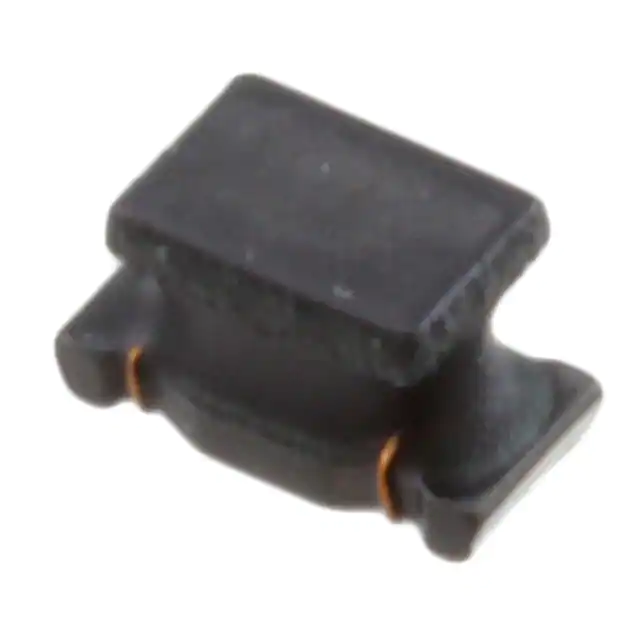

LQH31HNR29J03LFIXED IND 290NH 420MA 221MOHM SM Murata Electronics |
0 |
|
规格书 |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 290 nH | ±5% | 420 mA | - | Unshielded | 221mOhm Max | 60 @ 100MHz | 360MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31HNR61J03LFIXED IND 610NH 250MA 624MOHM SM Murata Electronics |
0 |
|
规格书 |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 610 nH | ±5% | 250 mA | - | Unshielded | 624mOhm Max | 60 @ 100MHz | 240MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31HNR75J03LFIXED IND 750NH 190MA 1.027 OHM Murata Electronics |
0 |
|
规格书 |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 750 nH | ±5% | 190 mA | - | Unshielded | 1.027Ohm Max | 60 @ 100MHz | 220MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
1231AS-H-1R5N=P3FIXED IND 1.5UH 2.7A 42 MOHM SMD Murata Electronics |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 2.7 A | 2.1A | Shielded | 42mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.154" W (3.70mm x 3.90mm) | 0.071" (1.80mm) |
|
|
DD1217AS-H-6R8N=P3FIXED IND 6.8UH 4.8A 27.6MOHM SM Murata Electronics |
0 |
|
规格书 |
DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 4.8 A | 7A | Shielded | 27.6mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
|
DD1217AS-H-8R2M=P3FIXED IND 8.2UH 4.5A 33.6MOHM SM Murata Electronics |
0 |
|
规格书 |
DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 4.5 A | 6.4A | Shielded | 33.6mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
|
DD1217AS-H-100M=P3FIXED IND 10UH 3.9A 39.6MOHM SMD Murata Electronics |
0 |
|
规格书 |
DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.9 A | 5.7A | Shielded | 39.6mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
|
DD1217AS-H-150M=P3FIXED IND 15UH 3.5A 52.8MOHM SMD Murata Electronics |
0 |
|
规格书 |
DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.5 A | 4.4A | Shielded | 52.8mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
