固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH31HN54NK03LFIXED IND 54NH 920MA 45.5MOHM SM Murata Electronics |
0 |
|
规格书 |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 54 nH | ±10% | 920 mA | - | Unshielded | 45.5mOhm Max | 50 @ 100MHz | 800MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31HNR14K03LFIXED IND 145NH 700MA 79.3 MOHM Murata Electronics |
0 |
|
规格书 |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 145 nH | ±10% | 700 mA | - | Unshielded | 79.3mOhm Max | 60 @ 100MHz | 500MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31HNR39K03LFIXED IND 390NH 330MA 338MOHM SM Murata Electronics |
0 |
|
规格书 |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 390 nH | ±10% | 330 mA | - | Unshielded | 338mOhm Max | 60 @ 100MHz | 300MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31HNR50K03LFIXED IND 500NH 260MA 572MOHM SM Murata Electronics |
0 |
|
规格书 |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 500 nH | ±10% | 260 mA | - | Unshielded | 572mOhm Max | 60 @ 100MHz | 270MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31HNR61K03LFIXED IND 610NH 250MA 624MOHM SM Murata Electronics |
0 |
|
规格书 |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 610 nH | ±10% | 250 mA | - | Unshielded | 624mOhm Max | 60 @ 100MHz | 240MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31HNR88K03LFIXED IND 880NH 180MA 860MOHM SM Murata Electronics |
0 |
|
规格书 |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 880 nH | ±10% | 180 mA | - | Unshielded | 860mOhm Max | 60 @ 100MHz | 200MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|

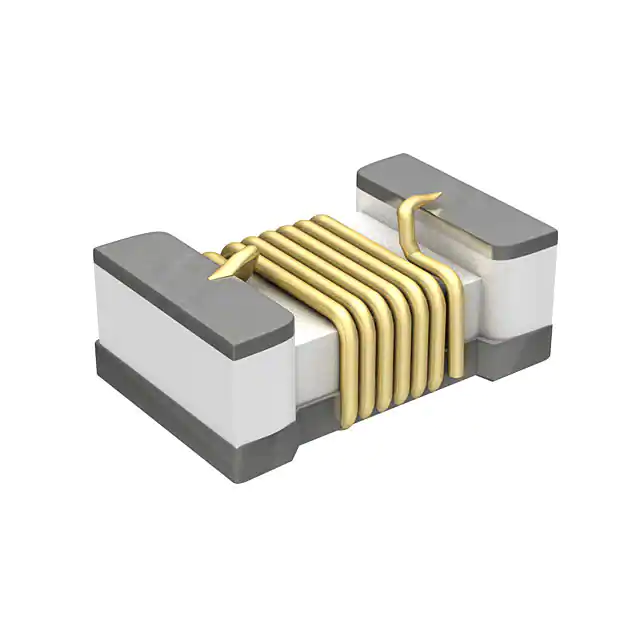

LQW03AW3N1C00DFIXED IND 3.1NH 720MA 70MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 3.1 nH | ±0.2nH | 720 mA | - | Unshielded | 70mOhm Max | 48 @ 900MHz | 12GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|
|
LQW03AW3N2C00DFIXED IND 3.2NH 580MA 80MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 3.2 nH | ±0.2nH | 580 mA | - | Unshielded | 80mOhm Max | 48 @ 900MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|
|
LQW03AW3N4C00DFIXED IND 3.4NH 440MA 150MOHM SM Murata Electronics |
0 |
|
规格书 |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 3.4 nH | ±0.2nH | 440 mA | - | Unshielded | 150mOhm Max | 43 @ 900MHz | 11GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|
|
LQW03AW3N7C00DFIXED IND 3.7NH 340MA 230MOHM SM Murata Electronics |
0 |
|
规格书 |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 3.7 nH | ±0.2nH | 340 mA | - | Unshielded | 230mOhm Max | 38 @ 900MHz | 11GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
