固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

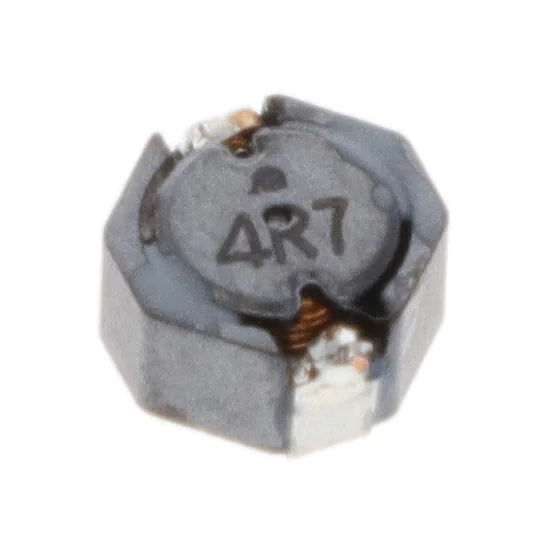

#A915AY-4R7M=P3FIXED IND 4.7UH 2.01A 0.045OHM Murata Electronics |
0 |
|
规格书 |
D53LC | 2020 (5050 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.01 A | 1.87A | Shielded | 45mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
|
MDH7045C-1R5NB=P3FIXED IND 1.5UH 4.3A 10MOHM SMD Murata Electronics |
0 |
|
规格书 |
MDH7045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 4.3 A | 7.1A | Shielded | 10mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
|
MDH7045C-3R3NB=P3FIXED IND 3.3UH 3.4A 16MOHM SMD Murata Electronics |
0 |
|
规格书 |
MDH7045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.4 A | 5A | Shielded | 16mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
1229AS-H-R68N=P3FIXED IND 680NH 2.25A 52MOHM SMD Murata Electronics |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 680 nH | ±30% | 2.25 A | 2.5A | Shielded | 52mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.154" W (3.70mm x 3.90mm) | 0.047" (1.20mm) |
|
|
1229AS-H-1R0N=P3FIXED IND 1UH 1.85A 65 MOHM SMD Murata Electronics |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.85 A | 2.05A | Shielded | 65mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.154" W (3.70mm x 3.90mm) | 0.047" (1.20mm) |
|
|
1229AS-H-1R5N=P3FIXED IND 1.5UH 1.8A 75 MOHM SMD Murata Electronics |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.8 A | 1.65A | Shielded | 75mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.154" W (3.70mm x 3.90mm) | 0.047" (1.20mm) |
|
LQW03AW5N4C00DFIXED IND 5.4NH 420MA 210MOHM SM Murata Electronics |
0 |
|
规格书 |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 5.4 nH | ±0.2nH | 420 mA | - | Unshielded | 210mOhm Max | 46 @ 900MHz | 8.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|
|
LQW03AW5N6C00DFIXED IND 5.6NH 330MA 330MOHM SM Murata Electronics |
0 |
|
规格书 |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 5.6 nH | ±0.2nH | 330 mA | - | Unshielded | 330mOhm Max | 37 @ 900MHz | 8.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|
|
LQW03AW5N8C00DFIXED IND 5.8NH 460MA 160MOHM SM Murata Electronics |
0 |
|
规格书 |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 5.8 nH | ±0.2nH | 460 mA | - | Unshielded | 160mOhm Max | 47 @ 900MHz | 8.8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|
|
LQW03AW6N8C00DFIXED IND 6.8NH 460MA 180MOHM SM Murata Electronics |
0 |
|
规格书 |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 6.8 nH | ±0.2nH | 460 mA | - | Unshielded | 180mOhm Max | 42 @ 900MHz | 7.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
