固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B1134AS-6R8N=P3EMC Murata Electronics |
0 |
|
- |
DS84LCB | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Ferrite | 6.8 µH | ±30% | 3.3 A | 4.2A | Shielded | 43mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.157" (4.00mm) |
|
|
B1134AS-150M=P3EMC Murata Electronics |
0 |
|
- |
DS84LCB | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Ferrite | 15 µH | ±20% | 2.3 A | 2.8A | Shielded | 80mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.157" (4.00mm) |
|
|
B1134AS-101M=P3EMC Murata Electronics |
0 |
|
- |
DS84LCB | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Ferrite | 100 µH | ±20% | 930 mA | 1.1A | Shielded | 460mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.157" (4.00mm) |
|
LQH2HPN150MGRLFIXED IND 15UH 560MA 1.11OHM SMD Murata Electronics |
0 |
|
规格书 |
LQH2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 560 mA | 570mA | Shielded | 1.11Ohm Max | - | 20MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQH2HPNR68MGRLFIXED IND 680NH 2.33A 66MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQH2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±20% | 2.33 A | 2.43A | Shielded | 66mOhm Max | - | 110MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
1255AY-3R3N=P3FIXED IND 3.3UH 4.4A 21MOHM SMD Murata Electronics |
1 |
|
规格书 |
DG6045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 4.4 A | 5.2A | Shielded | 21mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.177" (4.50mm) |
|
LQH43CN151K03LFIXED IND 150UH 130MA 3.5OHM SMD Murata Electronics |
0 |
|
规格书 |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 130 mA | - | Unshielded | 3.5Ohm Max | - | 5.5MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|

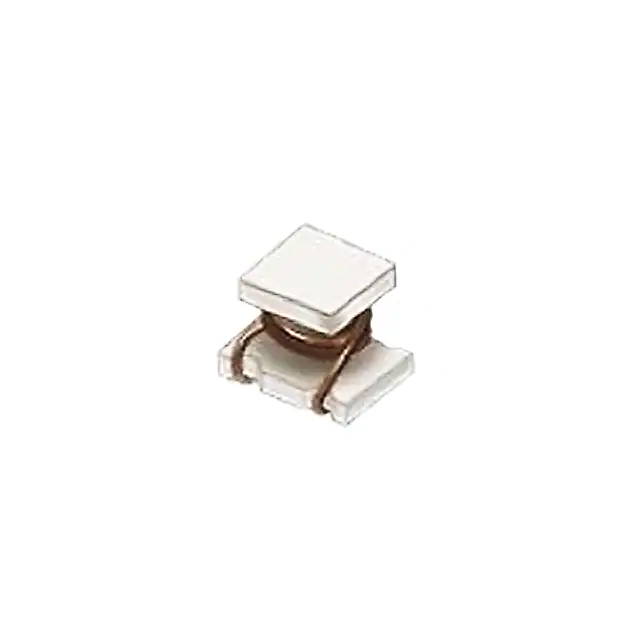

LQW2BHNR15G03LFIXED IND 150NH 260MA 0.68OHM SM Murata Electronics |
0 |
|
规格书 |
LQW2 | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Non-Magnetic | 150 nH | ±2% | 260 mA | - | Unshielded | 680mOhm Max | 30 @ 150MHz | 350MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.059" W (2.00mm x 1.50mm) | 0.070" (1.78mm) |
|
|
1255AY-150M=P3FIXED IND 15UH 2.4A 63 MOHM SMD Murata Electronics |
0 |
|
规格书 |
DG6045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.4 A | 2.5A | Shielded | 63mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.177" (4.50mm) |
|
|
1255AY-1R0N=P3FIXED IND 1UH 6.5A 10 MOHM SMD Murata Electronics |
0 |
|
规格书 |
DG6045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 6.5 A | 9.5A | Shielded | 10mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.177" (4.50mm) |
