上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1264EY-220M=P3FIXED IND 22UH 1.8A 110 MOHM SMD Murata Electronics |
0 |
|
规格书 |
DG6050C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.8 A | 2.3A | Shielded | 110mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.197" (5.00mm) |
|
|
1264EY-330M=P3FIXED IND 33UH 1.4A 170 MOHM SMD Murata Electronics |
0 |
|
规格书 |
DG6050C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.4 A | 1.9A | Shielded | 170mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.197" (5.00mm) |
|
|
1264EY-3R3N=P3FIXED IND 3.3UH 4.8A 21MOHM SMD Murata Electronics |
0 |
|
规格书 |
DG6050C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 4.8 A | 6.5A | Shielded | 21mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.197" (5.00mm) |
.jpg)
|

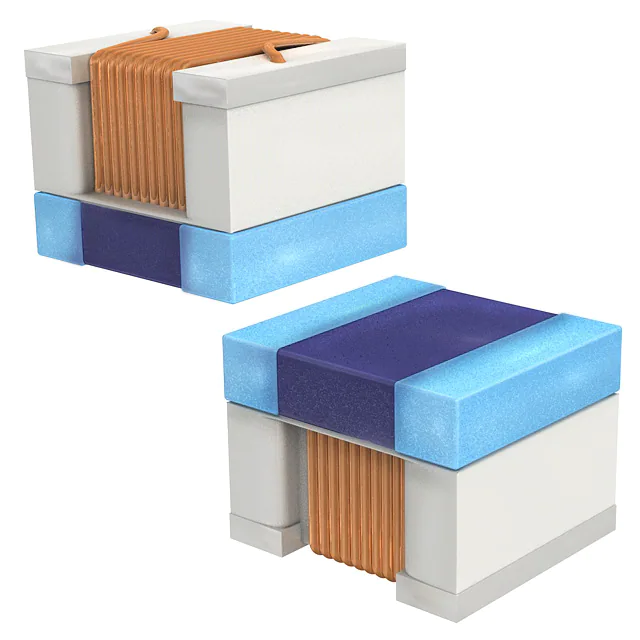

LQW2UAS47NF0CLFIXED IND 47NH 1A 160 MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 47 nH | ±1% | 1 A | - | Unshielded | 160mOhm Max | 65 @ 350MHz | 1.5GHz | - | -40°C ~ 85°C | 50 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
|
LQW2UAS68NF0CLFIXED IND 68NH 1A 200 MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 68 nH | ±1% | 1 A | - | Unshielded | 200mOhm Max | 65 @ 350MHz | 1.3GHz | - | -40°C ~ 85°C | 50 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
|
LQW2UASR12F0CLFIXED IND 120NH 650MA 630MOHM SM Murata Electronics |
0 |
|
规格书 |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 120 nH | ±1% | 650 mA | - | Unshielded | 630mOhm Max | 60 @ 350MHz | 950MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
|
LQW2UASR15F0CLFIXED IND 150NH 580MA 700MOHM SM Murata Electronics |
0 |
|
规格书 |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 150 nH | ±1% | 580 mA | - | Unshielded | 700mOhm Max | 45 @ 100MHz | 850MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
|
LQW2UASR91F0CLFIXED IND 910NH 380MA 1.68OHM SM Murata Electronics |
0 |
|
规格书 |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 910 nH | ±1% | 380 mA | - | Unshielded | 1.68Ohm Max | 35 @ 50MHz | 320MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
FDSD0420W-H-150M=P3FIXED IND Murata Electronics |
0 |
|
规格书 |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FDSD0420W-H-220M=P3FIXED IND Murata Electronics |
0 |
|
规格书 |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
