固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH3NPZ4R7MGRLFIXED IND 4.7UH 910MA 168MOHM SM Murata Electronics |
0 |
|
规格书 |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 910 mA | 850mA | Shielded | 168mOhm Max | - | 27MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|

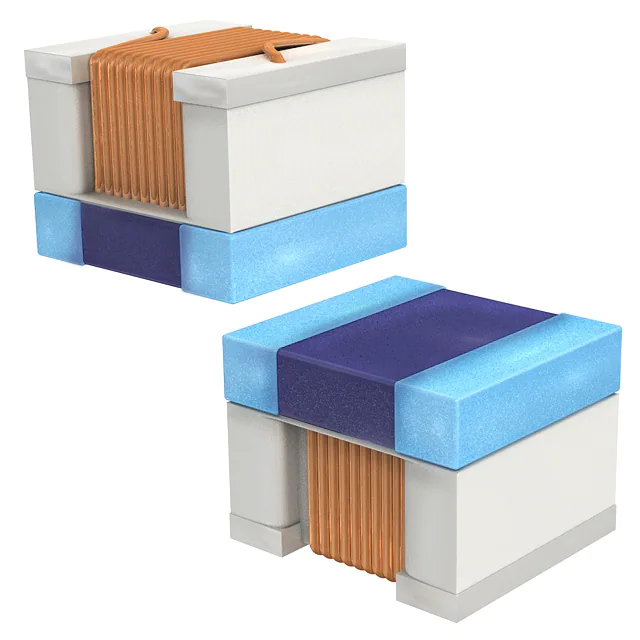

LQW2BAN56NJ00LFIXED IND 56NH 1.25A 180MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 56 nH | ±5% | 1.25 A | - | Unshielded | 180mOhm Max | 70 @ 500MHz | 1.6GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
|
LQW2BAN8N2J00LFIXED IND 8.2NH 1.5A 90MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 8.2 nH | ±5% | 1.5 A | - | Unshielded | 90mOhm Max | 80 @ 100MHz | 3.2GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
LQH2HPNR47MDRLFIXED IND 470NH 1.25A 168MOHM SM Murata Electronics |
0 |
|
规格书 |
LQH2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 1.25 A | 1.67A | Shielded | 168mOhm Max | - | 120MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.024" (0.60mm) |
|
DEM8045Z-330M=P3IND AUTO 33UH 3131 FERRITE CORE Murata Electronics |
0 |
|
规格书 |
DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.2 A | 2.3A | Shielded | 132mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
|
DEM8045Z-5R6N=P3IND AUTO 5.6UH 3131 FERRITE CORE Murata Electronics |
0 |
|
规格书 |
DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 5.4 A | 6.1A | Shielded | 22.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
|
DEM8045Z-150M=P3IND AUTO 15UH 3131 FERRITE CORE Murata Electronics |
0 |
|
规格书 |
DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.5 A | 3.3A | Shielded | 52.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
|
DEM8045Z-2R2N=P3IND AUTO 2.2UH 3131 FERRITE CORE Murata Electronics |
0 |
|
规格书 |
DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 8.7 A | 9.3A | Shielded | 9.96mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
|
DEM8045Z-470M=P3IND AUTO 47UH 3131 FERRITE CORE Murata Electronics |
0 |
|
规格书 |
DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.8 A | 2.1A | Shielded | 204mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
|
DEM8045Z-3R3N=P3EMC Murata Electronics |
0 |
|
规格书 |
DEM8045C | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±30% | 6.8 A | 7.7A | Shielded | 14.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
