固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

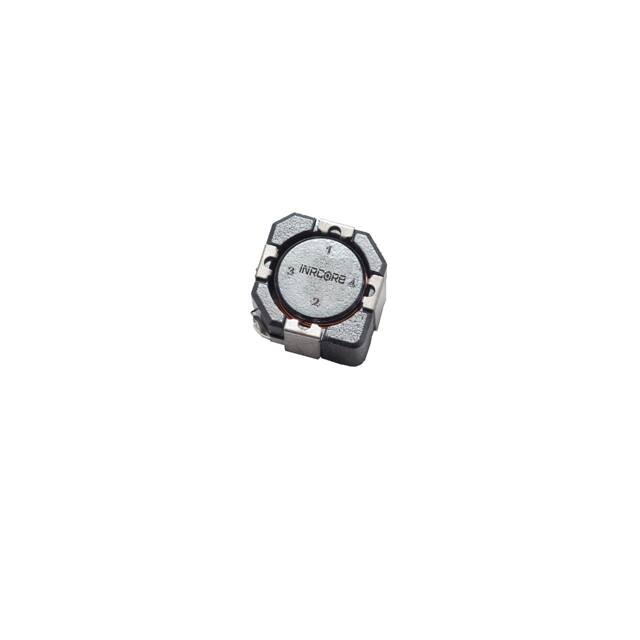

PL8904TFIXED IND 3.7UH 8A 8.5 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.7 µH | ±30% | 8 A | 9.2A | Shielded | 8.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
PL8908TFIXED IND 10UH 5A 21.8 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 5 A | 5.5A | Shielded | 21.8mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
PL8910TFIXED IND 15UH 4.1A 35.4MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 4.1 A | 4.4A | Shielded | 35.4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
PL8911TFIXED IND 18UH 4A 37 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 18 µH | ±20% | 4 A | 4.3A | Shielded | 37mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
PL8913TFIXED IND 27UH 3.4A 45.9MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 27 µH | ±20% | 3.4 A | 3.4A | Shielded | 45.9mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
PL8300FIXED IND 38UH 9.5A 19.3MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
HCCI-80 | Nonstandard | Tube | Active | Toroidal | - | 38 µH | - | 9.5 A | - | Unshielded | 19.3mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
PL8300NLFIXED IND 38UH 9.5A 19.3MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
HCCI-80 | Nonstandard | Tube | Active | Toroidal | - | 38 µH | - | 9.5 A | - | Unshielded | 19.3mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
PL8304FIXED IND 8.4UH 19A 5.1 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
HCCI-80 | Nonstandard | Tube | Active | Toroidal | - | 8.4 µH | - | 19 A | - | Unshielded | 5.1mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
|
PL8304NLFIXED IND 8.4UH 19A 5.1 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
HCCI-80 | Nonstandard | Tube | Active | Toroidal | - | 8.4 µH | - | 19 A | - | Unshielded | 5.1mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
PL8301FIXED IND 28.7UH 12A 13.8 MOHM iNRCORE, LLC |
0 |
|
规格书 |
HCCI-80 | Nonstandard | Tube | Active | Toroidal | - | 28.7 µH | - | 12 A | - | Unshielded | 13.8mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
