固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL8502FIXED IND 25UH 2.4A 74 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
SLED | Nonstandard | Tube | Active | Toroidal | - | 25 µH | ±10% | 2.4 A | - | Unshielded | 74mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
PL8702FIXED IND 5.9UH 8.1A 10.47 MOHM iNRCORE, LLC |
0 |
|
规格书 |
- | Nonstandard | Tube | Active | Toroidal | - | 5.9 µH | ±20% | 8.1 A | - | Unshielded | 10.47mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
PL8702NLFIXED IND 5.9UH 8.1A 10.47 MOHM iNRCORE, LLC |
0 |
|
规格书 |
- | Nonstandard | Tube | Active | Toroidal | - | 5.9 µH | ±20% | 8.1 A | - | Unshielded | 10.47mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
PL8701FIXED IND 3.5UH 9.4A 6.54MOHM SM iNRCORE, LLC |
0 |
|
规格书 |
- | Nonstandard | Tube | Active | Toroidal | - | 3.5 µH | ±20% | 9.4 A | - | Unshielded | 6.54mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
|
PL8701NLFIXED IND 3.5UH 9.4A 6.54MOHM SM iNRCORE, LLC |
0 |
|
规格书 |
- | Nonstandard | Tube | Active | Toroidal | - | 3.5 µH | ±20% | 9.4 A | - | Unshielded | 6.54mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
PL8504FIXED IND 83UH 1.3A 220 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
SLED | Nonstandard | Tube | Active | Toroidal | - | 83 µH | ±10% | 1.3 A | - | Unshielded | 220mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8504NLFIXED IND 83UH 1.3A 220 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
SLED | Nonstandard | Tube | Active | Toroidal | - | 83 µH | ±10% | 1.3 A | - | Unshielded | 220mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
PL8509FIXED IND 472UH 560MA 1.52OHM SM iNRCORE, LLC |
0 |
|
规格书 |
SLED | Nonstandard | Tube | Active | Toroidal | - | 472 µH | ±10% | 560 mA | - | Unshielded | 1.52Ohm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8509NLFIXED IND 472UH 560MA 1.52OHM SM iNRCORE, LLC |
0 |
|
规格书 |
SLED | Nonstandard | Tube | Active | Toroidal | - | 472 µH | ±10% | 560 mA | - | Unshielded | 1.52Ohm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|

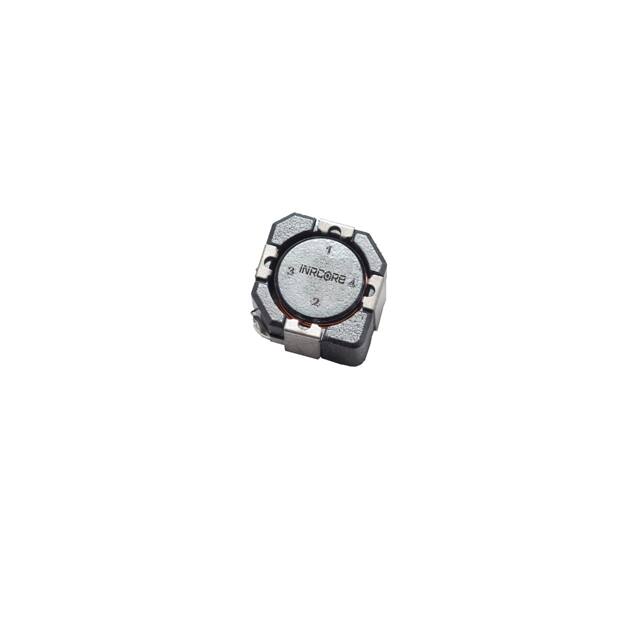

PL8912TFIXED IND 22UH 3.8A 42 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 3.8 A | 3.8A | Shielded | 42mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
