固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL8902NLTFIXED IND 1.5UH 10A 6 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±30% | 10 A | 13A | Shielded | 6mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
PL8902TFIXED IND 1.5UH 10A 6 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±30% | 10 A | 13A | Shielded | 6mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
|
PL8903NLTFIXED IND 2.7UH 9A 7.3 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.7 µH | ±30% | 9 A | 11A | Shielded | 7.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
PL8903TFIXED IND 2.7UH 9A 7.3 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.7 µH | ±30% | 9 A | 11A | Shielded | 7.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
PL8907TFIXED IND 7.6UH 5.5A 18.5MOHM SM iNRCORE, LLC |
0 |
|
规格书 |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 7.6 µH | ±30% | 5.5 A | 6.2A | Shielded | 18.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
PL9103TFIXED IND 2.7UH 7.8A 7.8MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.7 µH | ±30% | 7.8 A | 8.4A | Shielded | 7.8mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
PL9107TFIXED IND 8.2UH 5A 20 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±30% | 5 A | 5.1A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
PL9109TFIXED IND 12UH 4.2A 27 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 4.2 A | 4.2A | Shielded | 27mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|

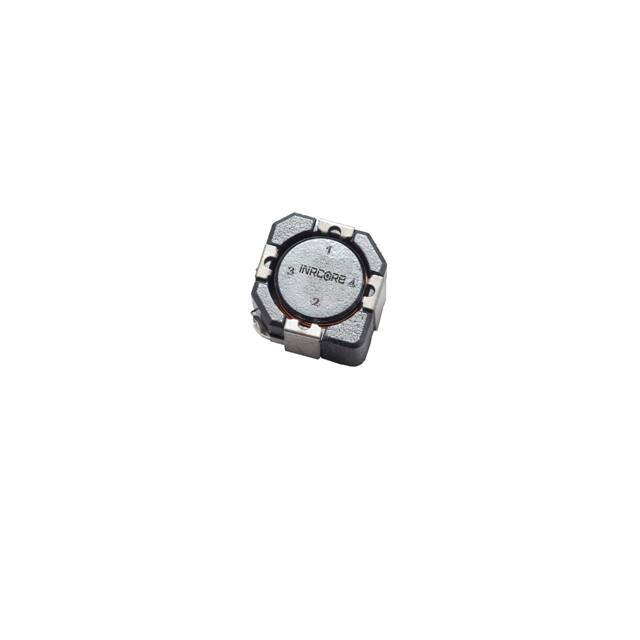

PL9114TFIXED IND 33UH 2.5A 70 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 2.5 A | 2.5A | Shielded | 70mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
PL9116TFIXED IND 47UH 2.2A 100 MOHM SMD iNRCORE, LLC |
0 |
|
规格书 |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 2.2 A | 2.2A | Shielded | 100mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
