固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMAC25-22G-RC22NH 2% SMD AIR CORE INDUCTOR Allied Components International |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 22 nH | ±2% | 3 A | - | Unshielded | 4.2mOhm Max | 100 @ 150MHz | 3.2GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|
|
SMAC25-27J-RC27NH 5% SMD AIR CORE INDUCTOR Allied Components International |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 27 nH | ±5% | 3.5 A | - | Unshielded | 4mOhm Max | 100 @ 150MHz | 2.7GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|
|
SMAC25-100G-RC100nH 2% SMD Air core Inductor Allied Components International |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 100 nH | ±2% | 1.7 A | - | Unshielded | 12.3mOhm Max | 100 @ 150MHz | 1.2GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|
|
SMAC25-39G-RC39NH 2% SMD AIR CORE INDUCTOR Allied Components International |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 39 nH | ±2% | 3 A | - | Unshielded | 4.4mOhm Max | 100 @ 150MHz | 2.1GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|

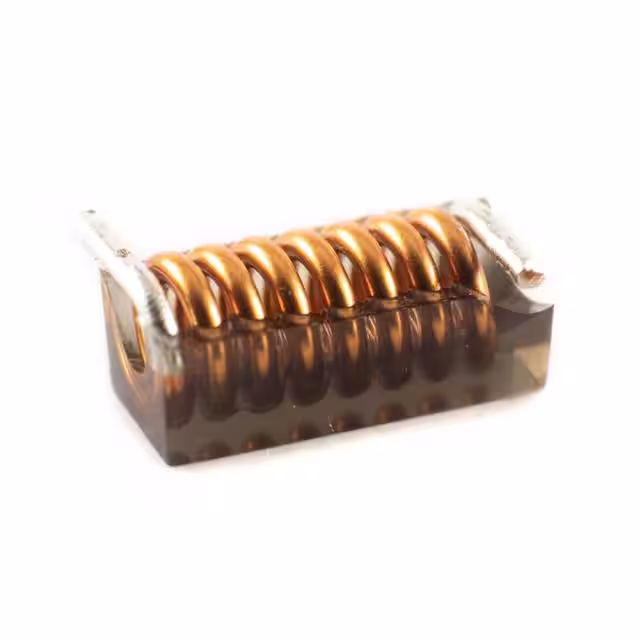

SMAC30-9J-RC35.5nH 5% SMD Air Core Inductor Allied Components International |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | - | Air | 35.5 nH | ±5% | 4 A | - | Unshielded | 6.8mOhm Max | 112 @ 150MHz | 1.5GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
|
SQAC0806-16NJ-RC15.7nH 5% Square Wound Coil Allied Components International |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | - | Air | 15.7 nH | ±5% | 2.9 A | - | Unshielded | 9mOhm Max | 90 @ 400MHz | 4.4GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.090" L x 0.072" W (2.29mm x 1.83mm) | 0.059" (1.50mm) |
|
|
SQAC0806-19NJ-RC19.4nH 5% Square Wound Coil Allied Components International |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | - | Air | 19.4 nH | ±5% | 2.9 A | - | Unshielded | 10mOhm Max | 90 @ 400MHz | 4GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.102" L x 0.072" W (2.59mm x 1.83mm) | 0.059" (1.50mm) |
|
SQAC0807-10NJ-RC10.2nH 5% Square Air Coil Allied Components International |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | - | Air | 10 nH | ±5% | 2.7 A | - | Unshielded | 7mOhm Max | 100 @ 400MHz | 4GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.064" L x 0.072" W (1.63mm x 1.83mm) | 0.070" (1.78mm) |
|
|
SQAC0807-11NJ-RC11.2nH 5% Square Air Coil Allied Components International |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | - | Air | 11 nH | ±5% | 2.7 A | - | Unshielded | 6.3mOhm Max | 90 @ 400MHz | 3.6GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.061" L x 0.072" W (1.55mm x 1.83mm) | 0.070" (1.78mm) |
|
|
SQAC0806-8N9J-RC8.9nH 5% Square Wound Coil Allied Components International |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | - | Air | 8.9 nH | ±5% | 2.9 A | - | Unshielded | 7mOhm Max | 90 @ 400MHz | 4.3GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.064" L x 0.072" W (1.63mm x 1.83mm) | 0.070" (1.78mm) |
