固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM30-2R2K-RC2.2UH 10% AXIAL MOLDED INDUCTOR Allied Components International |
0 |
|
规格书 |
- | Axial | Bag | Active | Molded | - | 2.2 µH | ±10% | - | 485mA | Unshielded | 950mOhm Max | 33 @ 7.9MHz | 135MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
AM30-R33M-RC.33UH 10% AXIAL MOLDED INDUCTOR Allied Components International |
0 |
|
规格书 |
- | Axial | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | - | 1.58A | Unshielded | 90mOhm Max | 45 @ 25MHz | 360MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|

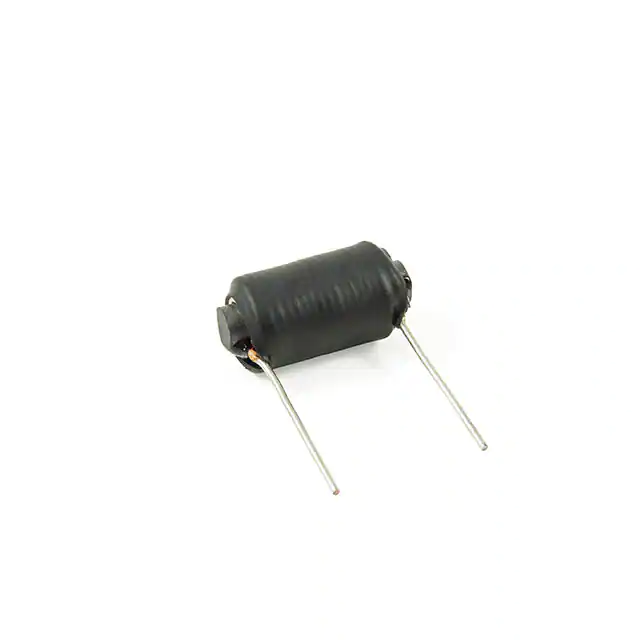

RHC50-15-5R0K-RC5UH 10% 15AMP RADIAL HI. CURR. Allied Components International |
0 |
|
规格书 |
- | Radial, Horizontal Cylinder | Box | Active | - | - | 5 µH | ±10% | 15 A | 20A | Unshielded | 8mOhm Max | - | 30MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial, Horizontal Cylinder | 0.725" Dia x 1.375" L (18.42mm x 34.93mm) | - |
|

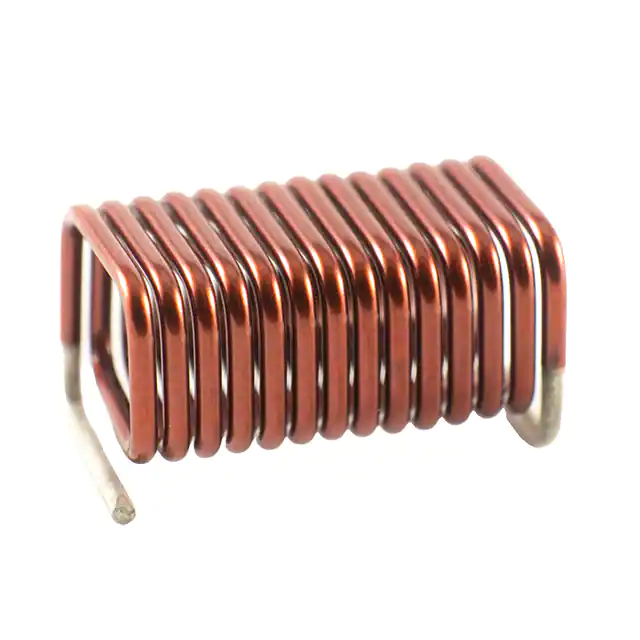

SQAC2929-501NJ-RC500NH 5% SMD SQ. AIR CORE IND. Allied Components International |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 500 nH | ±5% | 4.3 A | - | Unshielded | 16.5mOhm Max | 180 @ 50MHz | 500MHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.551" L x 0.295" W (14.00mm x 7.49mm) | 0.295" (7.49mm) |
|
SQAC1515-47NG-RC47NH 2% SQ. AIR CORE INDUCTOR Allied Components International |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 47 nH | ±2% | 4.9 A | - | Unshielded | 6.35mOhm Max | 230 @ 400MHz | 1.87GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.160" L x 0.140" W (4.06mm x 3.56mm) | 0.154" (3.91mm) |
|
|
SQAC2929-431NJ-RC430NH 5% SMD SQ. AIR CORE IND. Allied Components International |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 430 nH | ±5% | 4.2 A | - | Unshielded | 15.5mOhm Max | 180 @ 50MHz | 550MHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.520" L x 0.295" W (13.21mm x 7.49mm) | 0.295" (7.49mm) |
|
|
RHC50-15-500K-RC50UH 10% 15AMP RADIAL HI.CURR. Allied Components International |
0 |
|
规格书 |
- | Radial, Horizontal Cylinder | Box | Active | - | - | 50 µH | ±10% | 15 A | 9A | Unshielded | 20mOhm Max | - | 4MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial, Horizontal Cylinder | 1.000" Dia x 1.625" L (25.40mm x 41.28mm) | - |
|
|
RHC50-3-270K-RC27UH 10% 3AMP RADIAL HI. CURR. Allied Components International |
0 |
|
规格书 |
- | Radial, Horizontal Cylinder | Box | Active | - | - | 27 µH | ±10% | 3 A | 15A | Unshielded | 35mOhm Max | - | 8MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial, Horizontal Cylinder | 0.811" Dia x 0.875" L (20.60mm x 22.23mm) | - |
|
|
SQAC1515-47NJ-RC47NH 5% SQ. AIR CORE INDUCTOR Allied Components International |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 47 nH | ±5% | 4.9 A | - | Unshielded | 6.35mOhm Max | 230 @ 400MHz | 1.87GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.160" L x 0.140" W (4.06mm x 3.56mm) | 0.154" (3.91mm) |
|

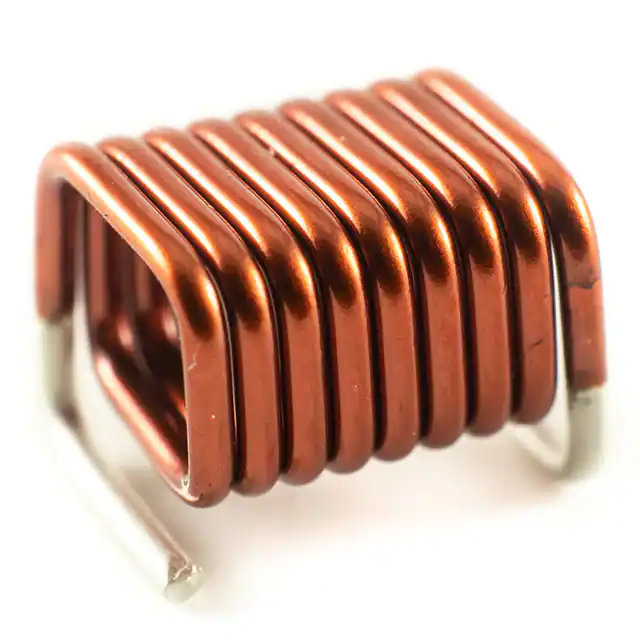

SQAC2222-161NJ-RC160NH 5% SQ. AIR CORE INDUCTOR Allied Components International |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 160 nH | ±5% | 5.7 A | - | Unshielded | 8.25mOhm Max | 140 @ 50MHz | 1GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.290" L x 0.220" W (7.37mm x 5.59mm) | 0.234" (5.95mm) |
