固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APC20-101K-RC100UH 10% AXIAL POWER CHOKE Allied Components International |
0 |
|
规格书 |
APC20 | Axial | Bulk | Active | - | - | 100 µH | ±10% | 632 mA | 1.2A | Unshielded | 208mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.600" L (7.36mm x 15.24mm) | - |
|
|
APC20-8R2K-RC8.2UH 10% AXIAL POWER CHOKE Allied Components International |
0 |
|
规格书 |
APC20 | Axial | Bulk | Active | - | - | 8.2 µH | ±10% | 1.28 A | 4.5A | Unshielded | 28mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.600" L (7.36mm x 15.24mm) | - |
|
|
APC20-330K-RC33UH 10% AXIAL POWER CHOKE Allied Components International |
0 |
|
规格书 |
APC20 | Axial | Bulk | Active | - | - | 33 µH | ±10% | 1.008 A | 2.2A | Unshielded | 76mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.600" L (7.36mm x 15.24mm) | - |
|
|
APC20-222K-RC2200UH 10% AXIAL POWER CHOKE Allied Components International |
0 |
|
规格书 |
APC20 | Axial | Bulk | Active | - | - | 2.2 mH | ±10% | 158 mA | 270mA | Unshielded | 4.48Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.600" L (7.36mm x 15.24mm) | - |
|
|
APC20-221K-RC220UH 10% AXIAL POWER CHOKE Allied Components International |
0 |
|
规格书 |
APC20 | Axial | Bulk | Active | - | - | 220 µH | ±10% | 508 mA | 860mA | Unshielded | 430mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.600" L (7.36mm x 15.24mm) | - |
|
|
APC20-821K-RC820UH 10% AXIAL POWER CHOKE Allied Components International |
0 |
|
规格书 |
APC20 | Axial | Bulk | Active | - | - | 820 µH | ±10% | 200 mA | 440mA | Unshielded | 1.96Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.600" L (7.36mm x 15.24mm) | - |
|
|
APC20-681K-RC680UH 10% AXIAL POWER CHOKE Allied Components International |
0 |
|
规格书 |
APC20 | Axial | Bulk | Active | - | - | 680 µH | ±10% | 250 mA | 490mA | Unshielded | 1.61Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.600" L (7.36mm x 15.24mm) | - |
|
RHLC130-151K150UH 10% RADIAL LEADED, HM Allied Components International |
0 |
|
- |
- | Radial, Horizontal Cylinder | Bulk | Active | - | - | 150 µH | ±10% | 30 A | - | Unshielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.693" Dia x 2.480" L (43.00mm x 63.00mm) | - |
|
RDC40-391K-RC390UH 10% Radial Drum Core Allied Components International |
0 |
|
规格书 |
RDC40 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 390 µH | ±10% | 9 A | 10.1A | Unshielded | 82mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|

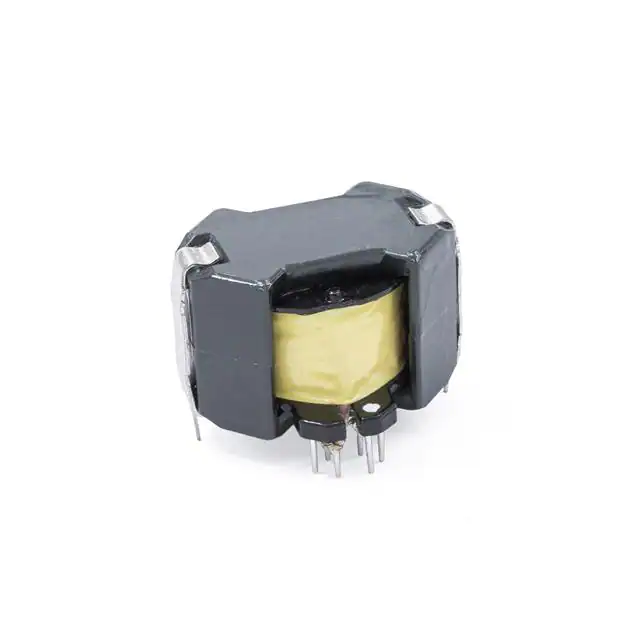

ARM10-4629250UH 10% RM10 T.H. Inductor Allied Components International |
0 |
|
规格书 |
- | Radial, Vertical 12 Leads | Box | Active | - | - | 250 µH | ±10% | 5.6 A | - | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Through Hole | - | 1.220" L x 1.142" W (31.00mm x 29.00mm) | 0.787" (20.00mm) |
