场效应晶体管（FETs）、MOSFETs
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AOK095A60MOSFET N-CH 600V 38A TO247 |
9,585 |
|
规格书 |
aMOS5™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 38A (Tc) | 10V | 95mOhm @ 19A, 10V | 3V @ 250µA | 78 nC @ 10 V | ±20V | 4010 pF @ 100 V | - | 378W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 |
|
RCJ510N25TLMOSFET N-CH 250V 51A LPTS |
4,965 |
|
规格书 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 51A (Tc) | 10V | 65mOhm @ 25.5A, 10V | 5V @ 1mA | 120 nC @ 10 V | ±30V | 7000 pF @ 25 V | - | 1.56W (Ta), 40W (Tc) | 150°C (TJ) | - | - | Surface Mount | LPTS |
|
STB160N75F3MOSFET N-CH 75V 120A D2PAK |
823 |
|
规格书 |
STripFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 120A (Tc) | 10V | 4mOhm @ 60A, 10V | 4V @ 250µA | 85 nC @ 10 V | ±20V | 6750 pF @ 25 V | - | 330W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
STB23N80K5MOSFET N-CH 800V 16A D2PAK |
898 |
|
规格书 |
MDmesh™ K5 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 16A (Tc) | 10V | 280mOhm @ 8A, 10V | 5V @ 100µA | 33 nC @ 10 V | ±30V | 1000 pF @ 100 V | - | 190W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
NTB150N65S3HFMOSFET N-CH 650V 24A D2PAK-3 |
1,540 |
|
规格书 |
FRFET®, SuperFET® III | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Tc) | 10V | 150mOhm @ 12A, 10V | 5V @ 540µA | 43 nC @ 10 V | ±30V | 1985 pF @ 400 V | - | 192W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|

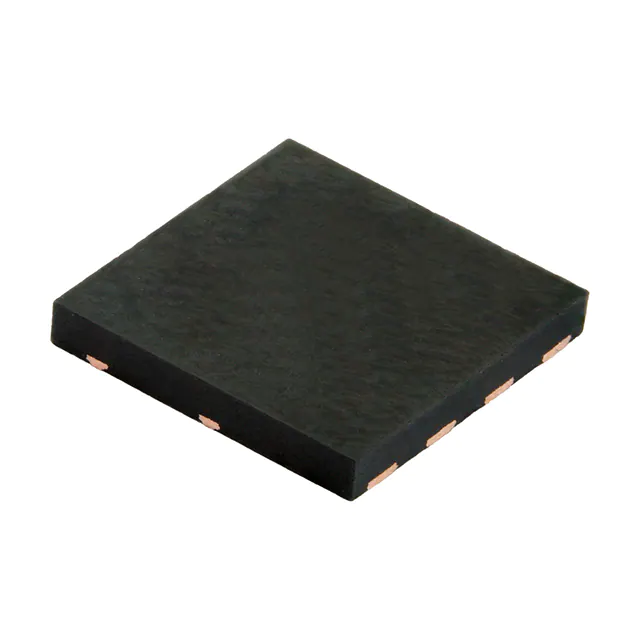

SIHH080N60E-T1-GE3E SERIES POWER MOSFET POWERPAK 8 |
6,049 |
|
规格书 |
E | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 32A (Tc) | 10V | 80mOhm @ 17A, 10V | 5V @ 250µA | 63 nC @ 10 V | ±30V | 2557 pF @ 100 V | - | 184W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 8 x 8 |
|
|
STB12NK80ZT4MOSFET N-CH 800V 10.5A D2PAK |
2,708 |
|
规格书 |
SuperMESH™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 10.5A (Tc) | 10V | 750mOhm @ 5.25A, 10V | 4.5V @ 100µA | 87 nC @ 10 V | ±30V | 2620 pF @ 25 V | - | 190W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
STB13NM60NMOSFET N-CH 600V 11A D2PAK |
950 |
|
规格书 |
MDmesh™ II | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 360mOhm @ 5.5A, 10V | 4V @ 250µA | 30 nC @ 10 V | ±25V | 790 pF @ 50 V | - | 90W (Tc) | 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
IXTP60N20TMOSFET N-CH 200V 60A TO220AB |
200 |
|
规格书 |
Trench | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 60A (Tc) | 10V | 40mOhm @ 30A, 10V | 5V @ 250µA | 73 nC @ 10 V | ±20V | 4530 pF @ 25 V | - | 500W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
SIHP120N60E-GE3MOSFET N-CH 600V 25A TO220AB |
844 |
|
规格书 |
E | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 10V | 120mOhm @ 12A, 10V | 5V @ 250µA | 45 nC @ 10 V | ±30V | 1562 pF @ 100 V | - | 179W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
FDPF2710TMOSFET N-CH 250V 25A TO220F |
4,290 |
|
规格书 |
PowerTrench® | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 25A (Tc) | 10V | 42.5mOhm @ 25A, 10V | 5V @ 250µA | 101 nC @ 10 V | ±30V | 7280 pF @ 25 V | - | 62.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
STW33N60M2MOSFET N-CH 600V 26A TO247 |
690 |
|
规格书 |
MDmesh™ II Plus | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 26A (Tc) | 10V | 125mOhm @ 13A, 10V | 4V @ 250µA | 45.5 nC @ 10 V | ±25V | 1781 pF @ 100 V | - | 190W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
IPI076N15N5AKSA1MV POWER MOS |
426 |
|
规格书 |
OptiMOS™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 112A (Tc) | 8V, 10V | 7.6mOhm @ 56A, 10V | 4.6V @ 160µA | 61 nC @ 10 V | ±20V | 4700 pF @ 75 V | - | 214W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO262-3 |
|
STP43N60DM2MOSFET N-CH 600V 34A TO220 |
189 |
|
规格书 |
MDmesh™ DM2 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 34A (Tc) | 10V | 93mOhm @ 17A, 10V | 5V @ 250µA | 56 nC @ 10 V | ±25V | 2500 pF @ 100 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
STP20N95K5MOSFET N-CH 950V 17.5A TO220-3 |
886 |
|
规格书 |
SuperMESH5™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 17.5A (Tc) | 10V | 330mOhm @ 9A, 10V | 5V @ 100µA | 40 nC @ 10 V | ±30V | 1500 pF @ 100 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
IXFA38N30X3MOSFET N-CH 300V 38A TO263 |
636 |
|
规格书 |
HiPerFET™, Ultra X3 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 38A (Tc) | 10V | 50mOhm @ 19A, 10V | 4.5V @ 1mA | 35 nC @ 10 V | ±20V | 2240 pF @ 25 V | - | 240W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263HV |
|
|
STP40N60M2MOSFET N-CH 600V 34A TO220 |
1,986 |
|
规格书 |
MDmesh™ II Plus | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 34A (Tc) | 10V | 88mOhm @ 17A, 10V | 4V @ 250µA | 57 nC @ 10 V | ±25V | 2500 pF @ 100 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
STW48N60DM2MOSFET N-CH 600V 40A TO247 |
801 |
|
规格书 |
MDmesh™ DM2 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 40A (Tc) | 10V | 79mOhm @ 20A, 10V | 5V @ 250µA | 70 nC @ 10 V | ±25V | 3250 pF @ 100 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
|
STW10NK80ZMOSFET N-CH 800V 9A TO247-3 |
603 |
|
规格书 |
SuperMESH™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 9A (Tc) | 10V | 900mOhm @ 4.5A, 10V | 4.5V @ 100µA | 72 nC @ 10 V | ±30V | 2180 pF @ 25 V | - | 160W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|

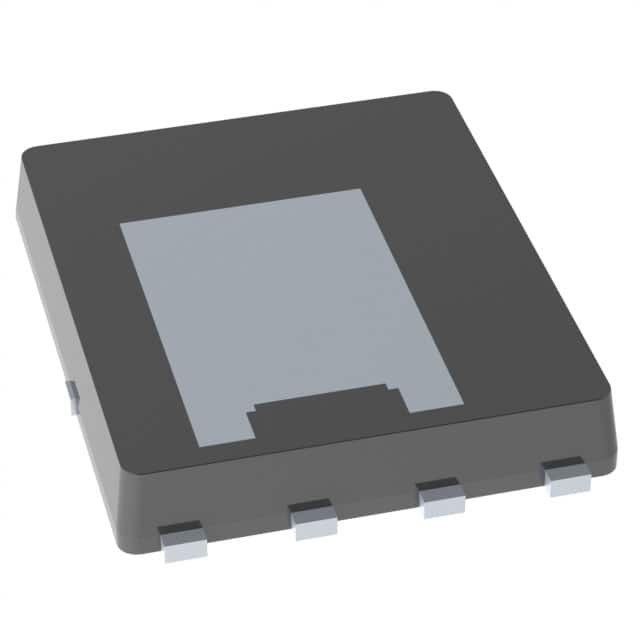

NVMFSC0D9N04CLMOSFET N-CH 40V 50A/316A 8DFN |
2,950 |
|
规格书 |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Ta), 316A (Tc) | 10V | 0.87mOhm @ 50A, 10V | 3.5V @ 250µA | 86 nC @ 10 V | ±20V | 6100 pF @ 25 V | - | 4.1W (Ta), 166W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-DFN (5x6.15) |
