场效应晶体管（FETs）、MOSFETs
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFH18N60PMOSFET N-CH 600V 18A TO247AD |
810 |
|
规格书 |
HiPerFET™, Polar | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 400mOhm @ 500mA, 10V | 5.5V @ 2.5mA | 50 nC @ 10 V | ±30V | 2500 pF @ 25 V | - | 360W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
|
IXFH22N50PMOSFET N-CH 500V 22A TO247AD |
136 |
|
规格书 |
HiPerFET™, Polar | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 22A (Tc) | 10V | 270mOhm @ 11A, 10V | 5.5V @ 2.5mA | 50 nC @ 10 V | ±30V | 2630 pF @ 25 V | - | 350W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|

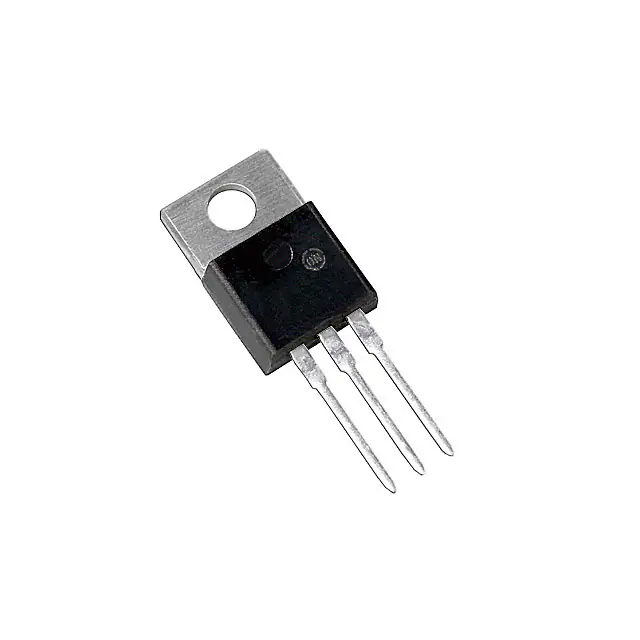

FDP032N08MOSFET N-CH 75V 120A TO220-3 |
661 |
|
规格书 |
PowerTrench® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 120A (Tc) | 10V | 3.2mOhm @ 75A, 10V | 4.5V @ 250µA | 220 nC @ 10 V | ±20V | 15160 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
IPW65R090CFD7XKSA1HIGH POWER_NEW |
153 |
|
规格书 |
CoolMOS™ CFD7 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 25A (Tc) | 10V | 90mOhm @ 12.5A, 10V | 4.5V @ 630µA | 53 nC @ 10 V | ±20V | 2513 pF @ 400 V | - | 127W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-3 |
|
IPB80R290C3AATMA2MOSFET N-CH 800V 17A TO263-3 |
8,386 |
|
规格书 |
CoolMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 17A (Tc) | 10V | 290mOhm @ 11A, 10V | 3.9V @ 1mA | 117 nC @ 10 V | ±20V | 2300 pF @ 100 V | - | 227W (Tc) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TO263-3-2 |
|
NVMFSC0D9N04CMOSFET N-CH 40V 48.9A/313A 8DFN |
2,265 |
|
规格书 |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 48.9A (Ta), 313A (Tc) | 10V | 0.87mOhm @ 50A, 10V | 3.5V @ 250µA | 86 nC @ 10 V | ±20V | 6100 pF @ 25 V | - | 4.1W (Ta), 166W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-DFN (5x6.15) |
|
IXTA3N100D2MOSFET N-CH 1000V 3A TO263 |
406 |
|
规格书 |
Depletion | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 1000 V | 3A (Tc) | - | 5.5Ohm @ 1.5A, 0V | - | 37.5 nC @ 5 V | ±20V | 1020 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA |
|
|
IXFH22N60P3MOSFET N-CH 600V 22A TO247AD |
950 |
|
规格书 |
HiPerFET™, Polar3™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 22A (Tc) | 10V | 360mOhm @ 11A, 10V | 5V @ 1.5mA | 38 nC @ 10 V | ±30V | 2600 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|

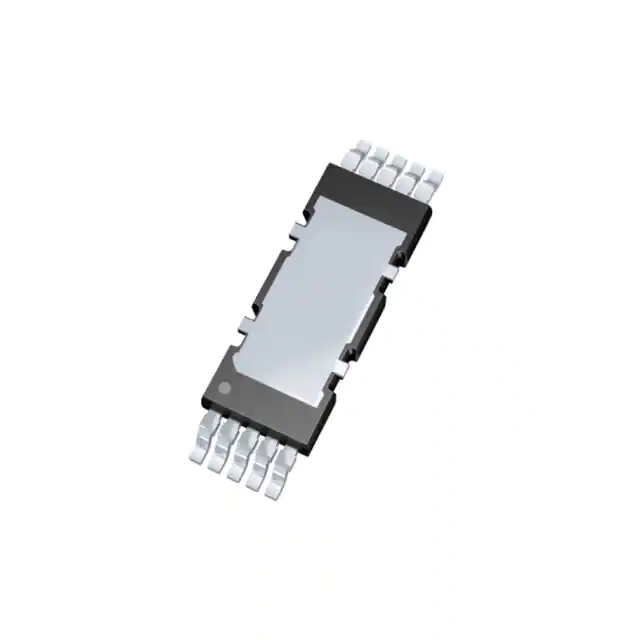

IPDD60R075CFD7XTMA1MOSFET N-CH 600V 40A HDSOP-10 |
769 |
|
规格书 |
CoolMOS™ CFD7 | 10-PowerSOP Module | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 40A (Tc) | - | 75mOhm @ 11.4A, 10V | 4.5V @ 570µA | 51 nC @ 10 V | ±20V | 2102 pF @ 400 V | - | 266W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-HDSOP-10-1 |
|
SUM85N15-19-E3MOSFET N-CH 150V 85A TO263 |
972 |
|
规格书 |
TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 85A (Tc) | 10V | 19mOhm @ 30A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 4750 pF @ 25 V | - | 3.75W (Ta), 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
IXFA7N100PMOSFET N-CH 1000V 7A TO263 |
140 |
|
规格书 |
HiPerFET™, Polar | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 7A (Tc) | 10V | 1.9Ohm @ 3.5A, 10V | 6V @ 1mA | 47 nC @ 10 V | ±30V | 2590 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA (IXFA) |
|
FDBL0210N80MOSFET N-CH 80V 240A 8HPSOF |
3,628 |
|
规格书 |
PowerTrench® | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 240A (Tc) | 10V | 2mOhm @ 80A, 10V | 4V @ 250µA | 169 nC @ 10 V | ±20V | 10000 pF @ 40 V | - | 357W (Tj) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-HPSOF |
|
FDP4D5N10CMOSFET N-CH 100V 128A TO220-3 |
563 |
|
规格书 |
PowerTrench® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 128A (Tc) | 10V | 4.5mOhm @ 100A, 10V | 4V @ 310µA | 68 nC @ 10 V | ±20V | 5065 pF @ 50 V | - | 2.4W (Ta), 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
IXFP72N30X3MMOSFET N-CH 300V 72A TO220 |
547 |
|
规格书 |
HiPerFET™, Ultra X3 | TO-220-3 Full Pack, Isolated Tab | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 72A (Tc) | 10V | 19mOhm @ 36A, 10V | 4.5V @ 1.5mA | 82 nC @ 10 V | ±20V | 5400 pF @ 25 V | - | 36W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 Isolated Tab |
|
|
IPB60R070CFD7ATMA1MOSFET N-CH 600V 31A TO263-3 |
1,827 |
|
规格书 |
CoolMOS™ CFD7 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 31A (Tc) | 10V | 70mOhm @ 15.1A, 10V | 4.5V @ 760µA | 67 nC @ 10 V | ±20V | 2721 pF @ 400 V | - | 156W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO263-3-2 |
|
STW30N65M5MOSFET N-CH 650V 22A TO247-3 |
259 |
|
规格书 |
MDmesh™ V | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 22A (Tc) | 10V | 139mOhm @ 11A, 10V | 5V @ 250µA | 64 nC @ 10 V | ±25V | 2880 pF @ 100 V | - | 140W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
|
STW3N170MOSFET N-CH 1700V 2.6A TO247-3 |
494 |
|
规格书 |
PowerMESH™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1700 V | 2.6A (Tc) | 10V | 13Ohm @ 1.3A, 10V | 5V @ 250µA | 44 nC @ 10 V | ±30V | 1100 pF @ 100 V | - | 160W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
UF3C065080K3SMOSFET N-CH 650V 31A TO247-3 |
11,085 |
|
规格书 |
- | TO-247-3 | Tube | Active | N-Channel | - | 650 V | 31A (Tc) | 12V | 100mOhm @ 20A, 12V | 6V @ 10mA | 51 nC @ 15 V | ±25V | 1500 pF @ 100 V | - | 190W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
.jpg)
|
IPT012N06NATMA1MOSFET N-CH 60V 240A 8HSOF |
1,330 |
|
规格书 |
OptiMOS™ | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 240A (Tc) | 6V, 10V | 1.2mOhm @ 100A, 10V | 3.3V @ 143µA | 124 nC @ 10 V | ±20V | 9750 pF @ 30 V | - | 214W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-HSOF-8-1 |
|
STP50N60DM6MOSFET N-CH 600V 36A TO220 |
723 |
|
规格书 |
MDmesh™ DM6 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 36A (Tc) | 10V | 80mOhm @ 18A, 10V | 4.75V @ 250µA | 55 nC @ 10 V | ±25V | 2350 pF @ 100 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
