场效应晶体管（FETs）、MOSFETs
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDA032N08MOSFET N-CH 75V 120A TO3PN |
220 |
|
规格书 |
PowerTrench® | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 120A (Tc) | 10V | 3.2mOhm @ 75A, 10V | 4.5V @ 250µA | 220 nC @ 10 V | ±20V | 15160 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-3PN |
|
IXTP50N25TMOSFET N-CH 250V 50A TO220AB |
518 |
|
规格书 |
Trench | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 50A (Tc) | 10V | 50mOhm @ 25A, 10V | 5V @ 1mA | 78 nC @ 10 V | ±30V | 4000 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
STW5NK100ZMOSFET N-CH 1000V 3.5A TO247-3 |
378 |
|
规格书 |
SuperMESH3™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 3.5A (Tc) | 10V | 3.7Ohm @ 1.75A, 10V | 4.5V @ 100µA | 59 nC @ 10 V | ±30V | 1154 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
|
IPP120N08S403AKSA1MOSFET N-CH 80V 120A TO220-3 |
8,103 |
|
规格书 |
OptiMOS™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 120A (Tc) | 10V | 2.8mOhm @ 100A, 10V | 4V @ 223µA | 167 nC @ 10 V | ±20V | 11550 pF @ 25 V | - | 278W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | PG-TO220-3-1 |
|
SIHG22N60E-GE3MOSFET N-CH 600V 21A TO247AC |
432 |
|
规格书 |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 21A (Tc) | 10V | 180mOhm @ 11A, 10V | 4V @ 250µA | 86 nC @ 10 V | ±30V | 1920 pF @ 100 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
IRFBC40STRLPBFMOSFET N-CH 600V 6.2A D2PAK |
371 |
|
规格书 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 6.2A (Tc) | 10V | 1.2Ohm @ 3.7A, 10V | 4V @ 250µA | 60 nC @ 10 V | ±20V | 1300 pF @ 25 V | - | 3.1W (Ta), 130W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
IRFBC40ASPBFMOSFET N-CH 600V 6.2A D2PAK |
124 |
|
规格书 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 6.2A (Tc) | 10V | 1.2Ohm @ 3.7A, 10V | 4V @ 250µA | 42 nC @ 10 V | ±30V | 1036 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
STB17N80K5MOSFET N-CHANNEL 800V 14A D2PAK |
948 |
|
规格书 |
MDmesh™ K5 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 14A (Tc) | 10V | 340mOhm @ 7A, 10V | 5V @ 250µA | 26 nC @ 10 V | ±30V | 866 pF @ 100 V | - | 170W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
IXTQ50N20PMOSFET N-CH 200V 50A TO3P |
354 |
|
规格书 |
Polar | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 50A (Tc) | 10V | 60mOhm @ 50A, 10V | 5V @ 250µA | 70 nC @ 10 V | ±20V | 2720 pF @ 25 V | - | 360W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-3P |
|

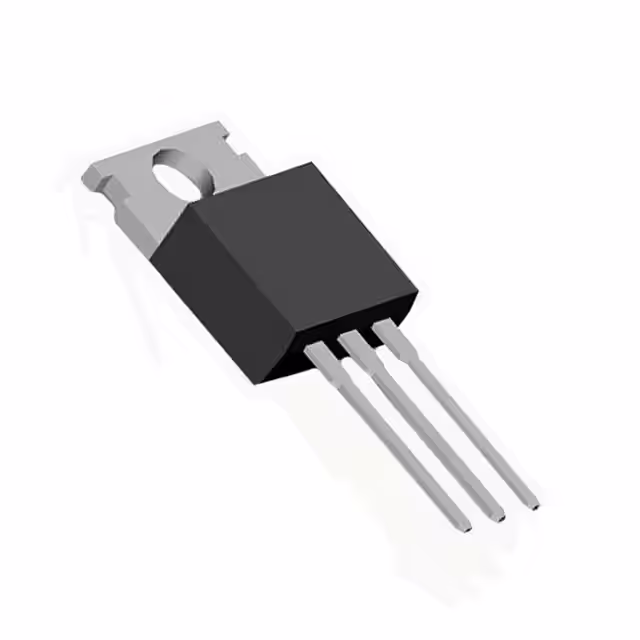

IXTP14N60X2MOSFET N-CH 600V 14A TO220 |
312 |
|
规格书 |
Ultra X2 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 14A (Tc) | 10V | 250mOhm @ 7A, 10V | 4.5V @ 250µA | 16.7 nC @ 10 V | ±30V | 740 pF @ 25 V | - | 180W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
IXFA130N10T2MOSFET N-CH 100V 130A TO263 |
251 |
|
规格书 |
HiPerFET™, TrenchT2™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 130A (Tc) | 10V | 9.1mOhm @ 65A, 10V | 4.5V @ 1mA | 130 nC @ 10 V | ±20V | 6600 pF @ 25 V | - | 360W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263AA (IXFA) |
|
IPT019N08N5ATMA1MOSFET N-CH 80V 32A/247A 8HSOF |
3,850 |
|
规格书 |
OptiMOS™ 5 | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 32A (Ta), 247A (Tc) | 6V, 10V | 1.9mOhm @ 150A, 10V | 3.8V @ 159µA | 127 nC @ 10 V | ±20V | 9200 pF @ 40 V | - | 231W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-HSOF-8-1 |
|
|
IXFP22N65X2MOSFET N-CH 650V 22A TO220 |
269 |
|
规格书 |
HiPerFET™, Ultra X2 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 22A (Tc) | 10V | 160mOhm @ 11A, 10V | 5.5V @ 1.5mA | 38 nC @ 10 V | ±30V | 2310 pF @ 25 V | - | 390W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
FDB024N08BL7MOSFET N-CH 80V 120A TO263-7 |
7,507 |
|
规格书 |
PowerTrench® | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 120A (Tc) | 10V | 2.4mOhm @ 100A, 10V | 4.5V @ 250µA | 178 nC @ 10 V | ±20V | 13530 pF @ 40 V | - | 246W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263-7 |
|
|
IPP65R150CFDAAKSA1MOSFET N-CH 650V 22.4A TO220-3 |
264 |
|
规格书 |
CoolMOS™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 22.4A (Tc) | 10V | 150mOhm @ 9.3A, 10V | 4.5V @ 900µA | 86 nC @ 10 V | ±20V | 2340 pF @ 100 V | - | 195.3W (Tc) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | PG-TO220-3 |
|

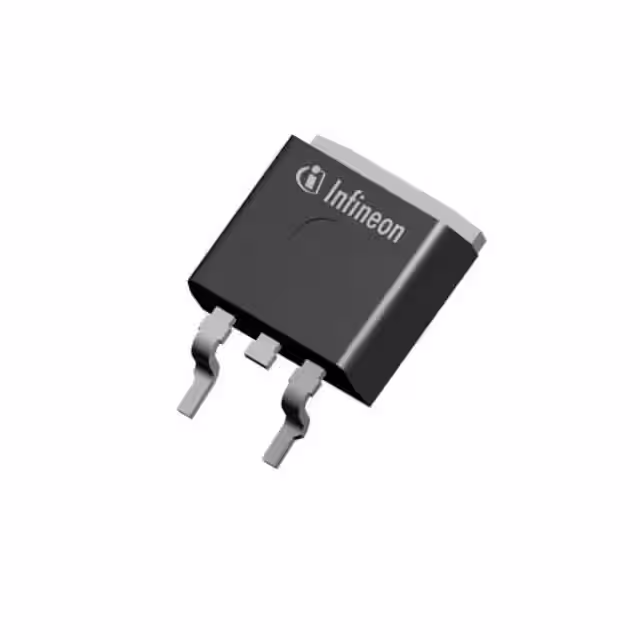

IPB320P10LMATMA1TRENCH >=100V PG-TO263-3 |
916 |
|
规格书 |
OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 6.5A (Ta), 63A (Tc) | 4.5V, 10V | 32mOhm @ 54A, 10V | 2V @ 5.55mA | 219 nC @ 10 V | ±20V | 11000 pF @ 50 V | - | 3.8W (Ta), 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
|
FDP030N06MOSFET N-CH 60V 120A TO220-3 |
759 |
|
规格书 |
PowerTrench® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 10V | 3.2mOhm @ 75A, 10V | 4.5V @ 250µA | 151 nC @ 10 V | ±20V | 9815 pF @ 25 V | - | 231W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
CSD19506KTTMOSFET N-CH 80V 200A DDPAK |
975 |
|
规格书 |
NexFET™ | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 200A (Ta) | 6V, 10V | 2.3mOhm @ 100A, 10V | 3.2V @ 250µA | 156 nC @ 10 V | ±20V | 12200 pF @ 40 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-3) |
|

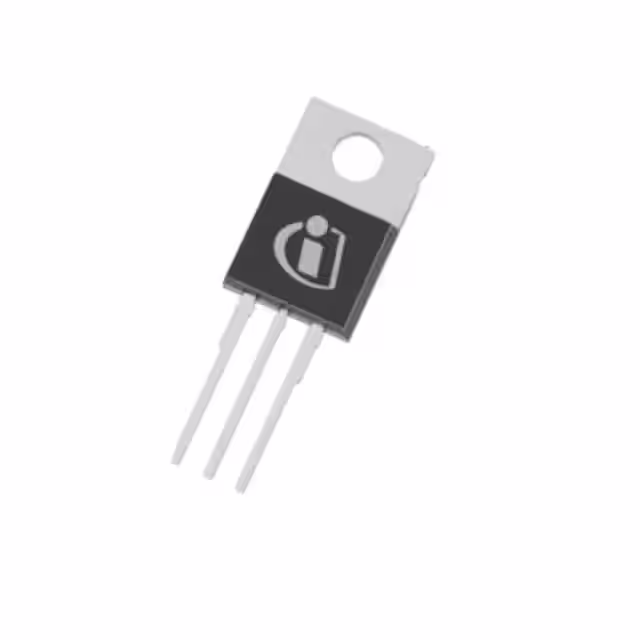

IPP330P10NMAKSA1TRENCH >=100V PG-TO220-3 |
385 |
|
规格书 |
OptiMOS™ | TO-220-3 | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 6.9A (Ta), 62A (Tc) | 10V | 33mOhm @ 53A, 10V | 4V @ 5.55mA | 236 nC @ 10 V | ±20V | 11000 pF @ 50 V | - | 3.8W (Ta), 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
|
FDP2614MOSFET N-CH 200V 62A TO220-3 |
8,994 |
|
规格书 |
PowerTrench® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 62A (Tc) | 10V | 27mOhm @ 31A, 10V | 5V @ 250µA | 99 nC @ 10 V | ±30V | 7230 pF @ 25 V | - | 260W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
