场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXUV170N075SMOSFET N-CH 75V 175A PLUS-220SMD IXYS |
0 | - |
|
- |
- | PLUS-220SMD | Box | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 175A (Tc) | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | PLUS-220SMD |
|
IXUN350N10MOSFET N-CH 100V 350A SOT-227B IXYS |
0 | - |
|
规格书 |
- | SOT-227-4, miniBLOC | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 350A (Tc) | 10V | 2.5mOhm @ 175A, 10V | 4V @ 3mA | 640 nC @ 10 V | ±20V | 27000 pF @ 25 V | - | 830W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
IXFV12N120PMOSFET N-CH 1200V 12A PLUS220 IXYS |
0 | - |
|
规格书 |
HiPerFET™, PolarP2™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1200 V | 12A (Tc) | 10V | 1.35Ohm @ 500mA, 10V | 6.5V @ 1mA | 103 nC @ 10 V | ±30V | 5400 pF @ 25 V | - | 543W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|
|
IXFV12N120PSMOSFET N-CH 1200V 12A PLUS220SMD IXYS |
0 | - |
|
规格书 |
HiPerFET™, PolarP2™ | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1200 V | 12A (Tc) | 10V | 1.35Ohm @ 500mA, 10V | 6.5V @ 1mA | 103 nC @ 10 V | ±30V | 5400 pF @ 25 V | - | 543W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PLUS-220SMD |
|
|
IXFV15N100PMOSFET N-CH 1000V 15A PLUS220 IXYS |
0 | - |
|
规格书 |
HiPerFET™, PolarP2™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1000 V | 15A (Tc) | 10V | 760mOhm @ 500mA, 10V | 6.5V @ 1mA | 97 nC @ 10 V | ±30V | 5140 pF @ 25 V | - | 543W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|
|
IXFV15N100PSMOSFET N-CH 1000V 15A PLUS220SMD IXYS |
0 | - |
|
规格书 |
HiPerFET™, PolarP2™ | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1000 V | 15A (Tc) | 10V | 760mOhm @ 500mA, 10V | 6.5V @ 1mA | 97 nC @ 10 V | ±30V | 5140 pF @ 25 V | - | 543W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PLUS-220SMD |
.jpg)
|
IXKH20N60C5MOSFET N-CH 600V 20A TO247AD IXYS |
0 | - |
|
规格书 |
CoolMOS™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 200mOhm @ 10A, 10V | 3.5V @ 1.1mA | 45 nC @ 10 V | ±20V | 1520 pF @ 100 V | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|
IXKP13N60C5MOSFET N-CH 600V 13A TO220AB IXYS |
0 | - |
|
规格书 |
CoolMOS™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | 300mOhm @ 6.6A, 10V | 3.5V @ 440µA | 30 nC @ 10 V | ±20V | 1100 pF @ 100 V | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
IXKP20N60C5MMOSFET N-CH 600V 7.6A TO220ABFP IXYS |
0 | - |
|
规格书 |
CoolMOS™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 7.6A (Tc) | 10V | 200mOhm @ 10A, 10V | 3.5V @ 1.1mA | 30 nC @ 10 V | ±20V | 1520 pF @ 100 V | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220ABFP |
|

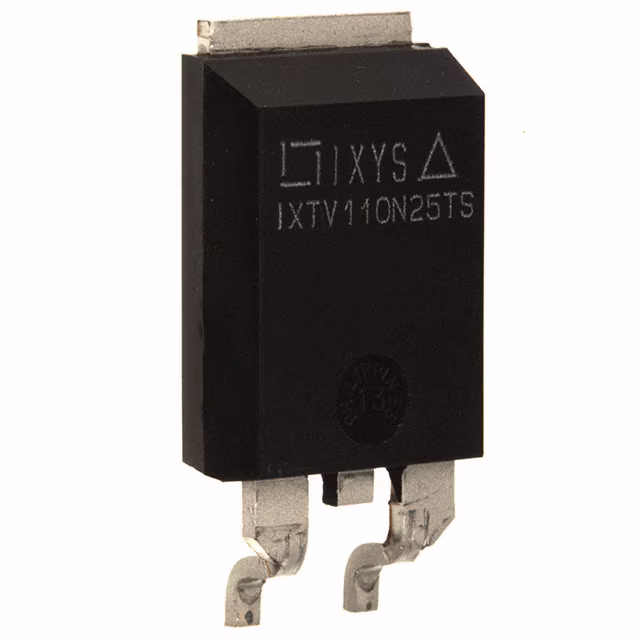

IXTV110N25TSMOSFET N-CH 250V 110A PLUS220SMD IXYS |
0 | - |
|
规格书 |
- | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 110A (Tc) | 10V | 24mOhm @ 55A, 10V | 4.5V @ 1mA | 157 nC @ 10 V | ±20V | 9400 pF @ 25 V | - | 694W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PLUS-220SMD |
