场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

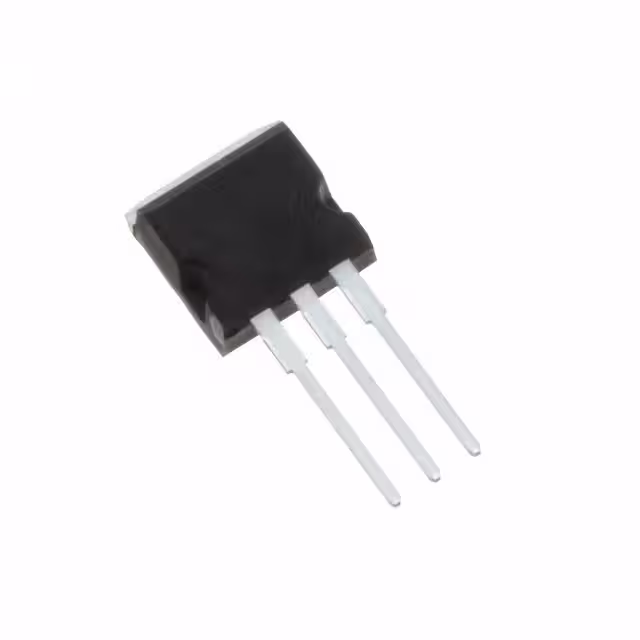

STI6N90K5MOSFET N-CH 900V 6A I2PAK STMicroelectronics |
125 | - |
|
规格书 |
MDmesh™ K5 | TO-262-3 Full Pack, I2PAK | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 6A (Tc) | 10V | 1.1Ohm @ 3A, 10V | 5V @ 100µA | - | ±30V | - | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | I2PAK |
|
STL18N60M2MOSFET N-CH 600V 9A POWERFLAT HV STMicroelectronics |
1,925 | - |
|
规格书 |
MDmesh™ II Plus | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 9A (Tc) | 10V | 308mOhm @ 4.5A, 10V | 4V @ 250µA | 21.5 nC @ 10 V | ±25V | 791 pF @ 100 V | - | 57W (Tc) | 150°C (TJ) | - | - | Surface Mount | PowerFlat™ (5x6) HV |
|
STP12NK30ZMOSFET N-CH 300V 9A TO220AB STMicroelectronics |
1,490 | - |
|
规格书 |
SuperMESH™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 9A (Tc) | 10V | 400mOhm @ 4.5A, 10V | 4.5V @ 50µA | 35 nC @ 10 V | ±30V | 670 pF @ 25 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
;;2.jpg)
|
STD8N65M5MOSFET N-CH 650V 7A DPAK STMicroelectronics |
4,523 | - |
|
规格书 |
MDmesh™ V | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 7A (Tc) | 10V | 600mOhm @ 3.5A, 10V | 5V @ 250µA | 15 nC @ 10 V | ±25V | 690 pF @ 100 V | - | 70W (Tc) | 150°C (TJ) | - | - | Surface Mount | DPAK |
|
STF16N60M6MOSFET N-CH 600V TO220-3 FP STMicroelectronics |
1,174 | - |
|
规格书 |
UltraFASTmesh™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V | 320mOhm @ 6A, 10V | 4.75V @ 250µA | 16.7 nC @ 10 V | ±25V | 575 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
|
STP76NF75MOSFET N-CH 75V 80A TO220 STMicroelectronics |
987 | - |
|
规格书 |
STripFET™ II | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 80A (Tc) | 10V | 11mOhm @ 40A, 10V | 4V @ 250µA | 160 nC @ 10 V | ±20V | 3700 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
|
STP18N65M2MOSFET N-CH 650V 12A TO220 STMicroelectronics |
1,003 | - |
|
规格书 |
MDmesh™ M2 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 12A (Tc) | 10V | 330mOhm @ 6A, 10V | 4V @ 250µA | 20 nC @ 10 V | ±25V | 770 pF @ 100 V | - | 110W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220 |
|
STL16N60M6MOSFET N-CH 600V POWERFLAT HV STMicroelectronics |
1,922 | - |
|
规格书 |
MDmesh™ | 8-PowerVDFN | Tape & Reel (TR) | Active | - | - | - | 8A (Tc) | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | PowerFlat™ (5x6) HV |
|
STL7LN65K5AGMOSFET N-CH 650V 5A PWRFLAT VHV STMicroelectronics |
2,979 | - |
|
规格书 |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 5A (Tc) | 10V | 1.5Ohm @ 2.5A, 10V | 5V @ 100µA | 11.7 nC @ 10 V | ±30V | 270 pF @ 100 V | - | 79W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerFlat™ (5x6) VHV |
|
|
STP150NF04MOSFET N-CH 40V 80A TO220AB STMicroelectronics |
431 | - |
|
规格书 |
STripFET™ II | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 80A (Tc) | 10V | 7mOhm @ 40A, 10V | 4V @ 250µA | 150 nC @ 10 V | ±20V | 3650 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
