场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFR3708TRLMOSFET N-CH 30V 61A DPAK Infineon Technologies |
0 | - |
|
规格书 |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 61A (Tc) | 2.8V, 10V | 12.5mOhm @ 15A, 10V | 2V @ 250µA | 24 nC @ 4.5 V | ±12V | 2417 pF @ 15 V | - | 87W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IRFR9N20DTRMOSFET N-CH 200V 9.4A DPAK Infineon Technologies |
0 | - |
|
规格书 |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 9.4A (Tc) | 10V | 380mOhm @ 5.6A, 10V | 5.5V @ 250µA | 27 nC @ 10 V | ±30V | 560 pF @ 25 V | - | 86W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IRLR8103VTRLMOSFET N-CH 30V 91A DPAK Infineon Technologies |
0 | - |
|
规格书 |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 91A (Tc) | 4.5V, 10V | 9mOhm @ 15A, 10V | 3V @ 250µA | 27 nC @ 5 V | ±20V | 2672 pF @ 16 V | - | 115W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IRLR8103VTRRMOSFET N-CH 30V 91A DPAK Infineon Technologies |
0 | - |
|
规格书 |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 91A (Tc) | 4.5V, 10V | 9mOhm @ 15A, 10V | 3V @ 250µA | 27 nC @ 5 V | ±20V | 2672 pF @ 16 V | - | 115W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
IRF3000MOSFET N-CH 300V 1.6A 8SO Infineon Technologies |
0 | - |
|
规格书 |
HEXFET® | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 300 V | 1.6A (Ta) | 10V | 400mOhm @ 960mA, 10V | 5V @ 250µA | 33 nC @ 10 V | ±30V | 730 pF @ 25 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
IRF7476MOSFET N-CH 12V 15A 8SO Infineon Technologies |
0 | - |
|
规格书 |
HEXFET® | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 12 V | 15A (Ta) | 2.8V, 4.5V | 8mOhm @ 15A, 4.5V | 1.9V @ 250µA | 40 nC @ 4.5 V | ±12V | 2550 pF @ 6 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
IRL3716MOSFET N-CH 20V 180A TO220AB Infineon Technologies |
0 | - |
|
规格书 |
HEXFET® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 180A (Tc) | 4.5V, 10V | 4mOhm @ 90A, 10V | 3V @ 250µA | 79 nC @ 4.5 V | ±20V | 5090 pF @ 10 V | - | 210W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|

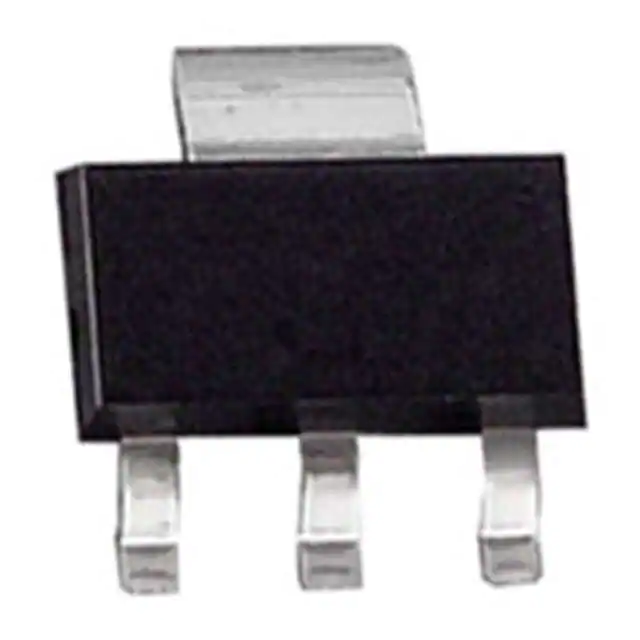

BSP123L6327HTSA1MOSFET N-CH 100V 370MA SOT223-4 Infineon Technologies |
0 | - |
|
规格书 |
SIPMOS® | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 370mA (Ta) | 2.8V, 10V | 6Ohm @ 370mA, 10V | 1.8V @ 50µA | 2.4 nC @ 10 V | ±20V | 70 pF @ 25 V | - | 1.79W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT223-4 |
|
BSS123E6327MOSFET N-CH 100V 170MA SOT23-3 Infineon Technologies |
0 | - |
|
规格书 |
SIPMOS® | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 170mA (Ta) | 4.5V, 10V | 6Ohm @ 170mA, 10V | 1.8V @ 50µA | 2.67 nC @ 10 V | ±20V | 69 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT23 |
|
|
BSS131E6327MOSFET N-CH 240V 110MA SOT23-3 Infineon Technologies |
0 | - |
|
规格书 |
SIPMOS® | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 240 V | 110mA (Ta) | 4.5V, 10V | 14Ohm @ 100mA, 10V | 1.8V @ 56µA | 3.1 nC @ 10 V | ±20V | 77 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT23 |
