DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-1393546-3SWITCH DIP SPST |
0 |
|
规格书 |
DIP-FIX | Tray | Obsolete | SPST | 24 | - | - | - | Raised | - | - | 0.319" (8.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|
A6KS-104RF-R100SWITCH ROTARY DIP BCD 0.025A 24V |
0 |
|
规格书 |
A6KS | Tape & Reel (TR) | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|
A6KS-162RF-R100SWITCH ROTARY DIP HEX 0.025A 24V |
0 |
|
规格书 |
A6KS | Tape & Reel (TR) | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -30°C ~ 80°C |
|
76PRB12STSWITCH PIANO DIP SPST 0.15A 30V |
0 |
|
规格书 |
76 | Tube | Active | SPST | 12 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
P65SMT103DIP ROTARY SWITCH P60 10MM |
0 |
|
- |
P65 | Bulk | Active | Hexadecimal | 16 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -60°C ~ 125°C |
|
P36102SW ROTARY DIP BCD COMP 0.1A 24V |
0 |
|
规格书 |
P36 | Tube | Active | BCD Complement | 10 | 100mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.143" (3.63mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -50°C ~ 125°C |
|
P36101SWITCH ROTARY DIP BCD 0.1A 24V |
0 |
|
规格书 |
P36 | Tube | Active | BCD | 10 | 100mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.143" (3.63mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -50°C ~ 125°C |
|
|
1825008-5SW ROTARY DIP BCD COMP 0.4VA 20V |
0 |
|
规格书 |
DR | Tube | Obsolete | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
P60AS703SWITCH ROTARY DIP HEX 0.15A 24V |
0 |
|
- |
P60AS | Tube | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Stainless Steel | Gold | 0.244" (6.20mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
PT65701SWITCH ROTARY DIP BCD 0.15A 24V |
0 |
|
规格书 |
PT65 | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65724SWITCH ROTARY DIP BCD 0.15A 24V |
0 |
|
规格书 |
PT65 | Tube | Active | BCD | 6 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65512SWITCH ROTARY DIP BCD 0.15A 24V |
0 |
|
规格书 |
PT65 | Tube | Active | BCD | 4 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.469" (11.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65506SW ROTARY DIP HEX COMP 0.15A 24V |
0 |
|
规格书 |
PT65 | Tube | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.469" (11.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65705SW ROTARY DIP GRY CODE 0.15A 24V |
0 |
|
规格书 |
PT65 | Tube | Active | Gray Code | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65305SW ROTARY DIP GRY CODE 0.15A 24V |
0 |
|
规格书 |
PT65 | Tube | Active | Gray Code | 16 | 150mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
FR01AC16PB-SSW ROTARY DIP HEX COMP 0.1A 5V |
0 |
|
规格书 |
FR01 | Tube | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 1.104" (28.05mm) | Panel Mount | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

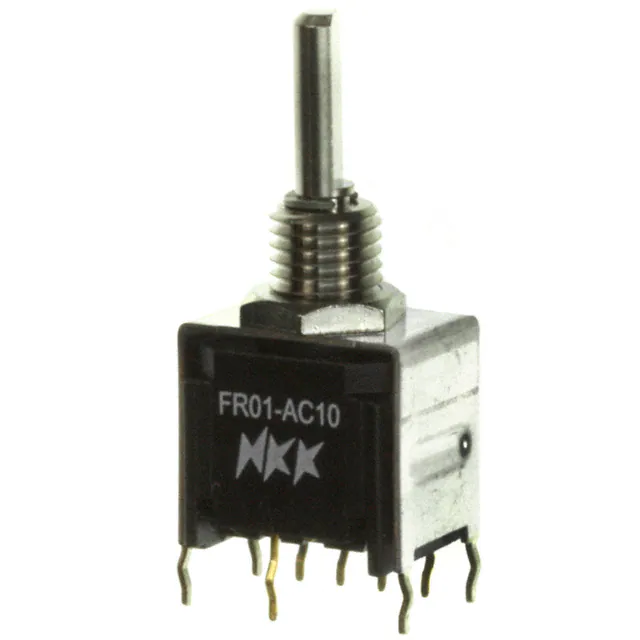

FR01AC10PBSW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
规格书 |
FR01 | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 1.104" (28.05mm) | Panel Mount | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
P36SMTSG86DIP ROTARY SWITCH P25 7MM LOW |
0 |
|
规格书 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
78F02RATSWITCH SLIDE DIP DPST 0.15A 30V |
0 |
|
规格书 |
78 | Tube | Active | DPST | 2 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
P36803DIP ROTARY SWITCH P25 7MM LOW |
0 |
|
规格书 |
P36 | Bulk | Active | Hexadecimal | 16 | 100mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.143" (3.63mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
