DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P36301VDIP ROTARY SWITCH P25 7MM LOW |
0 |
|
- |
P36 | Bulk | Active | BCD | 10 | 100mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.143" (3.63mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
|
P36S303DIP ROTARY SWITCH P25 7MM LOW |
0 |
|
规格书 |
P36 | Bulk | Active | Hexadecimal | 16 | 100mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.151" (3.84mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
78HJ03GWTSWITCH SLIDE DIP SPDT 0.15A 30V |
0 |
|
规格书 |
78H | Tube | Active | SPDT | 3 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DRW10CRASW ROTARY DIP BCD COMP 0.4VA 20V |
0 |
|
规格书 |
DR | Tube | Obsolete | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
78B12RATSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
规格书 |
78 | Tube | Active | SPST | 12 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
P36SMJ103DIP ROTARY SWITCH P25 7MM LOW |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
P60A702DIP ROTARY SWITCH P60 10MM |
0 |
|
规格书 |
P60A | Bulk | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Stainless Steel | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

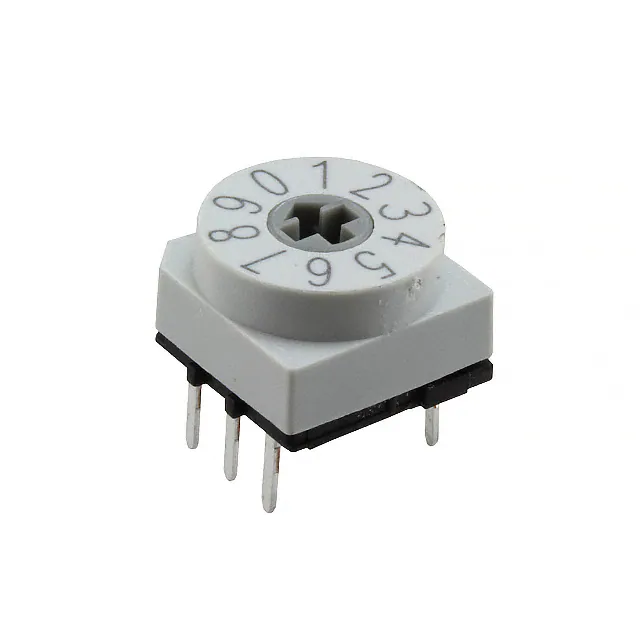

P65THR701SWITCH ROTARY DIP BCD 0.2A 50V |
0 |
|
规格书 |
P65 | Tube | Active | BCD | 10 | 200mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -60°C ~ 125°C |
|
|
P36THR301L254SWITCH ROTARY DIP TH |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
78H01SRATSWITCH SLIDE DIP 4PST 0.15A 30V |
0 |
|
规格书 |
78 | Tube | Active | 4PST | 1 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
RM3HA10RVSWITCH ROTARY DIP BCD 0.025A 24V |
0 |
|
- |
RM | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.224" (5.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 80°C |
|
|
P60AS702DIP ROTARY SWITCH P60 10MM |
0 |
|
规格书 |
P60AS | Bulk | Active | BCD | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Stainless Steel | Gold | 0.244" (6.20mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
7-435470-1SW TOGGLE DIP SPDT 0.025A 24V |
0 |
|
规格书 |
7000 | Tube | Active | SPDT | 1 | 25mA | 24VDC | Toggle | Raised | Copper Alloy | Gold | 0.460" (11.68mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
|
78F02SRATSWITCH SLIDE DIP DPST 0.15A 30V |
0 |
|
规格书 |
78 | Tube | Active | DPST | 2 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
P36803L254SWITCH ROTARY DIP HEX 0.1A 24V |
0 |
|
规格书 |
P36 | Tube | Active | Hexadecimal | 16 | 100mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -50°C ~ 125°C |
|
|
78K01STSWITCH SLIDE DIP DPDT 0.15A 30V |
0 |
|
规格书 |
78 | Tube | Active | DPDT | 1 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
78F05SRATSWITCH SLIDE DIP DPST 0.15A 30V |
0 |
|
规格书 |
78 | Tube | Active | DPST | 5 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
FR01AR16HB-06XL-WSWITCH ROTARY DIP HEX 0.1A 5V |
0 |
|
规格书 |
FR01 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.433" (11.00mm) | Panel Mount, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
|
FR01AR16HSWITCH ROTARY DIP HEX 0.1A 5V |
0 |
|
规格书 |
FR01 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.433" (11.00mm) | Panel Mount, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
P65THR703SWITCH ROTARY DIP HEX 0.2A 50V |
0 |
|
规格书 |
P65 | Tube | Active | Hexadecimal | 16 | 200mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -60°C ~ 125°C |
