DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6D-0103SWITCH SLIDE DIP SPST 0.03A 30V |
0 |
|
规格书 |
A6D | Tray | Active | SPST | 10 | 30mA | 30VDC | Slide (Standard) | Raised | - | Gold | 0.213" (5.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|
78H01RATSWITCH SLIDE DIP 4PST 0.15A 30V |
0 |
|
规格书 |
78 | Tube | Active | 4PST | 1 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CD10CM0SBRSW ROTARY DIP BCD COMP 0.4VA 20V |
0 |
|
规格书 |
CD | Tape & Reel (TR) | Active | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.168" (4.27mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
1977105-1SWITCH SLIDE DIP SPST 0.01A 5V |
0 |
|
规格书 |
STR | Tube | Obsolete | SPST | 2 | 10mA | 5VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.244" (6.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
DHN10TVTRDIP SWITCH IKH HALF PITCH |
0 |
|
- |
DHN | Bulk | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.059" (1.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
435802-2SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
规格书 |
7000 | Tube | Active | SPST | 3 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
CRD16RL1CBSWITCH ROTARY DIP HEX 0.4VA 20V |
0 |
|
规格书 |
CRD | Tray | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|
|
78J01RATSWITCH SLIDE DIP SPDT 0.15A 30V |
0 |
|
规格书 |
78 | Tube | Active | SPDT | 1 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

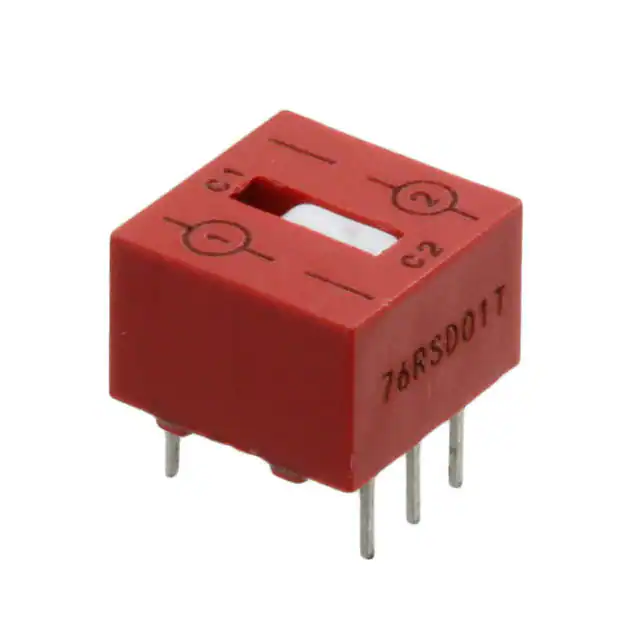

76RSD01TSWITCH ROCKER DIP DPDT 0.15A 30V |
0 |
|
规格书 |
76 | Tube | Active | DPDT | 1 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.267" (6.78mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
IKN0200000SWITCH SLIDE DIP SPST 0.1A 24V |
3 |
|
规格书 |
IKN | Tube | Obsolete | SPST | 2 | 100mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.157" (4.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 100°C |
|
|
ARE103.3KSWITCH SLIDE DIP SPST 0.1A 24V |
0 |
|
- |
ARE | Tube | Obsolete | SPST | 10 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
78B05RATSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
规格书 |
78 | Tube | Active | SPST | 5 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
78HJ02GWTSWITCH SLIDE DIP SPDT 0.15A 30V |
0 |
|
规格书 |
78H | Tube | Active | SPDT | 2 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
78RB04SRATSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
规格书 |
78 | Tube | Active | SPST | 4 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6KS-164RF-R100SWITCH ROTARY DIP HEX 0.025A 24V |
0 |
|
规格书 |
A6KS | Tape & Reel (TR) | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|
A6KS-164RS-R100SWITCH ROTARY DIP HEX 0.025A 24V |
0 |
|
规格书 |
A6KS | Tape & Reel (TR) | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|

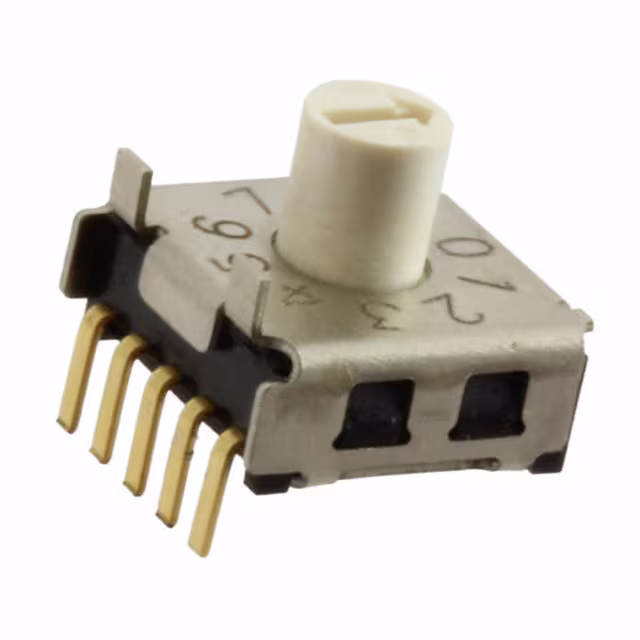

A6KSV-104RS-R100SWITCH ROTARY DIP BCD 0.025A 24V |
0 |
|
规格书 |
A6KS | Tape & Reel (TR) | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.293" (7.45mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|
|
78J03STSWITCH SLIDE DIP SPDT 0.15A 30V |
0 |
|
规格书 |
78 | Tube | Active | SPDT | 3 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
78F05STSWITCH SLIDE DIP DPST 0.15A 30V |
0 |
|
规格书 |
78 | Tube | Active | DPST | 5 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
ARF0810KSWITCH SLIDE DIP SPST 0.1A 24V |
0 |
|
- |
ARF | Tube | Obsolete | SPST | 8 | 100mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
