DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EDS10SGRSTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
9 |
|
规格书 |
EDS | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
A6SN-5101SWITCH SLIDE DIP SPST 0.025A 24V |
12 |
|
规格书 |
A6SN | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6SN-7102-PSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
A6SN | Tape & Reel (TR) | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
SD12H0SBSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
规格书 |
SD | Tube | Active | SPST | 12 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
A6SN-7101-PSWITCH SLIDE DIP SPST 0.025A 24V |
14 |
|
规格书 |
A6SN | Tape & Reel (TR) | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

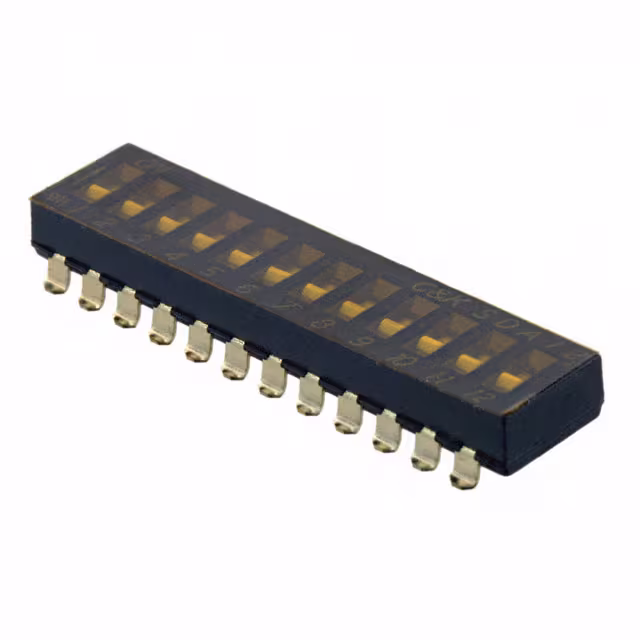

SDA12H0SBSWITCH SLIDE DIP SPST 0.025A 24V |
2 |
|
规格书 |
SDA | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
EDSP06SGRNNTU04SWITCH PIANO DIP SPST 0.025A 24V |
3 |
|
规格书 |
EDSP | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
RD07A16RVBTSWITCH ROTARY DIP HEX 0.1A 50V |
0 |
|
规格书 |
RD07 | Tube | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.291" (7.40mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
429427520917SW ROTARY DIP HEX COMP 0.15A 24V |
15 |
|
规格书 |
WS-ROTU | Tube | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
EDSP10SGLNNTU04SWITCH PIANO DIP SPST 0.025A 24V |
1 |
|
规格书 |
EDSP | Tube | Active | SPST | 10 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
A6RS-102RSSWITCH ROTARY DIP BCD 0.025A 24V |
0 |
|
规格书 |
A6RS | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | - | - | 0.472" (12.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 80°C |
|
SMR7010C-1SWITCH ROTARY DIP BCD 0.03A 15V |
15 |
|
规格书 |
SMR | Tube | Active | BCD | 10 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
428427520916SWITCH ROTARY DIP HEX 0.15A 24V |
24 |
|
规格书 |
WS-ROTU | Tube | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
A6HF-0102SWITCH SLIDE DIP SPST 0.025A 24V |
1 |
|
规格书 |
A6HF | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
428527520917SW ROTARY DIP HEX COMP 0.15A 24V |
4 |
|
规格书 |
WS-ROTV | Tube | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
FR02KC10P-RSW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
规格书 |
FR02 | Tape & Reel (TR) | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.430" (10.92mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
A6K-162RSSWITCH ROTARY DIP HEX 0.025A 24V |
0 |
|
规格书 |
A6K | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 80°C |
|
A6HR-0104-PMSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
规格书 |
A6HR | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
|
A6A-10CFSW ROTARY DIP BCD COMP 0.1A 28V |
18 |
|
规格书 |
A6A | Tray | Active | BCD Complement | 10 | 100mA | 28VDC | Rotary for Tool | Flush, Recessed | - | - | 0.244" (6.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -10°C ~ 70°C |
|
CRD16RM0SBRSWITCH ROTARY DIP HEX 0.4VA 20V |
0 |
|
规格书 |
CRD | Tape & Reel (TR) | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.271" (6.88mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
