DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
90HBJ07PTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
90HB | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
78B06RATSWITCH SLIDE DIP SPST 0.15A 30V |
16 |
|
规格书 |
78 | Tube | Active | SPST | 6 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
94HCB08RATSWITCH ROTARY DIP OCTAL 0.1A 50V |
21 |
|
规格书 |
94H | Tube | Active | Octal | 8 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|

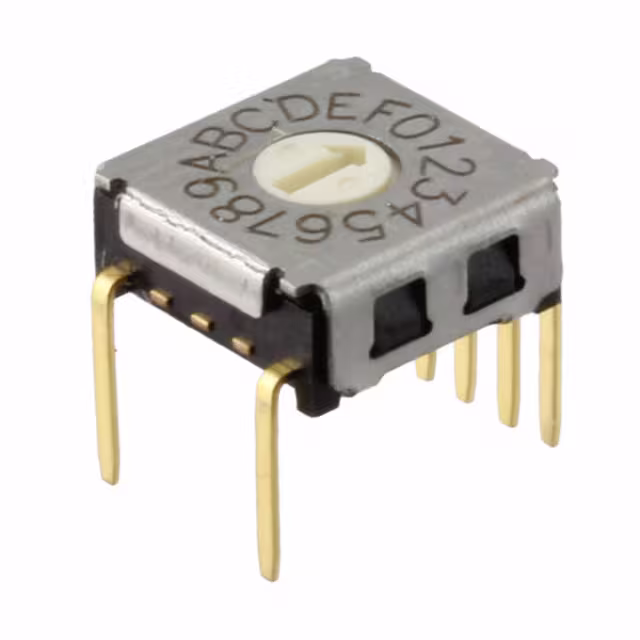

A6K-164RFSWITCH ROTARY DIP HEX 0.025A 24V |
0 |
|
规格书 |
A6K | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.118" (3.00mm) | Through Hole | PC Pin | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|
P36S102SW ROTARY DIP BCD COMP 0.1A 24V |
6 |
|
- |
P36S | Tube | Active | BCD Complement | 10 | 100mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.152" (3.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -30°C ~ 90°C |
|

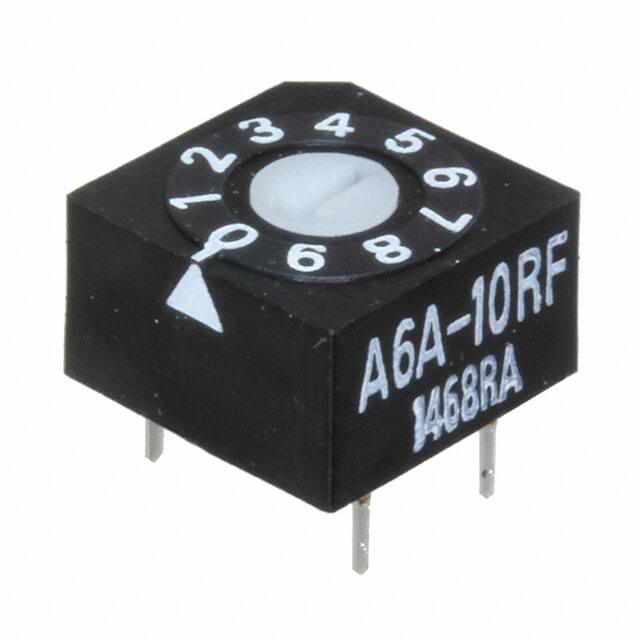

A6A-10RFSWITCH ROTARY DIP BCD 0.1A 28V |
5 |
|
规格书 |
A6A | Tray | Active | BCD | 10 | 100mA | 28VDC | Rotary for Tool | Flush, Recessed | - | - | 0.244" (6.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -10°C ~ 70°C |
|
78HJ04GWTSWITCH SLIDE DIP SPDT 0.15A 30V |
20 |
|
规格书 |
78H | Tube | Active | SPDT | 4 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
A6KSV-104RSSWITCH ROTARY DIP BCD 0.025A 24V |
0 |
|
规格书 |
A6KS | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.293" (7.45mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|

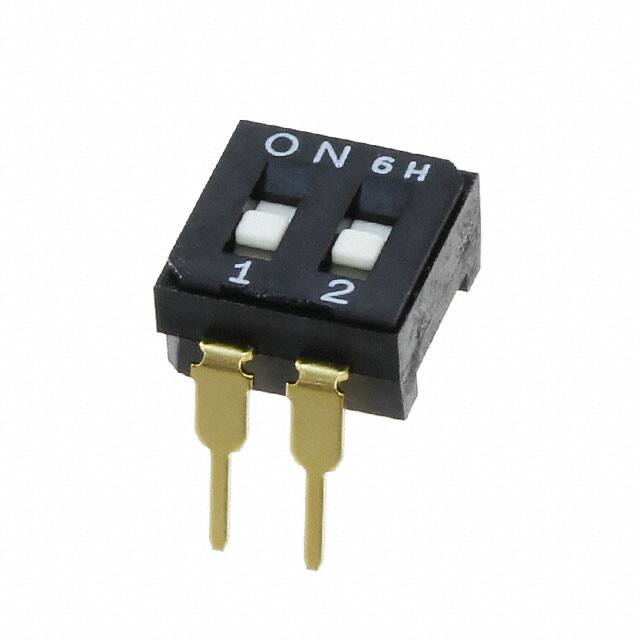

CFS-0201MCSWITCH SLIDE DIP SPST 0.1A 6V |
0 |
|
规格书 |
CFS | Tube | Active | SPST | 2 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SDA07H0BDSWITCH SLIDE DIP SPST 0.025A 24V |
9 |
|
规格书 |
SDA | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.183" (4.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
206-9RASTSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
规格书 |
206RA | Tube | Active | SPST | 9 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
A6TN-5101SWITCH SLIDE DIP SPST 0.025A 24V |
20 |
|
规格书 |
A6TN | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
KT10EHSWITCH SLIDE DIP SPST 0.025A 24V |
1 |
|
规格书 |
KT | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

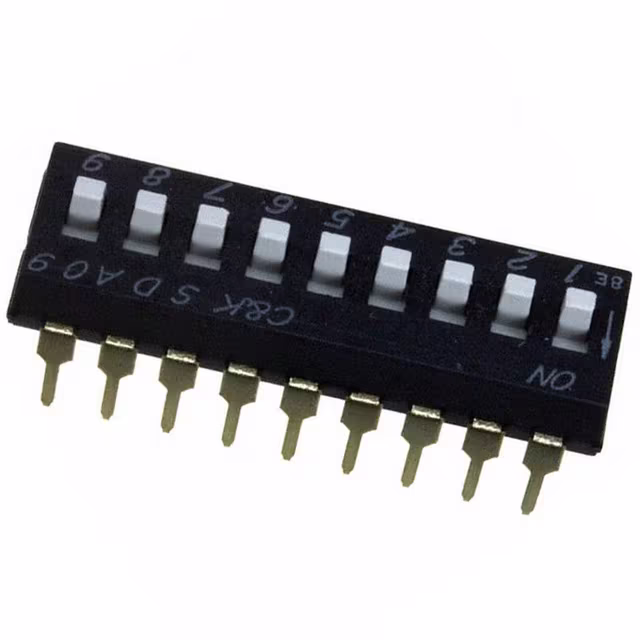

SDA09H1BDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
SDA | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

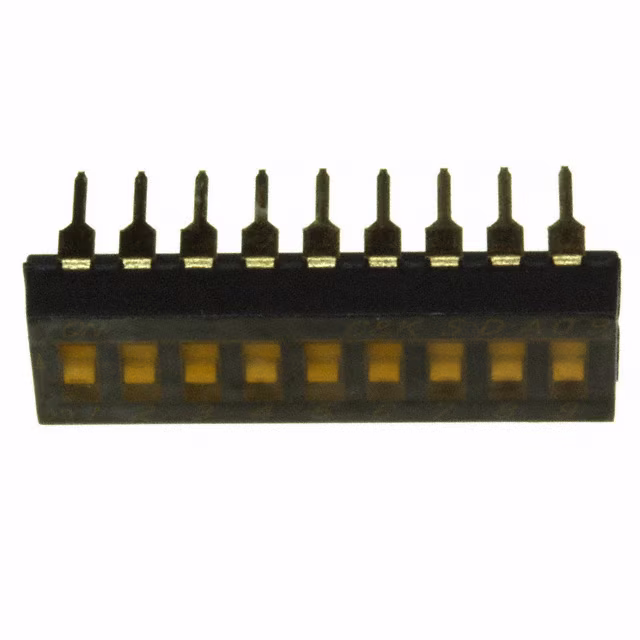

SDA09H0BSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
SDA | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.183" (4.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
KAS1112ESWITCH SLIDE DIP SPST 0.025A 24V |
18 |
|
规格书 |
KAS | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CFS-0502MBSWITCH SLIDE DIP SPST 0.1A 6V |
0 |
|
规格书 |
CFS | Tube | Active | SPST | 5 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.169" (4.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CFS-0500MASWITCH SLIDE DIP SPST 0.1A 6V |
0 |
|
规格书 |
CFS | Tube | Active | SPST | 5 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

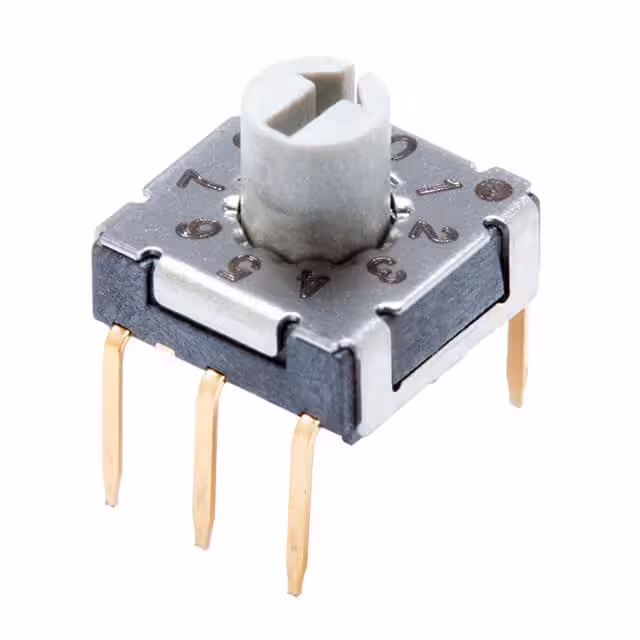

RDS-10S-7229-R-DSWITCH ROTARY DIP BCD 0.1A 50V |
0 |
|
规格书 |
RDS-7229-D | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.232" (5.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
A6TN-9101SWITCH SLIDE DIP SPST 0.025A 24V |
12 |
|
规格书 |
A6TN | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
