DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6T-0104SWITCH SLIDE DIP SPST 0.025A 24V |
4 |
|
规格书 |
A6T | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6D-3103SWITCH SLIDE DIP SPST 0.03A 30V |
0 |
|
规格书 |
A6D | Tube | Active | SPST | 3 | 30mA | 30VDC | Slide (Standard) | Raised | - | Gold | 0.213" (5.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|
90B08SLTSWITCH SLIDE DIP SPST 0.025A 24V |
15 |
|
规格书 |
90B | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Position Identification Line, Tape Seal | -40°C ~ 85°C |
|
A6DR-2100SWITCH PIANO DIP SPST 0.03A 30V |
0 |
|
规格书 |
A6DR | Bulk | Active | SPST | 2 | 30mA | 30VDC | Piano | Raised | - | Gold | 0.292" (7.41mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|

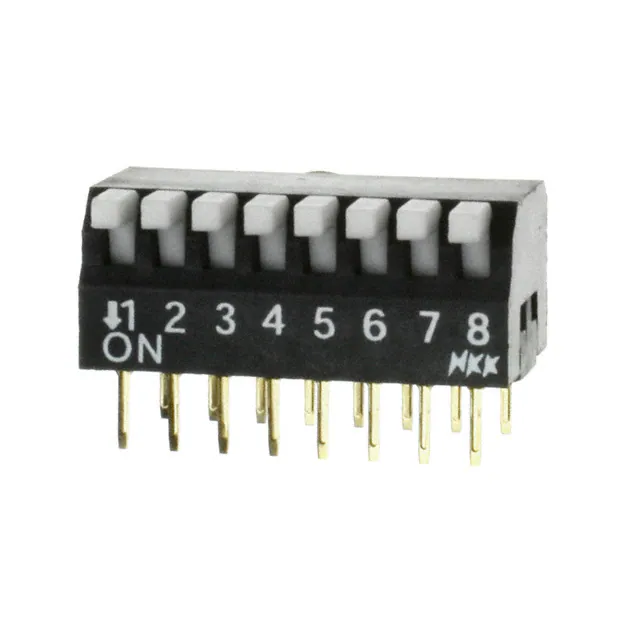

JS0308PP4SWITCH PIANO DIP SPST 0.025A 24V |
5 |
|
规格书 |
JS | Bulk | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.362" (9.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
|
A6S-9101-HSWITCH SLIDE DIP SPST 0.025A 24V |
20 |
|
规格书 |
A6S-H | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
SDA10H0SBSWITCH SLIDE DIP SPST 0.025A 24V |
20 |
|
规格书 |
SDA | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
428521420910SWITCH ROTARY DIP BCD 0.15A 24V |
15 |
|
规格书 |
WS-ROSV | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.555" (14.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
428521420916SWITCH ROTARY DIP HEX 0.15A 24V |
0 |
|
规格书 |
WS-ROSV | Tube | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.555" (14.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
418217270910ASWITCH SLIDE DIP SPST 0.025A 24V |
3 |
|
规格书 |
WS-DITU | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
A6E-8104-NSWITCH SLIDE DIP SPST 0.025A 24V |
5 |
|
规格书 |
A6E-N | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.277" (7.05mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6E-7101-NSWITCH SLIDE DIP SPST 0.025A 24V |
24 |
|
规格书 |
A6E-N | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.230" (5.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6HR-6104SWITCH PIANO DIP SPST 0.025A 24V |
9 |
|
规格书 |
A6HR | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
|
A6E-8101-NSWITCH SLIDE DIP SPST 0.025A 24V |
21 |
|
规格书 |
A6E-N | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.230" (5.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
FR02FC10P-SSW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
规格书 |
FR02 | Tube | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

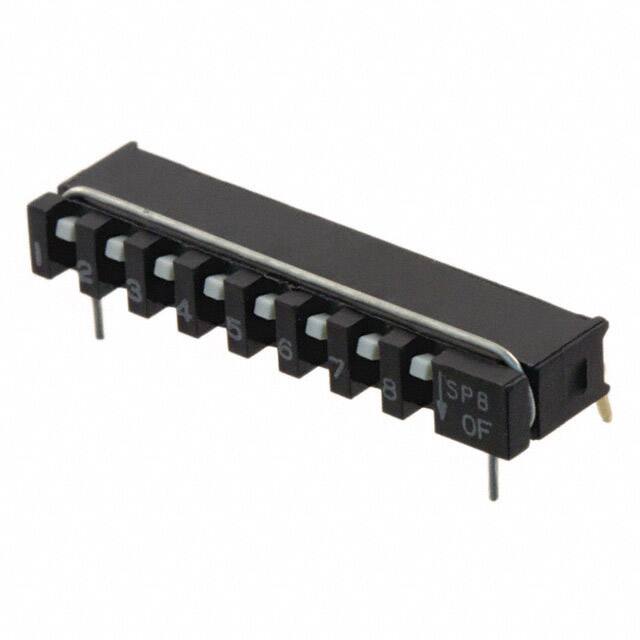

SPA08ABSWITCH SLIDE DIP SPST 0.01A 20V |
1 |
|
规格书 |
SPA | Tube | Active | SPST | 8 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 60°C |
|
78H02TSWITCH SLIDE DIP 4PST 0.15A 30V |
0 |
|
规格书 |
78 | Tube | Active | 4PST | 2 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
78H02STSWITCH SLIDE DIP 4PST 0.15A 30V |
0 |
|
规格书 |
78 | Tube | Active | 4PST | 2 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6KV-162RSSWITCH ROTARY DIP HEX 0.025A 24V |
0 |
|
规格书 |
A6K | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 80°C |
|
94HCB16WTSWITCH ROTARY DIP HEX 0.1A 50V |
22 |
|
规格书 |
94H | Tube | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
