DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
428527420910SWITCH ROTARY DIP BCD 0.15A 24V |
39 |
|
规格书 |
WS-ROTV | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
A6E-6101-NSWITCH SLIDE DIP SPST 0.025A 24V |
49 |
|
规格书 |
A6E-N | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.230" (5.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
78G01TSWITCH SLIDE DIP 3PST 0.15A 30V |
92 |
|
规格书 |
78 | Tube | Active | 3PST | 1 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
78RB04TSWITCH SLIDE DIP SPST 0.15A 30V |
64 |
|
规格书 |
78 | Tube | Active | SPST | 4 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

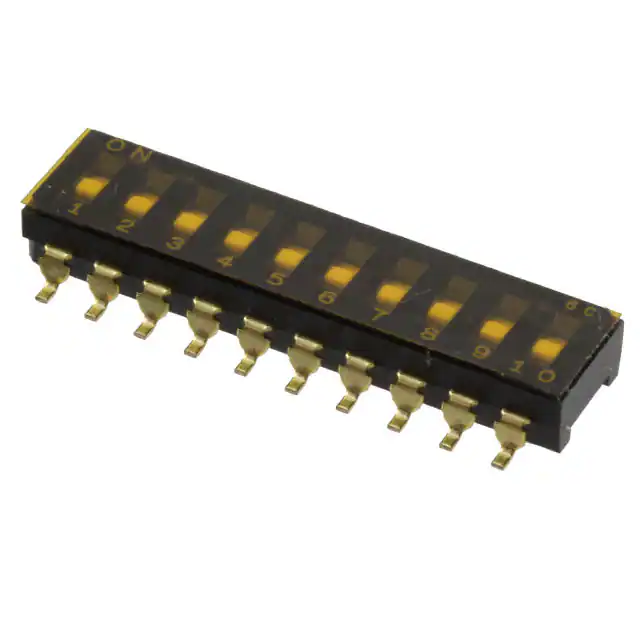

CFS-1000MBSWITCH SLIDE DIP SPST 0.1A 6V |
43 |
|
规格书 |
CFS | Tube | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
418217270908ASWITCH SLIDE DIP SPST 0.025A 24V |
48 |
|
规格书 |
WS-DITU | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

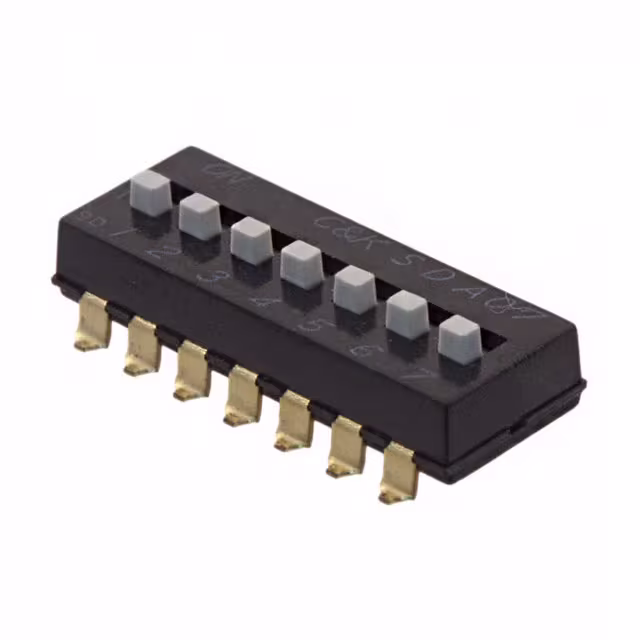

SDA07H1SBDSWITCH SLIDE DIP SPST 0.025A 24V |
80 |
|
规格书 |
SDA | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
FR02KR10P-SSWITCH ROTARY DIP BCD 0.1A 5V |
50 |
|
规格书 |
FR02 | Tube | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.430" (10.92mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
FR01KC10P-W-SSW ROTARY DIP BCD COMP 0.1A 5V |
40 |
|
规格书 |
FR01 | Tube | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.426" (10.82mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
428427320916SWITCH ROTARY DIP HEX 0.15A 24V |
66 |
|
规格书 |
WS-ROTU | Tube | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
428427320911SW ROTARY DIP BCD COMP 0.15A 24V |
45 |
|
规格书 |
WS-ROTU | Tube | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
429427520910SWITCH ROTARY DIP BCD 0.15A 24V |
50 |
|
规格书 |
WS-ROTU | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
JS0304PP4-SSWITCH PIANO DIP SPST 0.025A 24V |
39 |
|
规格书 |
JS | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.362" (9.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
|
A6T-8101SWITCH SLIDE DIP SPST 0.025A 24V |
94 |
|
规格书 |
A6T | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
428521420917SW ROTARY DIP HEX COMP 0.15A 24V |
39 |
|
规格书 |
WS-ROSV | Tube | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.555" (14.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
78RB06TSWITCH SLIDE DIP SPST 0.15A 30V |
52 |
|
规格书 |
78 | Tube | Active | SPST | 6 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
428547320917SW ROTARY DIP HEX COMP 0.1A 42V |
70 |
|
规格书 |
WS-ROTV | Tube | Active | Hexadecimal Complement | 16 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
428547320910SWITCH ROTARY DIP BCD 0.1A 42V |
54 |
|
规格书 |
WS-ROTV | Tube | Active | BCD | 10 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
76SB07TSWITCH ROCKER DIP SPST 0.15A 30V |
38 |
|
规格书 |
76 | Tube | Active | SPST | 7 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
428427520911SW ROTARY DIP BCD COMP 0.15A 24V |
100 |
|
规格书 |
WS-ROTU | Tube | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
