DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

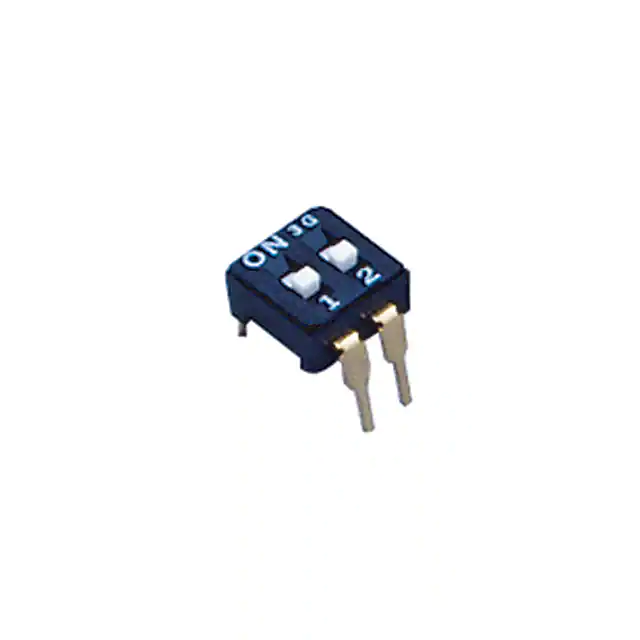

CFS-0202MCSWITCH SLIDE DIP SPST 0.1A 6V |
40 |
|
规格书 |
CFS | Tube | Active | SPST | 2 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.201" (5.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KT08EHSWITCH SLIDE DIP SPST 0.025A 24V |
31 |
|
规格书 |
KT | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KR05ESWITCH SLIDE DIP SPST 0.025A 24V |
77 |
|
规格书 |
KR | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

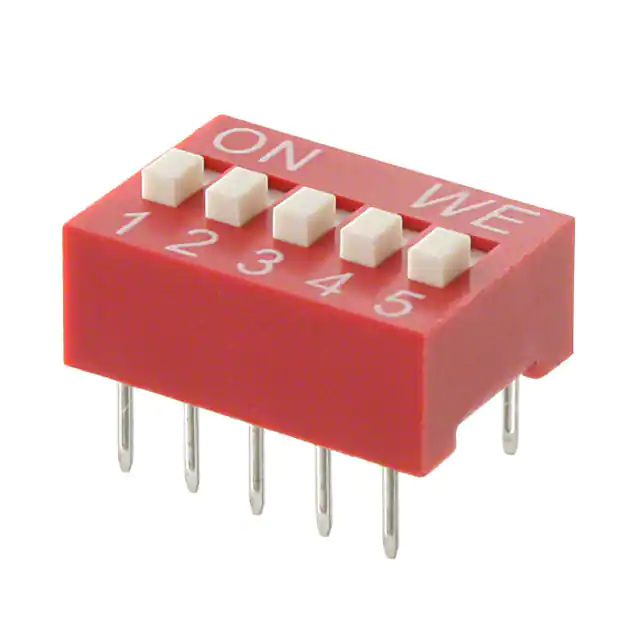

418117270905SWITCH SLIDE DIP SPST 0.025A 24V |
48 |
|
规格书 |
WS-DITV | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

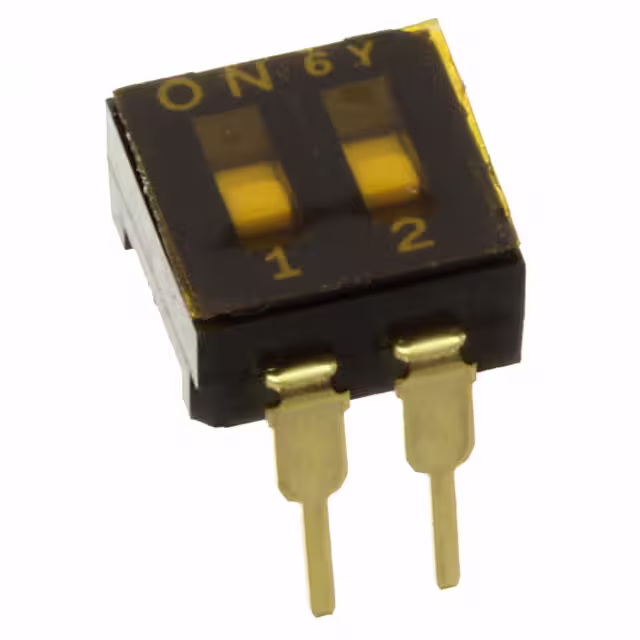

CFS-0200MCSWITCH SLIDE DIP SPST 0.1A 6V |
85 |
|
规格书 |
CFS | Tube | Active | SPST | 2 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
7829H-1-023LFSWITCH ROTARY DIP SPDT 0.1A 16V |
96 |
|
规格书 |
7829 | Tube | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Raised | - | - | 0.180" (4.57mm) | Through Hole | PC Pin | - | Yes | - | -55°C ~ 125°C |
|
KR08RSWITCH SLIDE DIP SPST 0.025A 24V |
48 |
|
规格书 |
KR | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

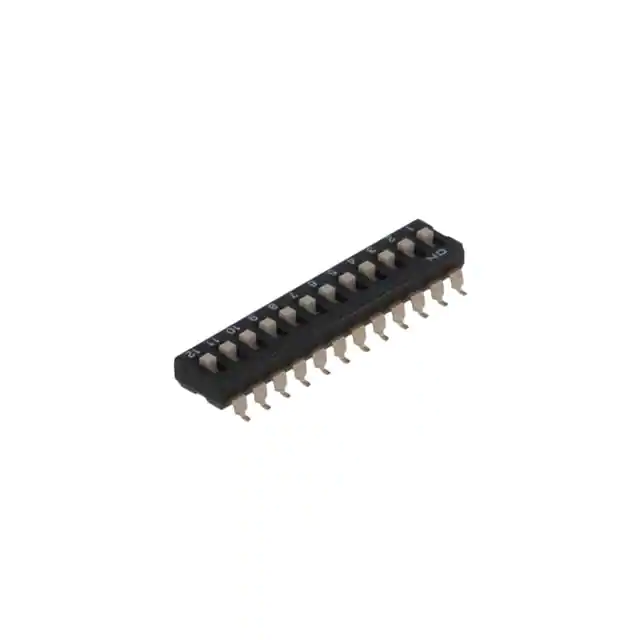

DS04-254-1-12BK-SMTSWITCH SLIDE DIP SPST 0.025A 24V |
40 |
|
规格书 |
DS04-254-SMT | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.189" (4.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
418117170910SWITCH SLIDE DIP SPST 0.025A 24V |
84 |
|
规格书 |
WS-DITV | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.224" (5.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
418117170908SWITCH SLIDE DIP SPST 0.025A 24V |
37 |
|
规格书 |
WS-DITV | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.224" (5.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
418127270904SWITCH SLIDE DIP SPST 0.025A 24V |
66 |
|
规格书 |
WS-DITV | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
418117170904SWITCH SLIDE DIP SPST 0.025A 24V |
43 |
|
规格书 |
WS-DITV | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.224" (5.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
RD10RA8CGTSW ROTARY DIP OCT COMP 0.15A 50V |
44 |
|
规格书 |
RD10 | Tube | Active | Octal Complement | 8 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
418127160904SWITCH SLIDE DIP SPST 0.025A 24V |
79 |
|
规格书 |
WS-DITV | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

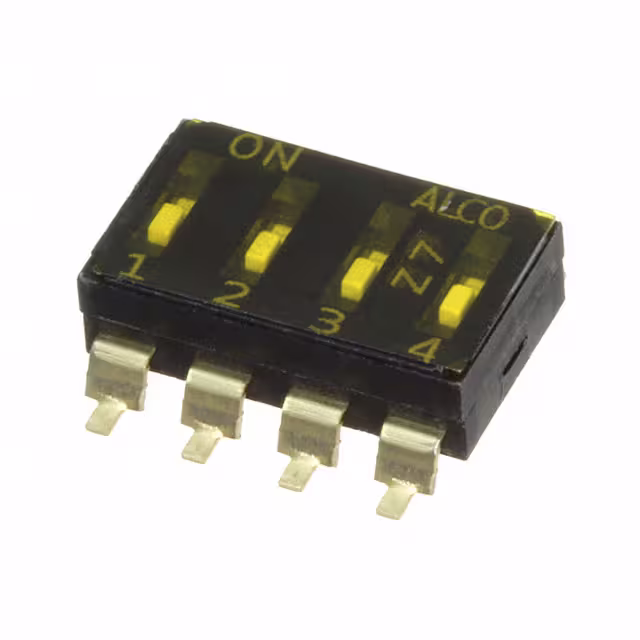

EDS04SGRSTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
73 |
|
规格书 |
EDS | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
A6T-3101SWITCH SLIDE DIP SPST 0.025A 24V |
85 |
|
规格书 |
A6T | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6T-4101SWITCH SLIDE DIP SPST 0.025A 24V |
71 |
|
规格书 |
A6T | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6FR-7104SWITCH PIANO DIP SPST 0.025A 24V |
81 |
|
规格书 |
A6FR | Tube | Active | SPST | 7 | 25mA | 24VDC | Piano | Raised | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6TN-6101SWITCH SLIDE DIP SPST 0.025A 24V |
85 |
|
规格书 |
A6TN | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
SDA05H1BDSWITCH SLIDE DIP SPST 0.025A 24V |
41 |
|
规格书 |
SDA | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
